Replacing The Ignition Module - Pitco SG Series Solstice Service Manual

Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

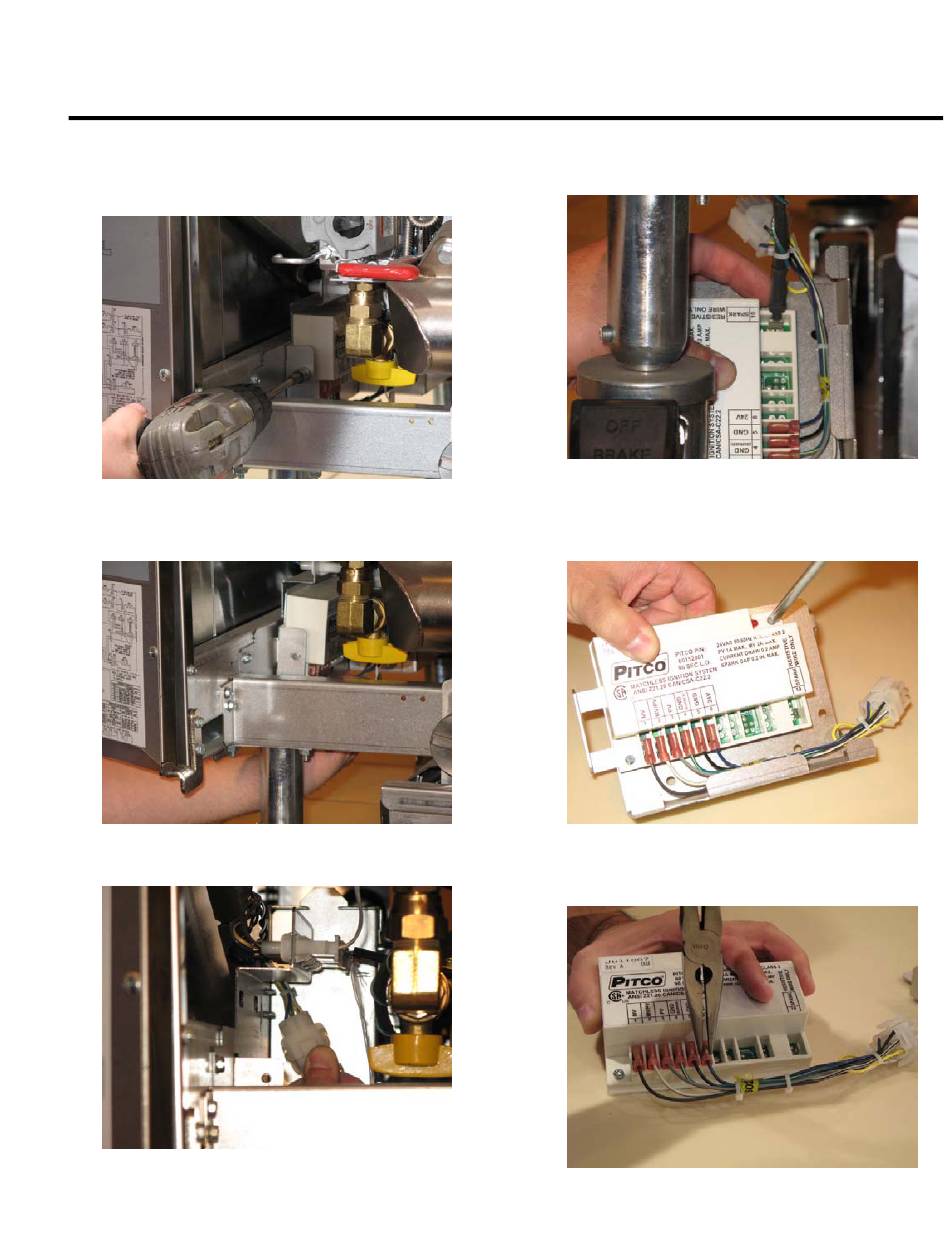

Replacing the Ignition Module
1. Remove one (1) screw, which hold the ignition
module, using a 5/16 inch socket.
2. Pull the module box and bracket toward the
front of the unit, and then to the right.
3. Disconnect the plug.
SG/SSH Series Service Manual
4. Remove the ignition wire.
5. Remove the two (2) screws, which hold the
module on the plate, using a Phillips
screwdriver.
6. Remove the harness pins using needle-nose
pliers.
7. Follow steps 1 through 6 in reverse.
24
