Removing The Solid State Wiring Harness - Pitco SG Series Solstice Service Manual

Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

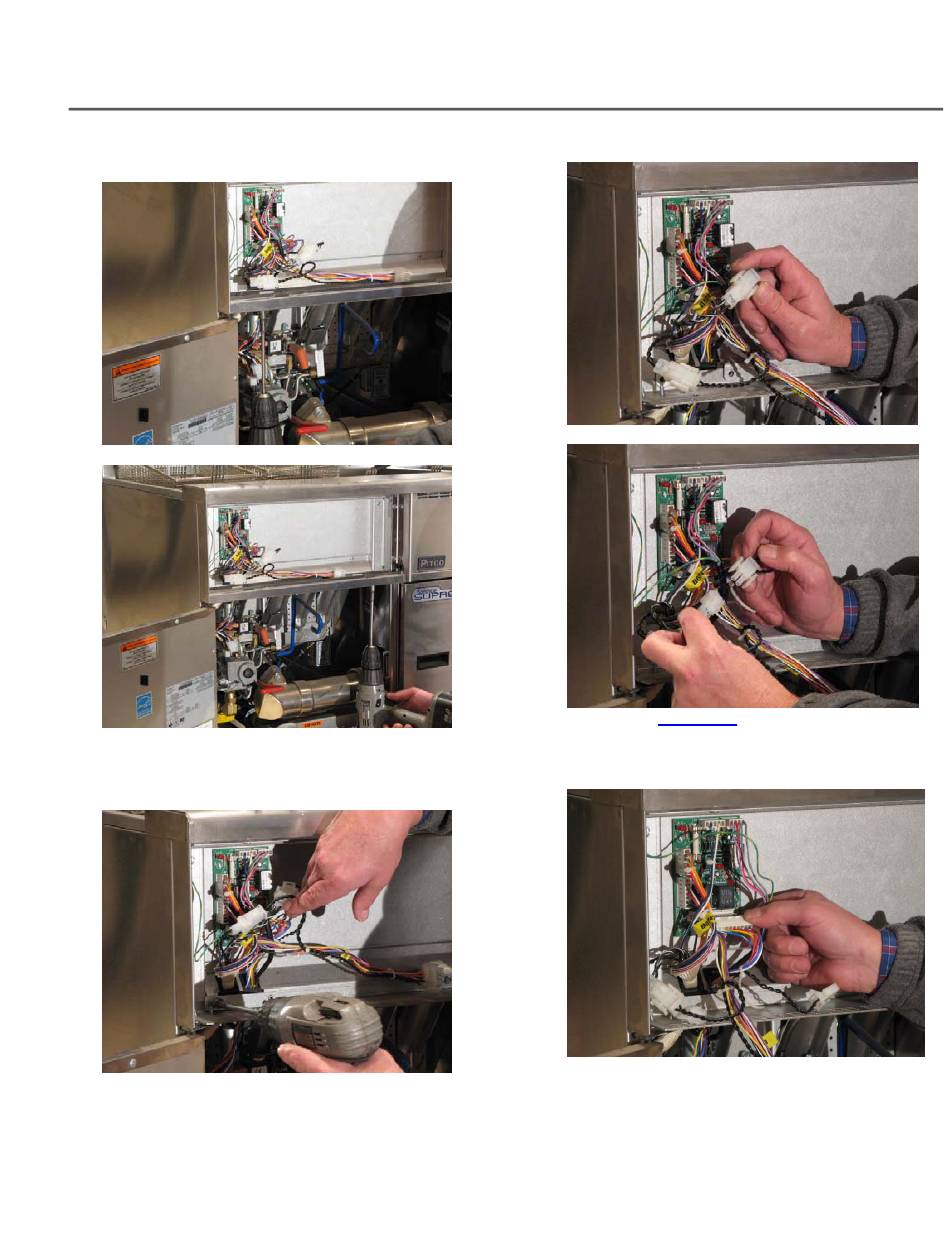

Removing the Solid State Wiring Harness
1. Remove the two (2) screws in the front panel
bottom holder using a 5/16 inch socket.
2. Remove the two (2) screws in the cable retainer
bracket using a 5/16 inch socket.
SG/SSH Series Service Manual
3. Disconnect the probe connection (J/P43).
4. Disconnect
board.
21
B6746601 from J/P33 on the relay
