DOMINATOR III SERIES SIDE STEPS PART NUMBER D361291 (B)
06-09 DODGE RAM 1500, 2500, 3500 MEGA CAB P/U 4DR 2/4WD
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY
PARTS DESCRIPTION
10
3/8" X 1 ¼" T-BOLTS
20
3/8" X 1 1/4" HEX BOLTS
30
3/8" HEX NUTS
30
3/8" LOCK WASHERS
42
3/8" FLAT WASHERS
1
D361291D DRIVER SIDE STEP
1
D361291P PASSENGER SIDE STEP
1
498302 DRIVER FRONT BRACKET
1
498362 DRIVER FRONT SUPPORT BRACKET
PASSENGER SIDE FRONT MOUNTING AND SUPPORT BRACKET

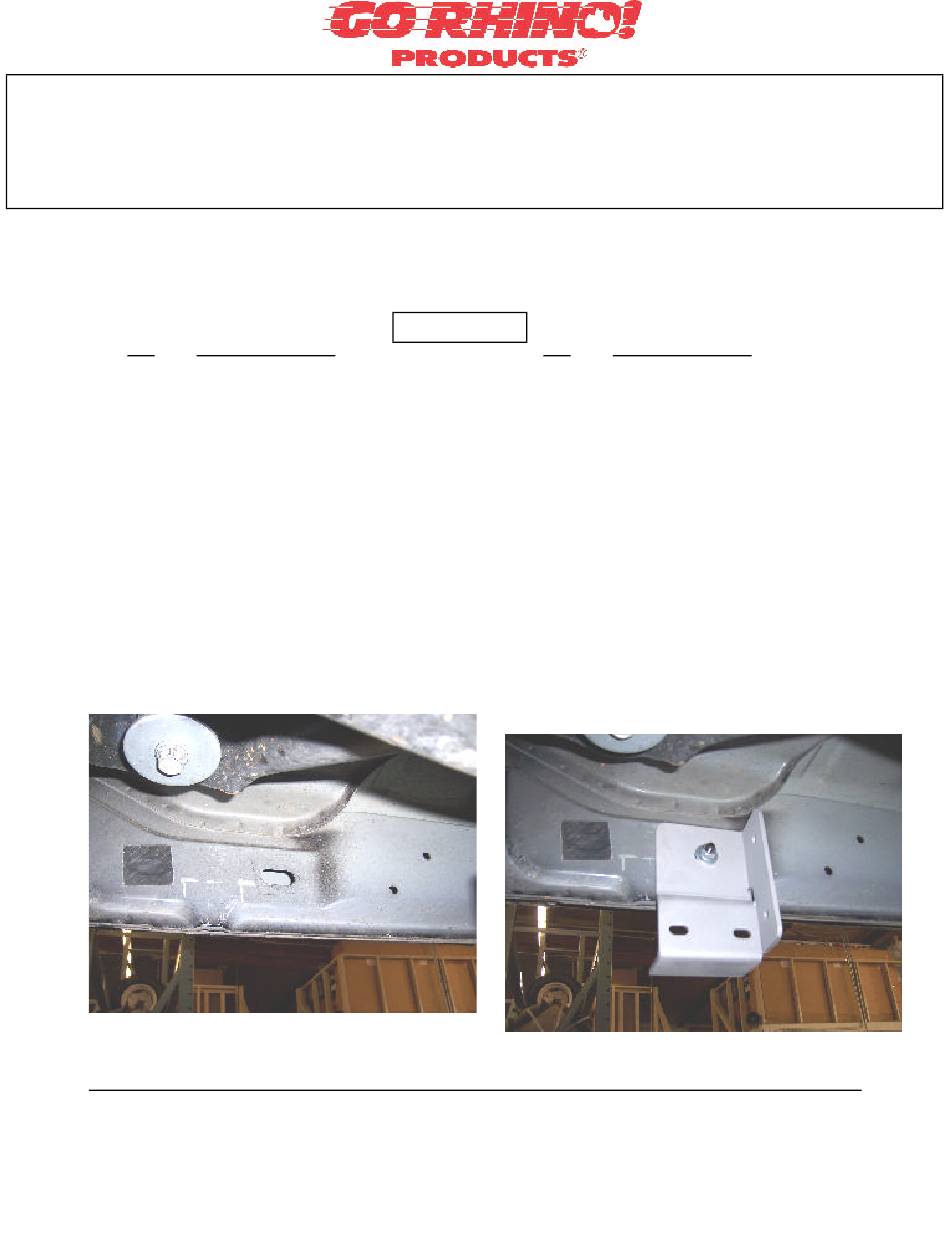

STEP-1 LOCATE AND REMOVE THE TAPE COVERING THE OBROUND HOLE IN THE BODY
ROCKER PANEL.
STEP-2 ATTACH 498304 PASSENGER FRONT MOUNTING BRACKET TO THE BODY ROCKER
PANEL USING THE 3/8" T-BOLT, WASHERS AND HEX NUT AS SHOWN.
INSTALLATION INSTRUCTIONS
PARTS LIST
1
QTY
PARTS DESCRIPTION
1
498502 DRIVER REAR BRACKET
1
498562 DRIVER REAR SUPPORT BRACKET
1
498304 PASSENGER FRONT BRACKET
1
498364 PASSENGER FRONT SUPPORT BRACKET
1
498504 PASSENGER REAR BRACKET
1
498564 PASSENGER REAR SUPPORT BRACKET
2
498124 DRIVER & PASSENGER CENTER BRACKETS
FODI7.003.I
Advertisement
Table of Contents
Related Manuals for Go Rhino D361291
Summary of Contents for Go Rhino D361291
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS DOMINATOR III SERIES SIDE STEPS PART NUMBER D361291 (B) 06-09 DODGE RAM 1500, 2500, 3500 MEGA CAB P/U 4DR 2/4WD Do not attempt to install this product on any vehicle other than the one it is designed for and listed above! - Page 2 STEP-3 LOCATE THE SQUARE HOLE IN THE UNDERSIDE OF THE BODY AT THE FRONT OF THE CAB. STEP-4 ATTACH 498364 PASSENGER SIDE FRONT SUPPORT BRACKET TO THE UNDER SIDE OF THE BODY AND TO THE FLANGE OF THE MOUNTING BRACKET USING THE 3/8” T-BOLT, 3/8” X 1 1/4”...
- Page 3 PASSENGER SIDE REAR MOUNTING BRACKET AND SUPPORT BRACKET STEP-7 LOCATE AND REMOVE THE TAPE COVERING THE OBROUND HOLE IN THE BODY ROCKER PANEL. STEP-8 ATTACH 498504 PASSENGER SIDE REAR MOUNTING BRACKET TO THE BODY ROCKER PANEL USING THE 3/8” T-BOLT, WASHERS AND NUTS AS SHOWN. STEP-9 LOCATE THE SQUARE HOLE IN THE UNDERSIDE OF THE BODY AT THE REAR OF THE STEP-10 ATTACH 498564 PASSENGER SIDE REAR SUPPORT BRACKET TO THE UNDER SIDE OF THE BODY AND TO THE FLANGE OF THE MOUNTING BRACKET USING THE 3/8”...
- Page 4 STEP-12 ALIGN THE SIDESTEP WITH THE BODY AND THEN TIGHTEN ALL MOUNTING NUTS AND BOLTS. STEP-13 REPEAT THE ABOVE STEPS FOR THE DRIVER SIDE BRACKETS AND SIDESTEP. FOR TECHNICAL OR WARRANTY INFORMATION CALL: TOLL FREE (888)427-4466 FAX (714)672-0278 GO RHINO! Products® 591 W. Apollo St. Brea, CA 92821 FODI7.003.I...
