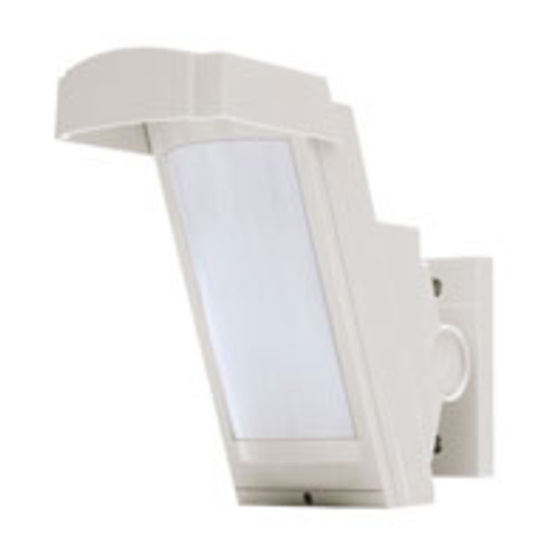

Wired, high mount outdoor detector
Hide thumbs Also See for HX-40:
Table of Contents

Advertisement

Quick Links

Download this manual
High Mount
High Mount
Outdoor Detector
Outdoor Detector
HX-40/40AM/
HX-40/40AM/
40DAM
40DAM
FEATURES
85°
3.0 m
12 m
CONTENTS
1-1 BEFORE YOUR OPERATION ............................... 1
1-2 PARTS IDENTIFICATION ...................................... 2
1-3 DETECTION AREA ................................................ 3
2-1 MOUNTING WITH THE BRACKET........................ 3
2-2 ADJUSTING THE VERTICAL ANGLE ................... 5
2-4 WIRING .................................................................. 6
1
INTRODUCTION
1-1
BEFORE YOUR OPERATION
Failure to follow the instructions provided with this indication and improper handling may cause
Warning
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
Caution
injury and/or property damage.
The check
mark indicates recommendation.
Warning
Do not repair or modify product
Mounting height.
2.5 to 3.0 m
(8.2 to 10 ft.)
WIRED MODEL
• 3.0 m high mount detection area (12 m)
• Unique pyro element
• Intelligent AND logic
• Dual signal processing logic
• Vegetation sway analysis logic
The nix
Keep product away from water
Keep the detector parallel to
the ground.
Parallel

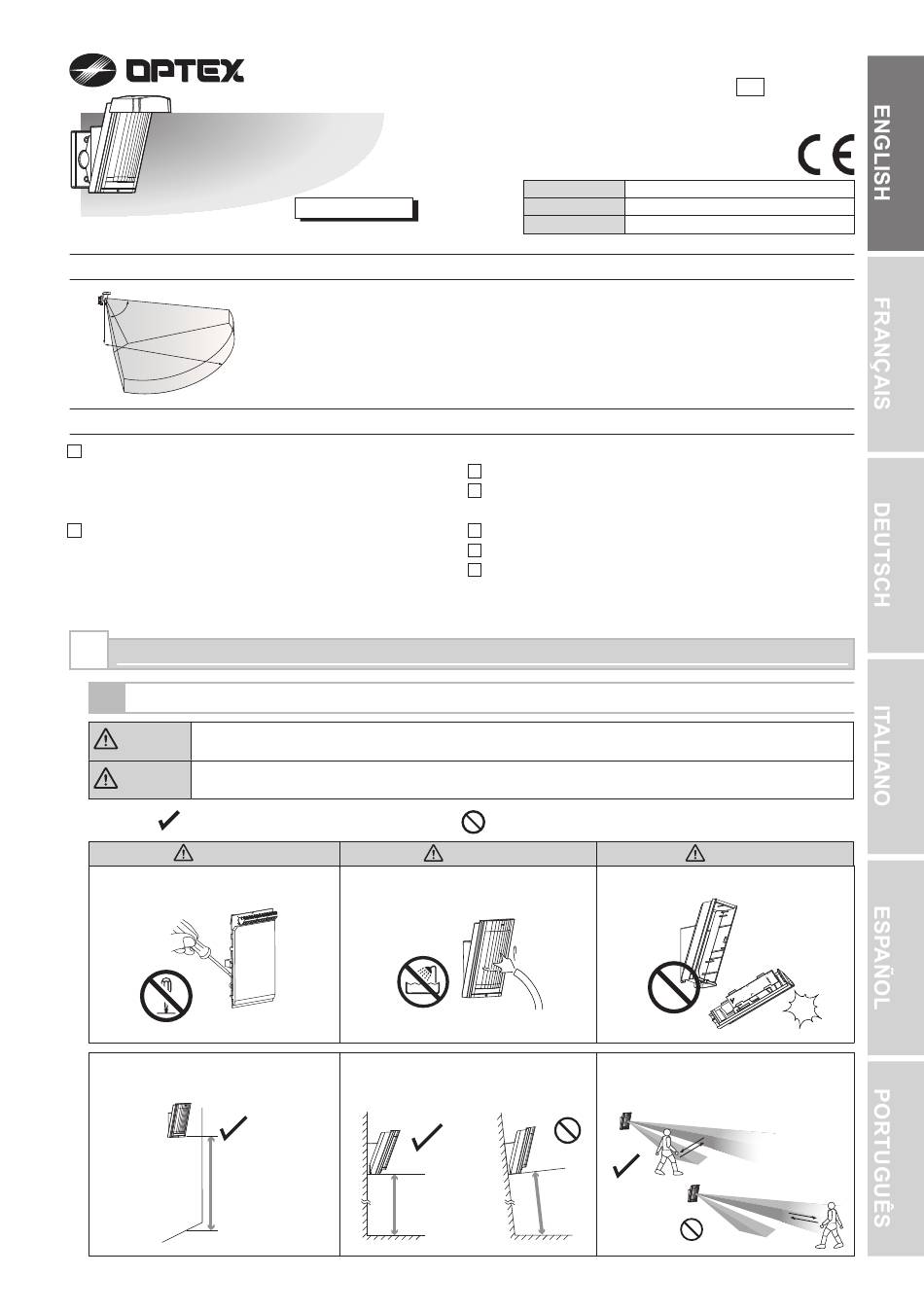

INSTALLATION INSTRUCTIONS
HX-40
HX-40AM
HX-40DAM
• Ideal detection area setting
• Digital anti-masking (AM/DAM model only)
• Microwave range selector (DAM model only)
2-5 WALL TAMPER (OPTION)..................................... 6
3 WALK TEST ................................................................. 7
4 SETTING
4-1 FUNCTION ............................................................. 8
5 AREA ADJUSTMENT ................................................ 10
6 LED INDICATION....................................................... 10
7-1 SPECIFICATIONS................................................ 11
7-2 DIMENSIONS....................................................... 11
sign indicates prohibition.
Warning
Mount the unit securely
Consider the direction of the
intruder, for the setting of the
detection area.
Tilt
EN-1
No.59-2363-3 1711-01
EN No.59-2363-2
2 PIRs standard model
HX-40 with anti-masking
HX-40AM with micro-wave
Caution
