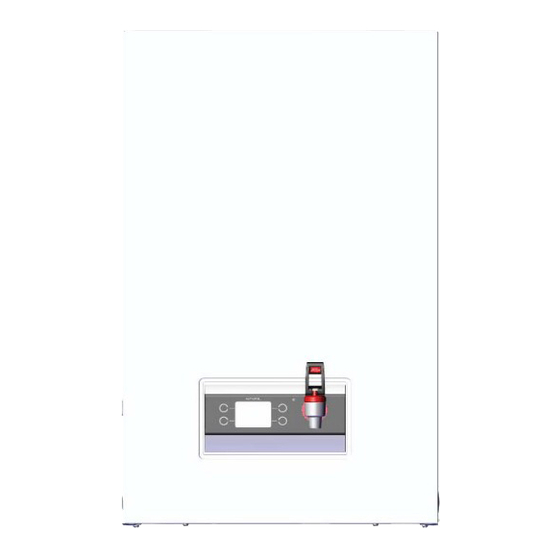

Zip Autoboil
Installation and Operating Instructions
315052 Zip Autoboil 15 Litre White
313051 Zip Autoboil 15 Litre Stainless Steel
325052 Zip Autoboil 25 Litre White
325051 Zip Autoboil 25 Litre Stainless Steel
340052 Zip Autoboil 40 Litre White
340051 Zip Autoboil 40 Litre Stainless Steel
805194 09.17 1.02
Page 1 of 24
Advertisement
Table of Contents
Related Manuals for Zip Autoboil 315052
Summary of Contents for Zip Autoboil 315052
- Page 1 ™ Zip Autoboil Installation and Operating Instructions 315052 Zip Autoboil 15 Litre White 313051 Zip Autoboil 15 Litre Stainless Steel 325052 Zip Autoboil 25 Litre White 325051 Zip Autoboil 25 Litre Stainless Steel 340052 Zip Autoboil 40 Litre White 340051 Zip Autoboil 40 Litre Stainless Steel 805194 09.17 1.02...
-
Page 2: Table Of Contents
Contents Read These Warnings First ................................3 Installation Requirements ................................3 Installation Procedures ..................................4 Step 1 – Positioning ..............................4 Step 2 – Fastening ..............................4 Step 3 – Connecting ..............................5 3.1 Plumbing ..............................5 3.2 Venting ..............................5 3.3 Electrical .............................. -
Page 3: Read These Warnings First
This appliance must be earthed. If the power supply cord is damaged it must be replaced by a Zip authorised agent or a qualified electrician. Do not remove the cover of the heater under any circumstances without first isolating the heater from the power supply. -
Page 4: Installation Procedures
Installation Requirements all-pole disconnection with a switch contact separation of at least 3 mm (see step 3.3 on page 6). Approximate Weight When Filled c) Cold water supply with a minimum working pressure of 70 kPa and a maximum working pressure of 700 kPa connected via an 15 Litre models 34.5 kg isolation valve. -
Page 5: Step 3 - Connecting
12.7 mm capillary elbow (# 63 in the cold water supply line. Swivel Elbows). Zip recommends a valve rated Cold water pipes must be flushed before connection to the inlet. Any at 350 kPa for this application. -
Page 6: Electrical
Installation Procedures 3.3 Electrical Live Phase 2 Live Phase 1 Warning: Do not turn on the power until instructed. Water Earth Neutral must first be available from the tap outlet to prevent damage. Fig.1 All wiring must be performed by a qualified electrician. Electrical connection for units with 2 elements (40L models). -
Page 7: Step 5 - Commissioning - Filter Flush & Calibrate
Installation Procedures Step 5 – Commissioning - Filter Flush & Calibrate Warning: Do not turn on the power until instructed. Water must first be available from the tap outlet to prevent damage. Fig.3 Filter Flush 1) Ensure filter flush valve lever is rotated to down position, see Fig.3. - Page 8 Installation Procedures Inlet water 15°C 10°C temp 15 Litre models 40 min 43 min 25 Litre models 47 min 50 min 40 Litre models 60 min 64 min Calibrating Completed 7) When it completes (as prompted), turn on the mains water supply.
-
Page 9: Menu Operation
Menu Operation 1.Understanding Icons and Buttons The Autoboil uses a display and button menu Move to the next item able to be highlighted. system for setup and operation adjustment. Move to the previous item able to be The display does not have a touch screen feature. highlighted. - Page 10 Menu Operation Using to navigate to the fi lter life settings Filter Indication: menu. Days remaining of fi lter life. Shown red, fi lter needs replacement. Sleep Mode Indication: Unit will enter sleep mode at the time shown. Unit will enter sleep mode when it is dark. Button 4 will show more information about the sleep mode settings.
- Page 11 Menu Operation 2.3 Sleep Override Mode Awake time remaining: Unit will return back to sleep mode after this time. 3. Settings Menu Select on the home screen to navigate to the main menu. Choose and select Settings Main Menu Settings Menu Choose an option and select 805194 09.17 1.02 Page 11 of 24...
- Page 12 Menu Operation 3.1 Settings - Date/Time 3.3 Settings - Sleep Modes From the settings menu choose Settings From the settings menu choose Sleep Modes and select and select 3.3.1 Sleep Trigger Navigating using Perform a selection or confirm an adjusted value using Adjust the date/time values using Note: Time can be in 12hr or 24hr mode.
- Page 13 Menu Operation ► Saving changes While the unit is in its sleep 68°C mode the set point of the water to exit the timer settings menu. A will be reduced to 68°C. confirmation menu will be shown. While the unit is in its sleep mode no heating of the water Choose to save changes and...
- Page 14 Menu Operation 3.4.2 Filter Life / Usage Continue Choose and select This allows modifi cation of fi lter life and usage reset the fi lter usage counter. parameters. Filter Life – Options are: ► Disabled (no fi lter replacement reminder will be shown on home screen) ►...
- Page 15 Menu Operation 4.1 Install - Light Calibration Continue From the install menu choose and select Before continuing ensure the unit is in its normal typical light environment and the front panel is not covered. The unit will heat the water for boiling calibration. This may take several minutes depending on the initial water temperature.
- Page 16 Menu Operation 5. Info Menu 5.2 Info - Current Fault From the info menu choose Current Fault Select on the home screen to navigate to the main menu. Info Choose and select 6. Service Menu Note: The service menu is used by technicians only for diagnostic purposes.
-
Page 17: Wall Mounting Template Dimensions
Wall Mounting Template Dimensions 499.00 (40lt) 459.50 (40lt) 374.00 (10lt, 15lt, 25lt) 334.50 (10lt, 15lt, 25lt) 39.50 (10lt, 15lt, 25lt, 40lt) External Plumbing COLD INLET VENT Electrical Wiring Internal Plumbing 41.00 (10lt, 15lt, 25lt, 40lt) 62.00 (10lt, 15lt, 25lt, 40lt) 84.00 (10lt, 15lt, 25lt, 40lt) 21.00 (10lt, 15lt, 25lt, 40lt) 103.00 (10lt, 15lt, 25lt, 40lt) -
Page 18: Spare Parts
Filter Head Kit (no 94492 94624 Loom PCB to Overload bracket) 94612 Mains Inlet Assy Loom Contactor to 94625 Overload 93704 0.2 mic Zip Filter Size 2 94626 Loom PCB to Terminal 94613 Steam Sensor NTC Page 18 of 24 805194 09.17 1.02... -
Page 19: Exploded View Diagram
Exploded View Diagram 805194 09.17 1.02 Page 19 of 24... -
Page 20: Problem Solving
(see page 21). Fails to dispense water. Water isolating valve turned off. Check water supply valve. Blocked filter, blocked meter tube, Contact Zip authorised agent. blocked strainer, jammed ball valve assembly. Incorrect temperature setting. Check temperature setting (see section 3.2). -
Page 21: Fault Codes Table
Fault Codes Table Error Code Error meaning Solutions Boiling sensor is open circuit Call Zip Service Boiling sensor has a short circuit Call Zip Service Steam Sensor is open circuit Call Zip Service Steam sensor has a short circuit Call Zip Service... -
Page 22: Operating Procedures
Warning! Not changing filtration cartridges when required, may cause the water to become biologically unsafe. If the Zip Autoboil is switched off for a long period of time (e.g. More than a weekend), run water through the outlet for at least 5 minutes before consumption. -
Page 23: Cleaning
Filter Replacement Use only Zip Filter in this product to ensure effective filtration and operation. Replacement filter cartridges can be obtained through plumbing suppliers or directly from Zip. Filter replacement instructions are included with the filter cartridge spare part kits. -
Page 24: Contact Details
Telephone (02) 9796 3100 Free Call 1 800 638 633 As Zip policy is one of continuous product improvement, changes to specifi cations may be made without prior notice. Images in this booklet have been modifi ed and may not be true representations of the fi nished goods.
