Zip Hydroboil
Instant boiling water

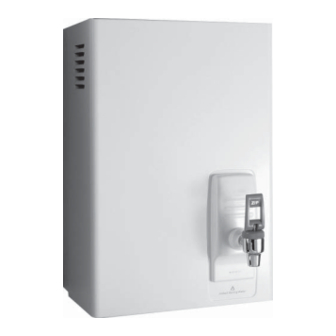

01552 Zip Hydroboil 1.5 Litre White
01551 Zip Hydroboil 1.5 Litre Stainless Steel
03552 Zip Hydroboil 3 Litre White
03551 Zip Hydroboil 3 Litre Stainless Steel
05552 Zip Hydroboil 5 Litre White
05551 Zip Hydroboil 5 Litre Stainless Steel
07552 Zip Hydroboil 7.5 Litre White
07551 Zip Hydroboil 7.5 Litre Stainless Steel
Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00
Installation and Operating Instructions
®
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Zip 01552 Hydroboil
Summary of Contents for Zip 01552 Hydroboil
- Page 1 05552 Zip Hydroboil 5 Litre White 05551 Zip Hydroboil 5 Litre Stainless Steel 07552 Zip Hydroboil 7.5 Litre White 07551 Zip Hydroboil 7.5 Litre Stainless Steel Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00 Page 1 of 12...
- Page 2 Page 2 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00...
-
Page 3: Table Of Contents
Spare Parts ............ 10 Contact Details ..........12 Note: All plumbing must comply with AS3500.4.1 & AS3500.4.2 All electrical must comply with AS3350.1 & AS3350.2.15 Page 3 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00... -
Page 4: Read These Warnings First
All plumbing connections must be made in accordance with local regulations. The Zip Hydroboil instant boiling water heater is not intended for use by young children or infirm people without supervision. Young children should be prevented from having access to ensure that they are not able to use or play with the heater. -
Page 5: Installation Procedures
Screw heater chassis to the wall using screws or bolts suited to the wall. Screws or bolts must be capable of supporting the heater weight when filled. Page 5 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00... -
Page 6: Step 3 - Connecting
Minimum - 1.0 bar, (100 kPa) maximum - 7 bar (1000 kPa). Warning: If pressure is likely to exceed 7 bar, a pressure limiting valve must be installed in the cold water supply line. Zip recommends a valve rated at 3.5 bar (350 kPa) for this application. -
Page 7: Wall Mounting Template Dimensions
416 3.O L 448 5.O L 561 7.5 L POSITIONING PIN COLD EXTERNAL PLUMBING VENT INLET ELECTRICAL WIRING POSITION INTERNAL PLUMBING BENCH TOP Page 7 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00... -
Page 8: Problem Solving
Warning- the water may be boiling - show extra care. 5. Test that in every instance the electrical resistance does not exceed 1 ohm. Page 8 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00... -
Page 9: Operating Procedures
Operating Procedures Tap Operation Boiling water Zip Hydroboil is fitted with a two-way cool-touch safety tap for filtered instant boiling water. For instant boiling water, gently pull the top of the tap forward. Boiling water will flow until the tap handle is released. -
Page 10: Spare Parts
Tank Welded 7.5L Kit 90146 Insulation Kit 1.5L 90147 Insulation Kit 3.0L 90148 Insulation Kit 5.0L 90149 Insulation Kit 7.5L 90130 Clips for Curled Tank Kit Page 10 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00... - Page 11 Spare Parts Page 11 of 12 Zip Hydroboil - Installation & Operating Instructions - 85264 - May 2012 v1.00...
-
Page 12: Contact Details
Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the appliance...
