CCR-2SRGB

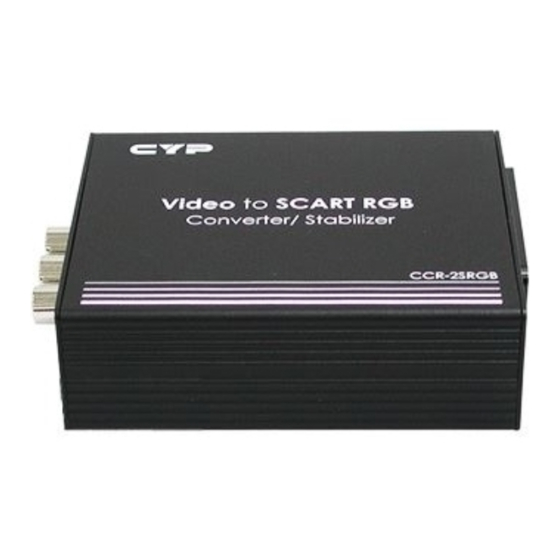

AV to Scart RGB Converter

Features:

* Automatically recognizes TV system of the video input and
converts it to Scart RGB Sync.
* Regenerates sync. and restored color burst of the Video input
to achieve an error-free standard RGB output.
* Ideal for use with TVs equipped with scart connector for enhancing picture quality.
* Audio source loop-through.

Applications:

Cypress CCR-2SRGB is a simple plug and play unit that let you make a perfect
video copying without any quality loss, also great for enhancing picture quality.

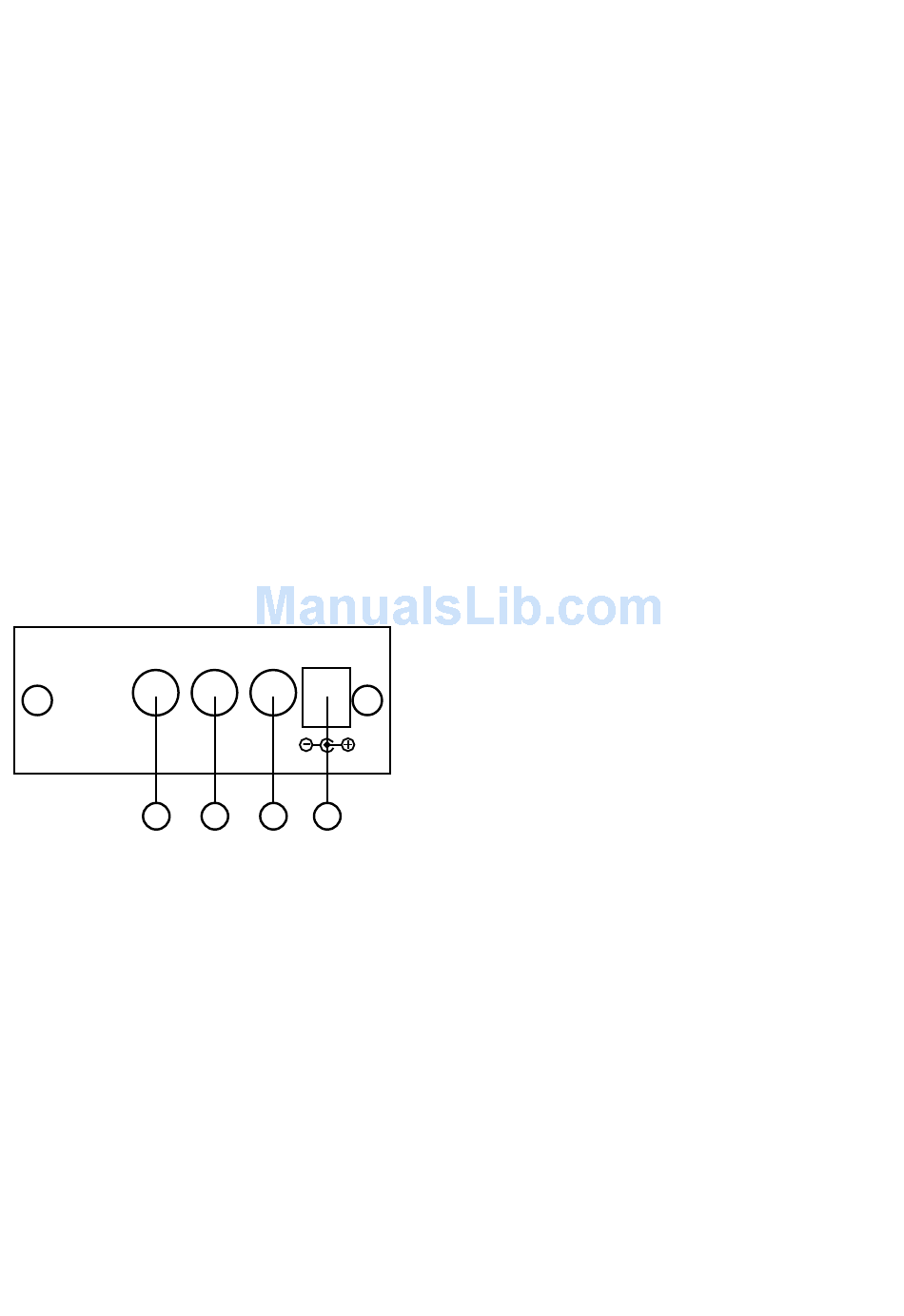

Front Panel
R-IN
1
1. R-IN: Connects to Right Audio output of the source device.
2. L-IN: Connects to Left Audio output of the source device.
3. V-IN: Connects to Video output of the source device.
4. Power jack: DC 7.5V 500mA center positive.
DC 7.5V
L-IN
V-IN
500mA
2
3
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCR-2SRGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress CCR-2SRGB

  • Page 1 * Ideal for use with TVs equipped with scart connector for enhancing picture quality. * Audio source loop-through. Applications: Cypress CCR-2SRGB is a simple plug and play unit that let you make a perfect video copying without any quality loss, also great for enhancing picture quality. Operation Controls and Functions: Front Panel DC 7.5V...
  • Page 2: Operation Controls And Functions

    Operation Controls and Functions: Rear Panel SCART OUT 5. Power ON Indicator: The LED lights up when the power is ON. 6. Scart out: Scart Lead (Input/Output) 1. Audio output 1, 11. RGB Green output. Right channel. 12. N.C. 2. N.C. 13.
