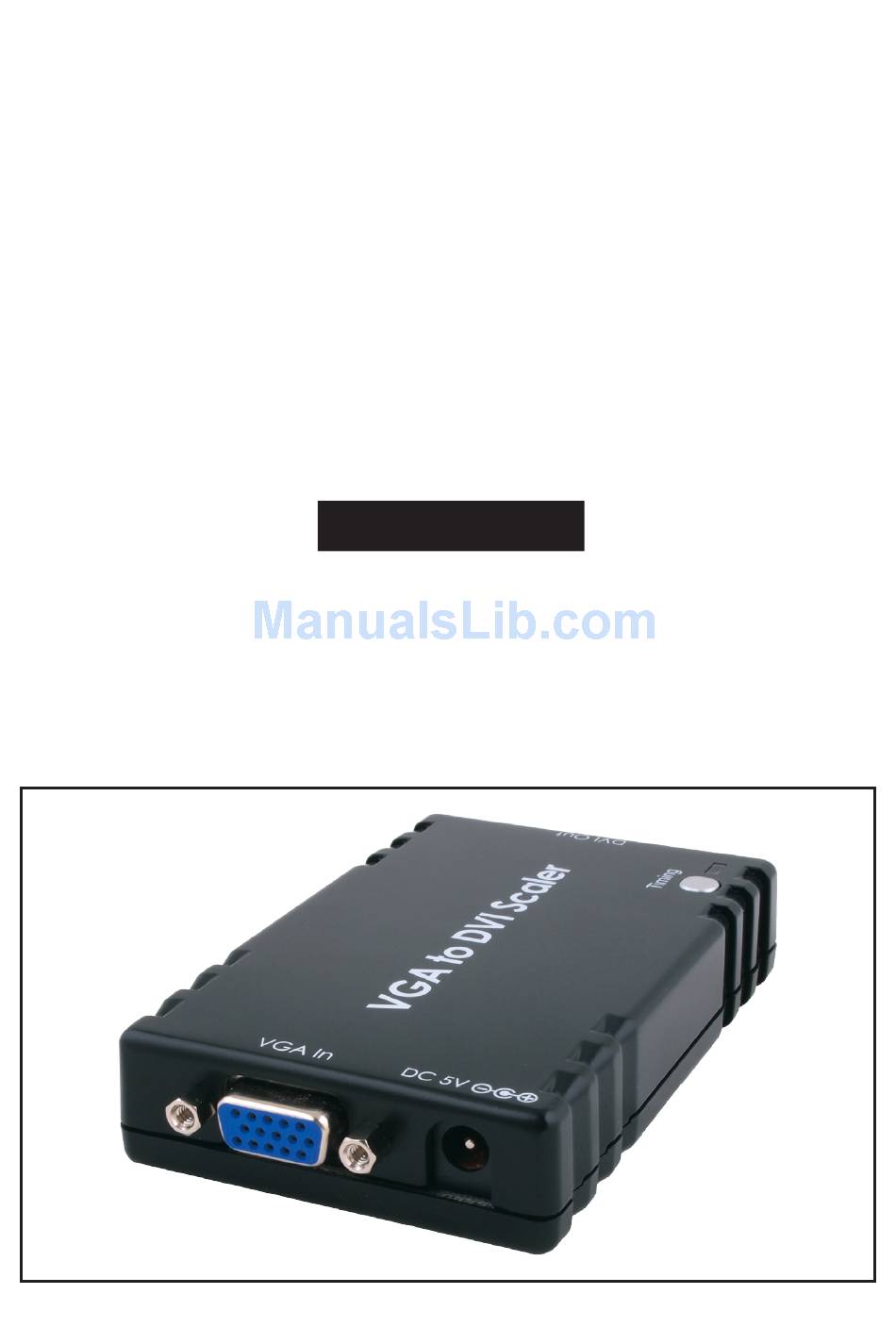

- Page 1 CP-300VD VGA to DVI Scaler Operation Manual CP-300VD...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Top Panel ................. Left Panel .…………………………………..……..…..….… Right Panel .…………………………………..……..…...….… OSD Chart ........…..……………..…..…..…... Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This Scaler Box is design to display your VGA image on the DVI monitor with better viewing image. It can upscale VGA input sources to DVI output for wide-range of PC resolution; the resolution supports from VGA to WUXGA. This unit allows user with a variety of output resolutions and adjust for the best picture quality. -
Page 6: Specifications
6. Specifications Input Port 1 x VGA Output Port 1 x DVI Power Supply 5V DC / 1A linear power adaptor (US/EU standards, CE/FCC/UL certified) Or 5V/1.2A switching power adaptor (with universal plug, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel VGA to DVI Scaler Timing ① ② ① Timing button: Press this button to switch the EDID for bypass, manual or native mode. The OSD will display on the left top screen of the output display with both input and output timing. -
Page 8: Left Panel
7.2 Left Panel VGA In DC 5V ① ② ① VGA In: This slot is to connect to input source equipment such as PC/NB with VGA cable. ② DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. -
Page 9: Osd Chart
8. OSD Chart Output timing rate (Hz) Input timing Timing rate Manual mode Native mode Bypass mode 640x350 No support No support 640x400 No support No support 640x480 60,72,75,85 60,72,75,85 800x600 56,60,72,75,85 No support No support 56,60,72,75,85 848x480 No support No support 1024x768 60,70,75,85... -
Page 10: Connection And Installation
9. Connection and Installation Monitor/Display PC/NB... -
Page 11: Acronyms
Acronyms Acronym Complete Term Digital Visual Interface EDID Extended Display Identification Data On Screen Display Video Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110412 MPM-CP300VD...
