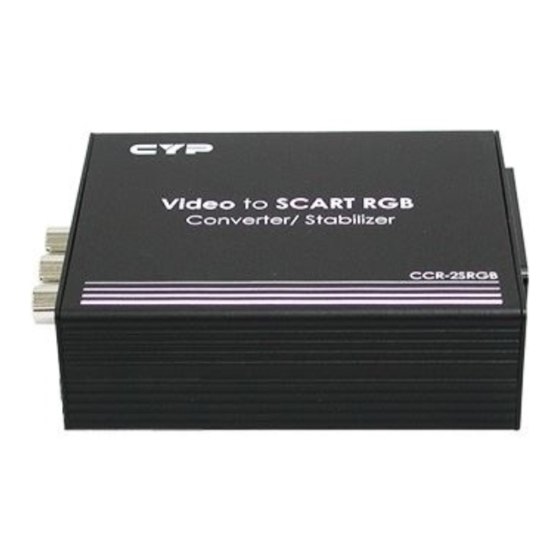

Cypress CCR-2SRGB Operation Manual

AV to Scart RGB Converter

Applications

Cypress CCR-2SRGB is a simple plug and play unit that let you View Video without
any quality loss, also great for enhancing picture quality.

Features

* Automatically recognizes TV system of the video input and converts it to
Scart RGB Sync.
* Regenerates sync. and restored color burst of the Video input to achieve an
error-free standard RGB output.
* Ideal for use with TVs equipped with scart connector for enhancing picture
quality.
* Audio source loop-through.

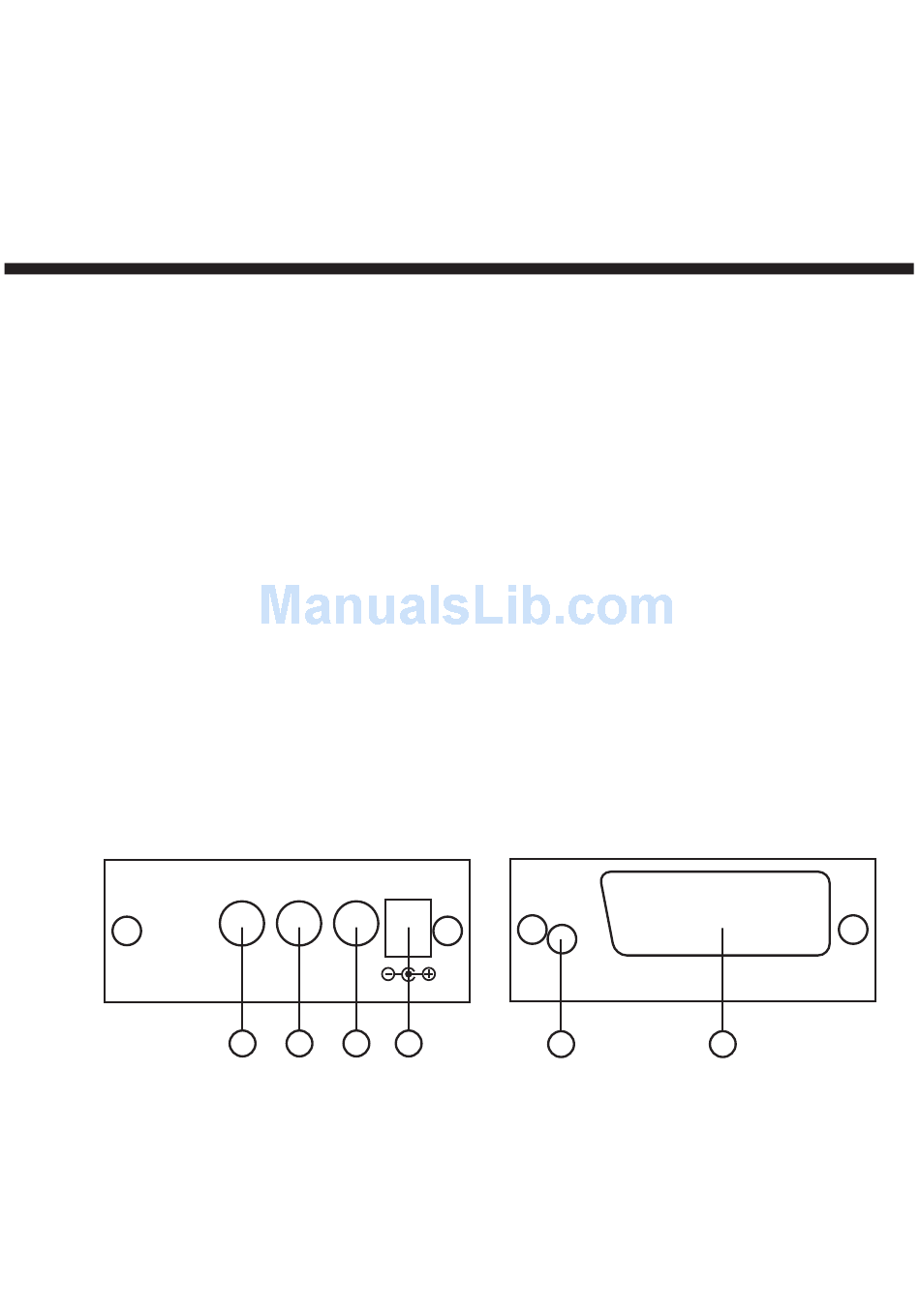

Operation Controls and Functions

Front Panel

1. R-IN: Connects to Right Audio output of the source device.
2. L-IN: Connects to Left Audio output of the source device.
3. V-IN: Connects to Video output of the source device.
4. Power jack: DC 7.5V 500mA center positive.
5. Power ON Indicator: The LED lights up when the power is ON.
6. Scart out:
CCR-2SRGB
DC 7.5V
R-IN L-IN V-IN
500mA
1 2 3

Rear Panel

4 5
Operation Manual
SCART OUT
6
