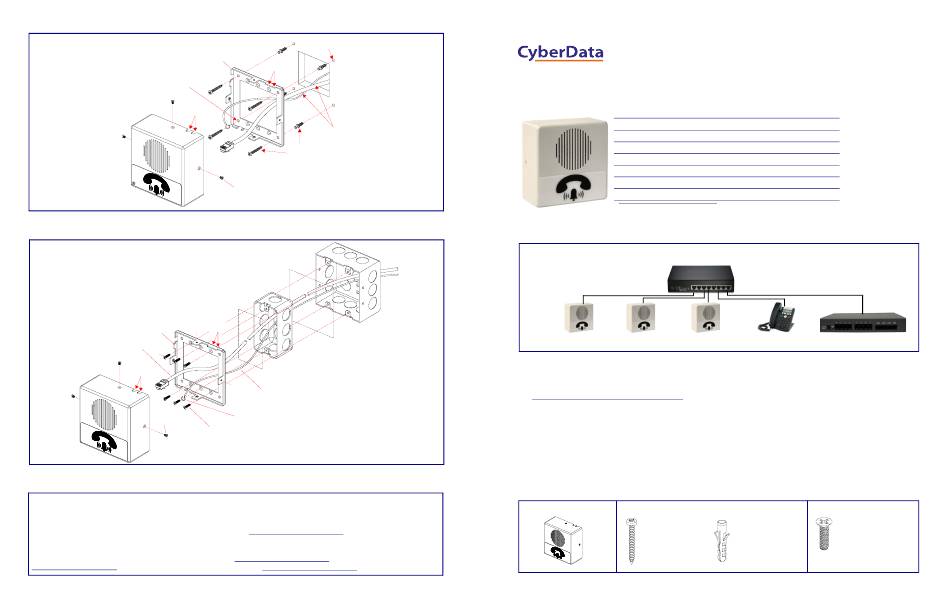

CyberData InformaCast 011311 Installation Quick Reference

Wall Mounting Options
Backplate
Pick One of Four Mounting Hole
for Ground Wire Connection
Cable
Entry
Slot
Gang Box Mounting Options
Backplate
Network Cable
(Not Provided)
Cable
Entry
Slot
Mounting
Screw (3x)
121002B
Screw Accessory Kit
Single Gang Box use two
Two Gang Box use four
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED 931647B
Pre Drill Holes
(4 Places) on Wall
Cable
Slots
Closed
Wall
Cutout
Network Cable &
Ground Wire
(Not Provided)
121001A
Screw
Accessory Kit
Mounting
Screw (3x)
Cable
Slots
Closed
Wall Cutout
Backplate accept
Single Gang Box
or Two Gang Box
Wall Cutout
Ground Wire
(Not Provided)
Ground Wire Connect to
Any Available Mounting Hole
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
Quick Reference
All manuals and user guides at all-guides.com
The IP Endpoint Company
Typical System Installation
*More installation and mounting
options are available in the
Operations Guide.
Office Ringer
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011311
• Create a plan for the locations of your Office Ringers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Office Ringer Assembly
Quick Reference
Installation Quick Reference

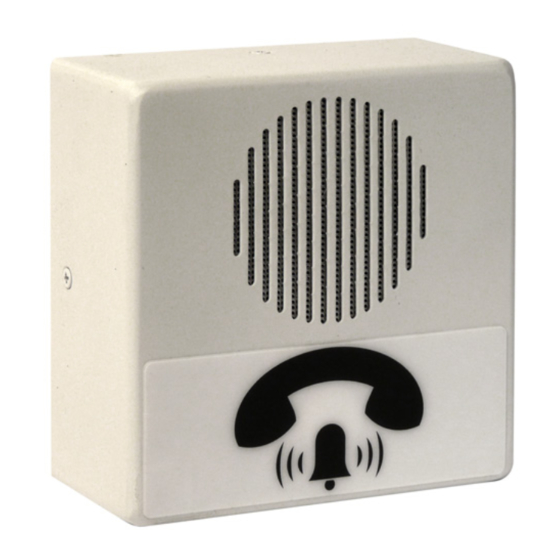

InformaCast Enabled Office Ringer
011311
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
Office Ringer Office Ringer IP Phone
(1) Wall Mounting Kit
(4) #6 x 1.25-inch (4) Plastic ribbed anchor
Sheet Metal Screw
931647B © 2019, CyberData Corporation, ALL RIGHTS RESERVED
InformaCast Server
(1) Gang Box Mounting Kit
(4) 6-32 x 0.5-inch flat
undercut Phillips machine
screw
