Zynq-7000 All Programmable SoC ZC702
Evaluation Kit
Quick Start Guide
The Zynq®-7000 All Programmable (AP) SoC ZC702 Evaluation Kit provides a platform for evaluating Xilinx
Zynq-7000 AP SoC devices. The ZC702 kit contains the necessary hardware, tools, and IP to quickly evaluate and
start the development of your embedded system.
This guide provides a kit overview and step-by-step instructions to set up and configure the board, run the built-in
self-test (BIST), install Xilinx tools, and redeem the license voucher.

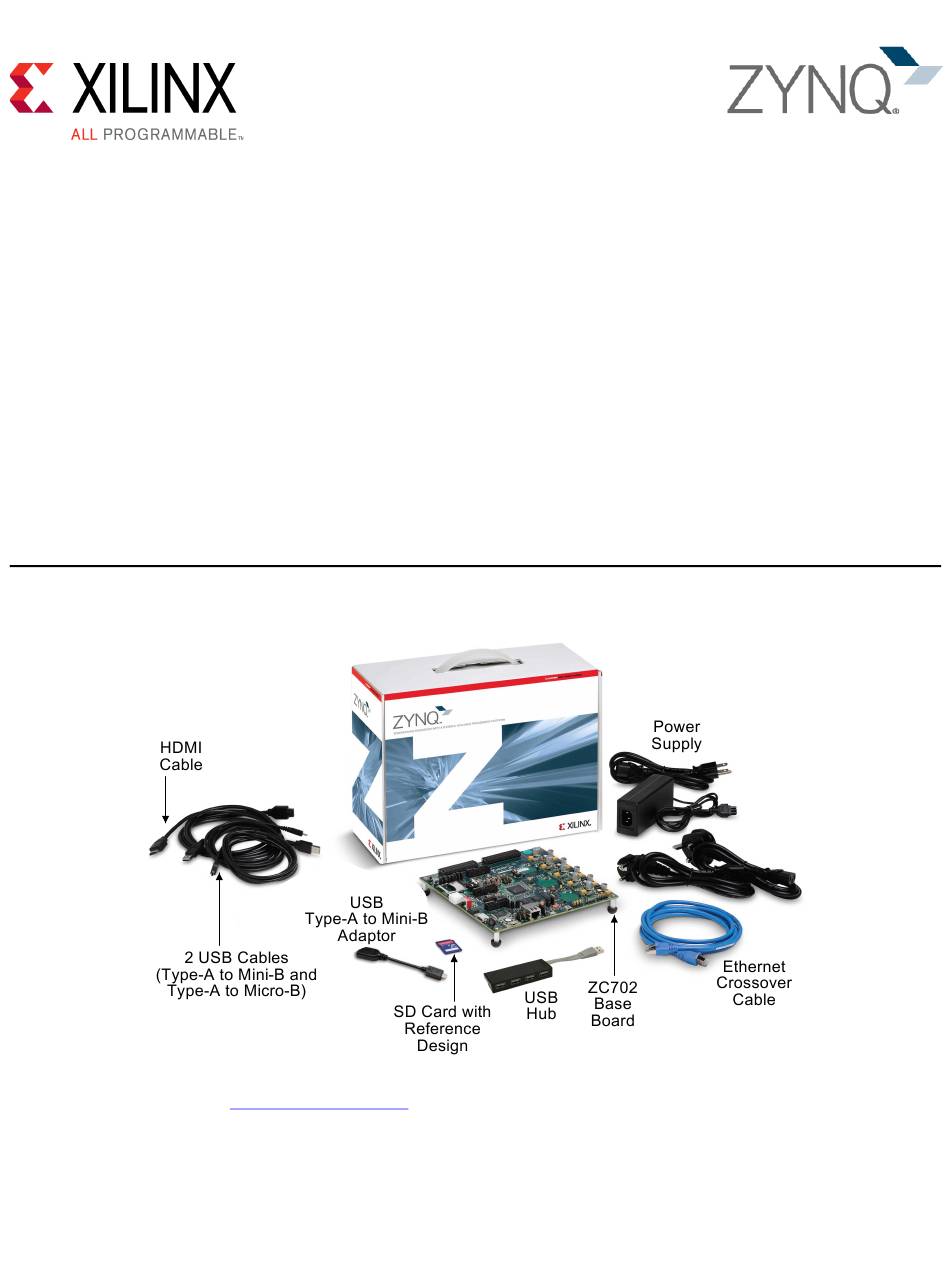

ZC702 Evaluation Kit
X-Ref Target - Figure 1-1
For more information, visit www.xilinx.com/zc702.
Advertisement
Related Manuals for Xilinx Zynq ZC702-G
Summary of Contents for Xilinx Zynq ZC702-G
- Page 1 Evaluation Kit Quick Start Guide The Zynq®-7000 All Programmable (AP) SoC ZC702 Evaluation Kit provides a platform for evaluating Xilinx Zynq-7000 AP SoC devices. The ZC702 kit contains the necessary hardware, tools, and IP to quickly evaluate and start the development of your embedded system.
- Page 2 Set DIP switch SW16 to this configuration (00010): and a terminal emulator for the USB-to-UART on your Install the CP210x USB to UART drivers as described in www.xilinx.com/kits/cp210x. Xilinx recommends using Tera Term for terminal emulation as described in www.xilinx.com/kits/ teraterm.
- Page 3 X-Ref Target - Figure 1-5 Set Up Terminal Emulator: Serial Setup Initialize Configuration STEP 7: STEP 8: Select the same COM port assigned in Step 5 and set Press SW1 (POR_B) to reinitialize the configuration for the Baud rate to 115200, the Data to 8 bit, the Parity the ZC702 board.
- Page 4 © Copyright 2014–2017 Xilinx, Inc. Xilinx, the Xilinx logo, Artix, ISE, Kintex, Spartan, Virtex, Vivado, Zynq, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. All other trademarks are the property of their respective owners.
