Crestron infiNET EX CHV-TSTATEX-FCU Quick Start Manual

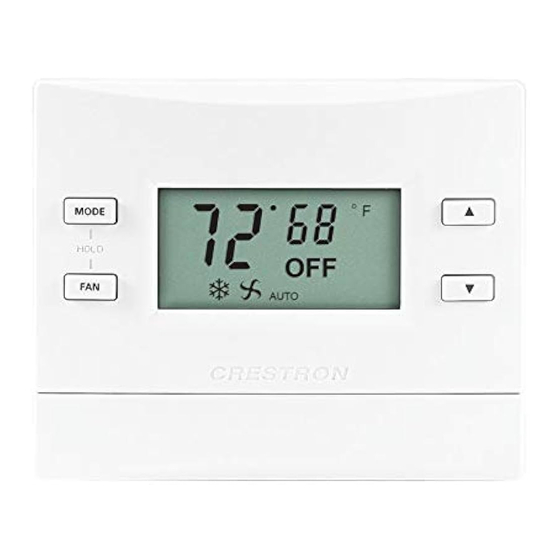

CHV-TSTATEX-FCU

Mounting

1
Mount the thermostat directly to
drywall or to a single-gang box in
accordance with accepted building
codes and practices. If using a
single-gang box, be sure to fill it with
thermal insulation material.
For additional details and installation
options, refer to the latest version of
the CHV-TSTATEX-FCU Operations
& Installation Guide (Doc. 7206). It is
available from the Crestron
site (www.crestron.com/manuals).

DIP Switch Settings

Power Steal Switch
STEAL
(LEFT)
Left Switch
#
DESCRIPTION ON
4 Lockout setup mode Unlocked
3 Hold button behavior Toggles between F/C
2 Medium fan speed Enabled
1 Low fan speed Enabled
Right Switch
# DESCRIPTION ON
4 Heat mode Enabled
3 Cool mode Enabled
2 Auto mode Enabled
1 Auto mode behavior Single setpoint
1
For details, check the latest revision of the
CHV-TSTATEX-FCU Operations & Installation Guide, Doc. 7206.
QUICKSTART DOC. 7232B (2031610) 04.18
infiNET EX Thermostat (Fan Coil Unit)
®
2

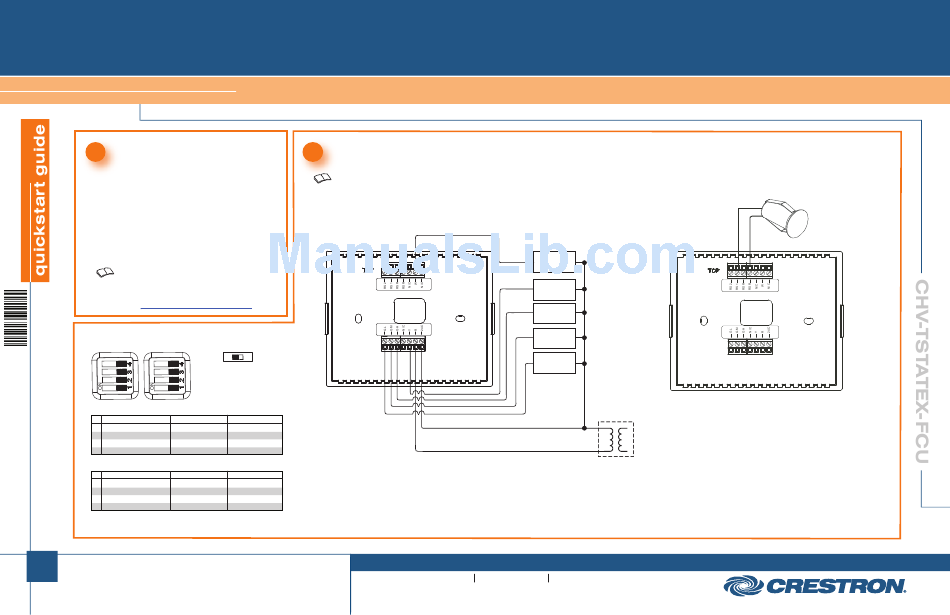

Connections

Connect the thermostat using the wiring configurations shown below as a guide. Refer to "DIP Switch Settings" on
the left to configure each application. For more information, refer to the latest version of the CHV-TSTATEX-FCU
Operations & Installation Guide (Doc. 7206).
® Web
24VAC
(RIGHT)
OFF
Locked
Toggles hold mode
Disabled
Disabled
OFF
Disabled
Disabled
Disabled
Dual setpoint
www.crestron.com
Specifications subject to
change without notice.
Heat Pipe
Valve
Cool Pipe
Valve
Fan High
Relay
Fan Med
Relay
Fan Low
Relay
System
Transformer
C
Optional
R
888.273.7876 201.767.3400
CHV-RTS
