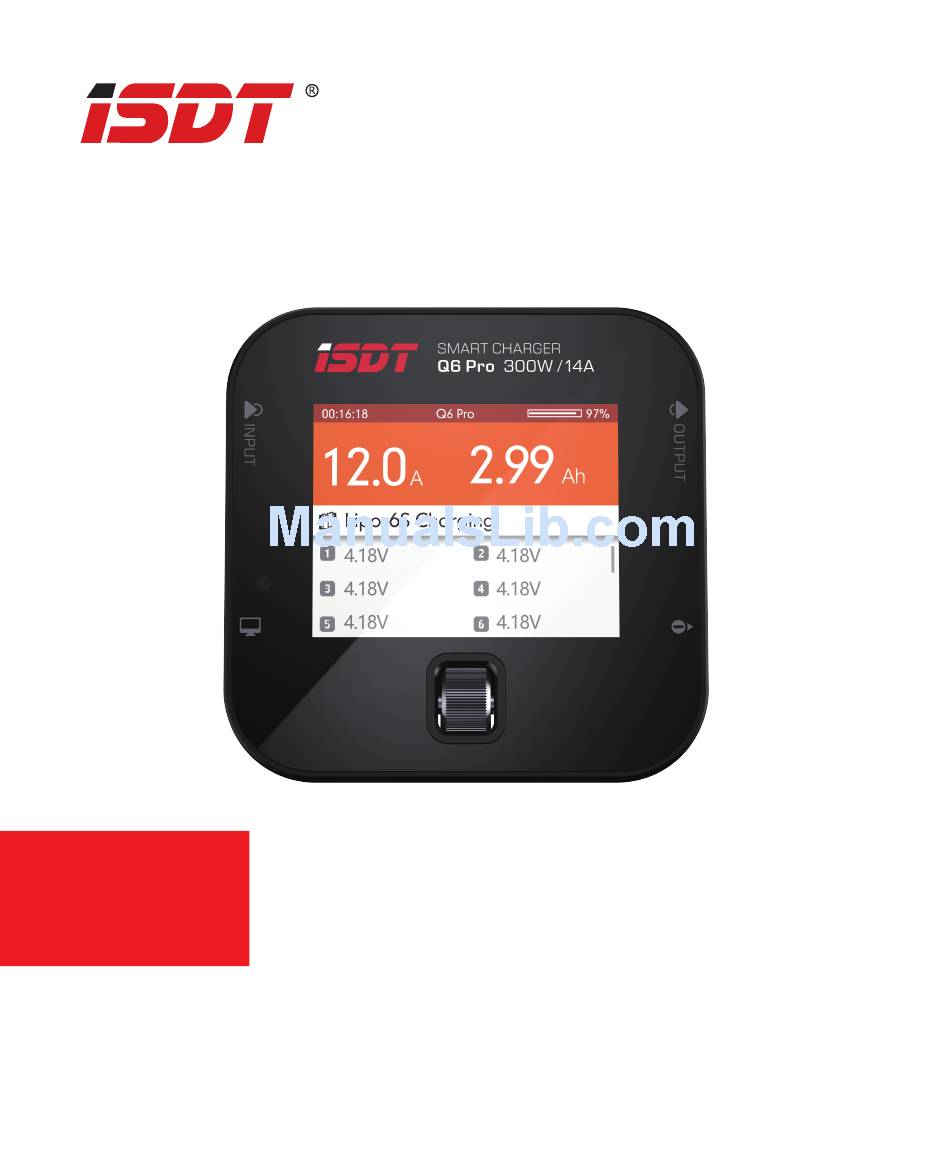

- Page 1 Q6 Pro Smart Charger Operating Instructions Ver 1.1.101...
- Page 2 Introduction Q6 ro, a high-performance smart charger, is innovatively produced by ISDT. Please visit : www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation;...
- Page 3 Contents Xbsojoht!boe!Tbgfuz!Ujqt! Qspevdu!Qbsbnfufst!boe!Dibsbdufsjtujdt Efgbvmu!Cbuufsz!Uzqf!pg!Dibshfs!boe!Ubtl!Qbsbnfufst Ipx!up!Dpogjsn!Dibshjoh!Dvssfou Ubtl!Tfuujoh Xpsljoh!Qbsbnfufst!Ejtqmbz Tztufn!Efgbvmu Uspvcmftippu Qspevdu!Rvbmjgjdbujpo!Efdmbsbujpo...
- Page 4 Warnings and Safety Tips The following safety tips are essentially important. Please strictly follow the manual’s instructions in operation to guarantee safety. Improper operation or incorrect working parameter settings may cause damages to the charger and battery and/or result to a fire. Do not use the charger in an unattended manner;...
- Page 5 Product Parameters and Characteristics Guide For the Connection of Balanced Port 1. 2.4”IPS Display 5. Speed Shuttle key 2. Power Input 6. Balanced Port 3. Update Port 7. Battery Port 4. Opto- sensor Speed Shuttle key Long press: enter system setting / terminate current task Short press: enter task setting / confirm current setting Horizontal scroll: select menu...
- Page 6 Product Parameters and Characteristics 80MM 33.5MM 80MM Specifications: Input Voltage: DC 7-32V Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S) Output Voltage: 0-30V NiMH/Cd(1-16S) Charge Current: 0.1-14.0A Pb(1-12S) Discharge Current: 0.1-3.0A Display: 2.4’’320x240 IPS LCD Max Charge Power: 300W Operating Temperature: 0-40°C Max Discharge Power: Storage Temperature: -20-60°C Balance Current:...
- Page 7 Default Battery Type of Charger and Task Parameters NiCd/NiMH LiFe Lilon LiPo LiHv Rated Voltage 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V Full Charge Voltage 1.40V 2.46V 3.65V 4.10V 4.20V 4.35V Storage Voltage Not supported Not supported 3.30V 3.70V 3.80V 3.85V Discharge Voltage 1.10V 1.90V...
- Page 8 How to Confirm Charging Current It is very important to know the maximum charging current of the battery as excessive current could influence the life span of battery and/or cause damages. In addition, excessive current can cause heating and/or explosion of the battery during the charging process. The charging and discharging capacity of battery is usually marked with C value.
- Page 9 Task Setting Recommended Voltage End-voltage setting Connect the charger to the power supply and wait for the system to complete the self testing. Connect the battery to the charger under standby interface, and short press the shuttle key to make the task setting menu to pop up. The items in the menu are as follows: Task Select task contents: Charge, Discharge, Storage Battery type...
- Page 10 Task Setting The working mode of the charger is series charging; you must therefore connect it to the output line of the battery while charging. For a lithium battery, it is highly suggested that the balanced interface should be connected to carry out balanced charging to accurately monitor the voltage of each cell and balance the ones with bad consistency.
- Page 11 Task Setting Since the way of internal resistance measurement varies, it cannot be realized to measure the absolute value as professional internal resistance tester does. Therefore, the internal resistance value can only be referred to when conducting horizontal comparisons, such as judging the consistency of the cells’ performance or making comparisons of the performance of different cells.
- Page 12 Task operation time Device Name Battery percentage Present current Capacity charged Battery type – string number Current task status Cell voltage 00:17:18 Q6 Pro 1.69 Charging Battgo smart battery input information ISDT Battery Smart battery brand Smart battery LiPo-4S 2018-03-20 Smart battery types&series...
- Page 13 Working Parameters Display Operation Time Name of your Q6 pro 00:14:35 Q6 Pro 1.26 Present Current Capacity Charged Lipo-6S Fast Charg Done Battery parameters & Operation Status 3.6mΩ 3.5mΩ 3.5mΩ 3.5mΩ Resistance of each cell 3.5mΩ 3.5mΩ Fast charging complete...
- Page 14 System Default System Setting BattGO Max.input power 330W Min.input voltage 7.0V Backlight High Long press the shuttle key in standby Volume High interface to make the system default menu pop up, and the items are as follows: Completion Tone Repeat Language English Firmware Sharing...
- Page 15 BattGO Setting Auto Storage 240h Storage Voltage 3.80V Charge Current 2.6A Charge Voltage 4.20V Exception Record Back The battgo settings as below will be showed if connect the battgo smart battery: When default set allow auto storage mode, Auto Storage the time could be set between 12h-240h set the storage voltage slightly, Storage Voltage...
- Page 16 Troubleshoot Error in power on self-testing: the charger can automatically carry out a self-testing when connected to a power supply. A self-testing error warning sound should be heard when the charger is connected to the battery; power on after removing the Error for abnormal battery connection: pull out and plug in the battery again to ensure all connections are reliably contacted;...
- Page 17 Product Qualification Declaration This smart charger conforms to relevant CE command and relevant commands in B: 2010, CHAPTER 15, FCC Testing standards Result EN 55014-1:2006+ A1:2009+A2:2011 EN 55014-2:1997+ A1:2001+A2:2008 For electronic products with this marking in their manuals, please separately dispose them with family garbage.
- Page 18 WWW.ISDT.CO Manufacturer Shenzhen ISD Technology CO.,LTD Address: 5th Fl., Bldg. 9, Mabian Industrial Zone, Yangtian Rd., Block 72, Xin'An Street,Bao'An District, Shenzhen, PRC Email:hi@isdt.co Changes in specifications and data will not be further noticed.
