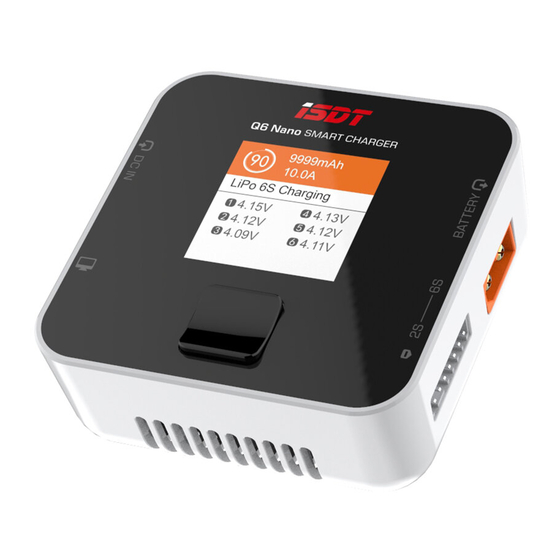

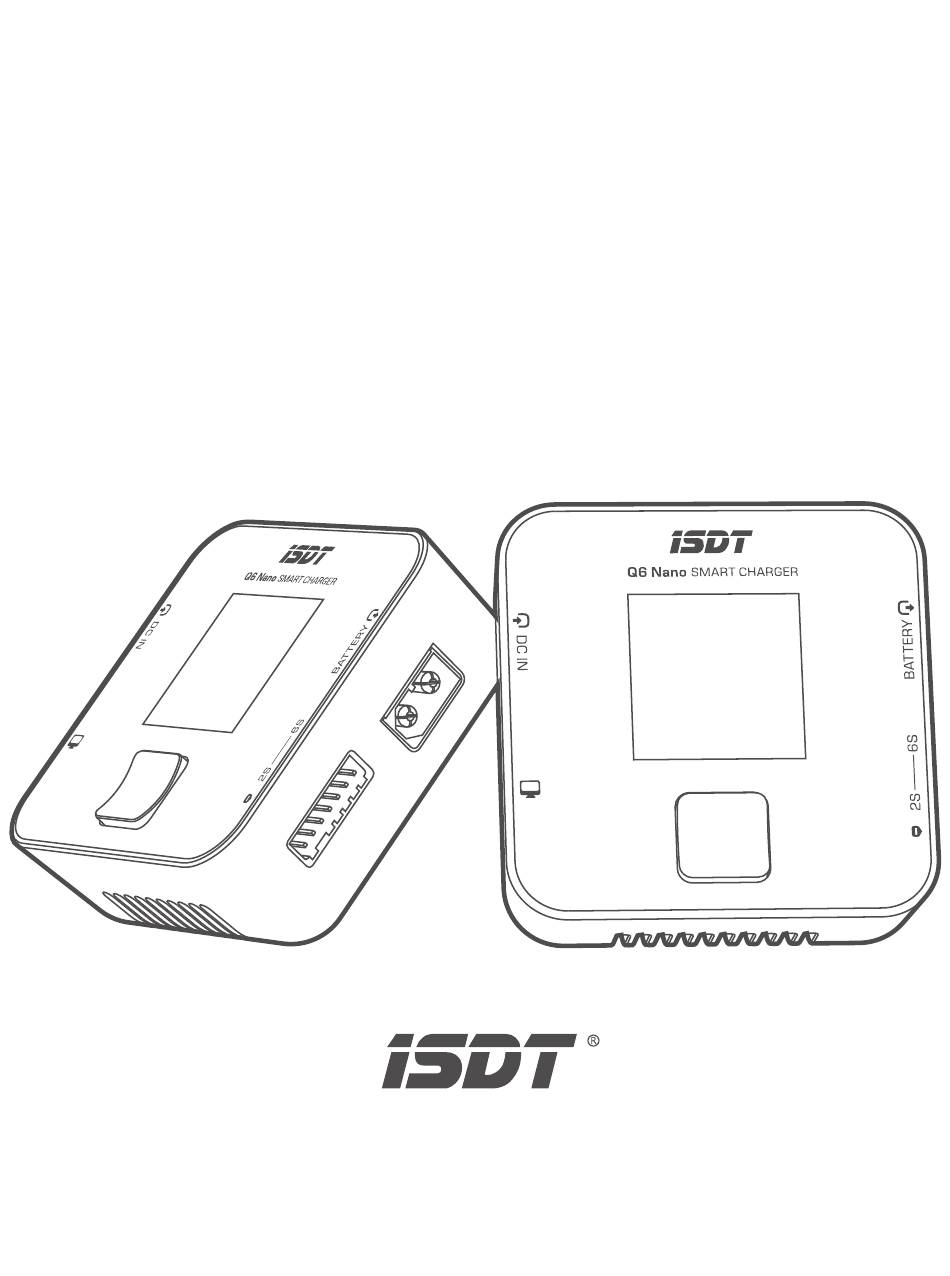

- Page 1 Q6 Nano 200W SMART CHARGR Instruction Manual...
- Page 2 Thanks for purchasing the ISDT Q6 Nano Smart Charger. Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories.Functions of products will be kept on upgrading, the manual in your hand may be...
- Page 3 Function Buttons Three-way Power Power Display navigation Balance input connection Screen port output Three-way navigation key: Press the top half: the screen scroll up Press the bottom half: the screen scroll down Press the middle part: press to enter the task settings, press and hold to enter the system settings.
- Page 4 Input voltage: DC 10~30V Charging current: 0.1~8.0A Output voltage: DC 1.0~30.0V Discharging current: 0.1~1.0A Max. input current: 9A Max. charging power: 200W Balance current: 0.5A/Cell Max Max. discharging power: 10W Dimension: 72×72×32mm Weight: 120g Abnormal voltage alarm: Support Incorrect cell count setting alarm: Support Supported battery types and cell: LiFe,LiIon,LiPo,LiHv 1~6S;...
- Page 5 3.10V Preset voltage Balance charge Unbalanced charge 1~16S 1~12S 1-6S 1~6S 1~6S 1~6S Supported cell count 8.0A 8.0A 8.0A 8.0A 8.0A 8.0A Max. charging current Operating the Charger Power on Q6 Nano smart charger, connect the battery, and short press...
- Page 6 Charge Balancing port is strongly recommended when charging lipo battery, which can make sure to monitor voltage on each cell battery and balance it when charging. Warning beeper will yell before start charging lipo if in non-balance mode(no connecting with balance port). Current setting range: 0.1 8.0A The battery type, cell count and charging current are auto set accordingly...
- Page 7 Destroy Connect the battery to be scrapped, and select the scrap function in task options, which capable to discharge the battery to 0V. Current setting range: 0.1~1.0A The battery type and cell count are are auto set accordingly when connecting with BattGo battery. Task Battery Battery and...
- Page 8 Cells IR 4.15V 4.15V 4.15V 4.15V 4.15V 4.15V Cell voltage Cell internal resistance System info ISDT 23.5V / 200W LiPo 6S 99999mAh 22.5V / 160W 5.0C / 35.0C 60°C / 130°F 2019-01-23 23 / 109pcs BattGo information Working parameter System Setting Menu...
- Page 9 Min. input voltage protection 10~24V: all tasks in operation will be stopped at once and hint warning of low voltage, when the input voltage is lower than the input voltage as set up. It will protect the battery from being discharged when using battery pack as power supply. Max.
