ISDT T6 User Manual

T series smart charger
Hide thumbs

Advertisement

Table of Contents

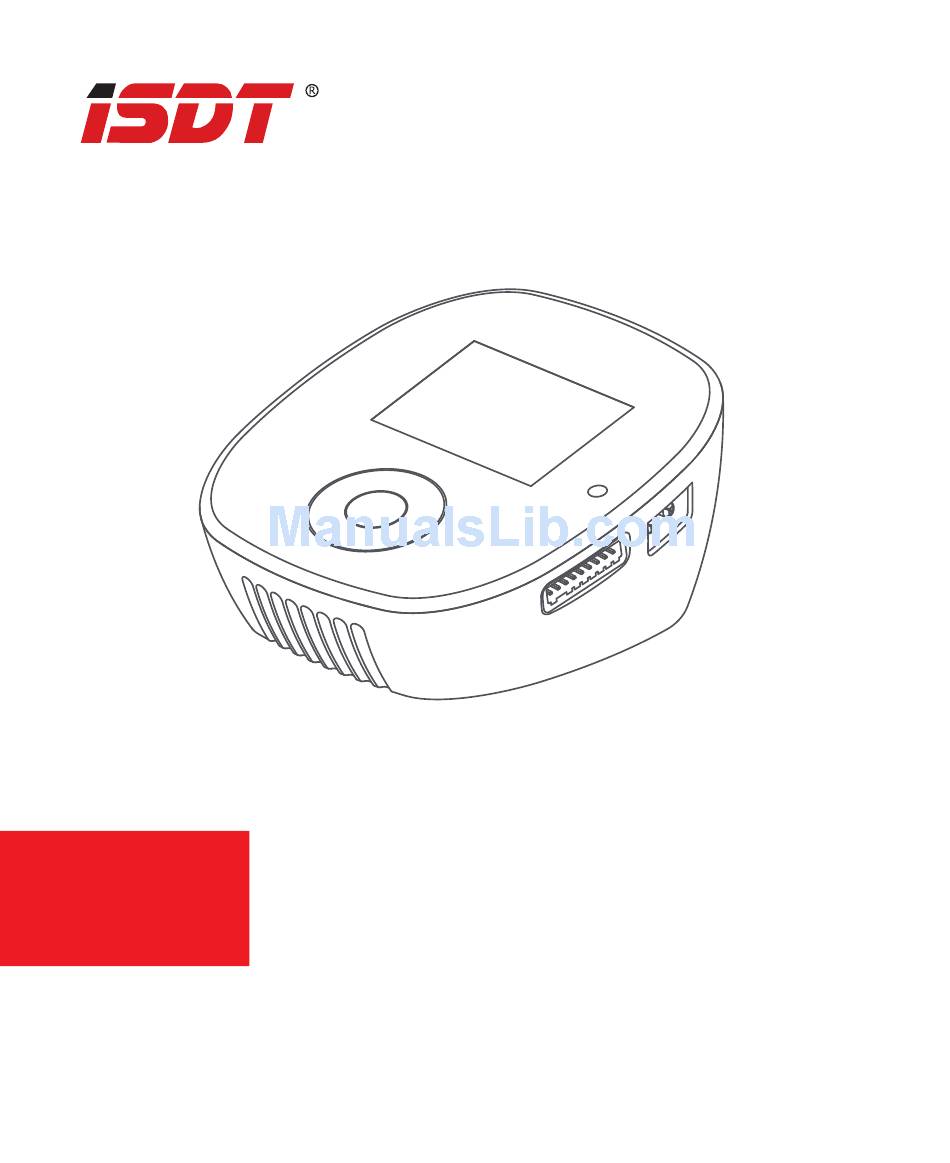

U!tfsjft!tnbsu!
dibshfs!nbovbm!
Wfs!2/2/28:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISDT T6

Summary of Contents for ISDT T6

  • Page 1 U!tfsjft!tnbsu! dibshfs!nbovbm! Wfs!2/2/28:...
  • Page 2 T series is ISDT produced high-performance smart balance charger. With T8 \ T6 \ T6 Lite Please visit : www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation;...
  • Page 3 Dpoufout Xbsojoht!boe!Tbgfuz!Ujqt! Qspevdu!Qbsbnfufst!boe!Dibsbdufsjtujdt Efgbvmu!Cbuufsz!Uzqf!pg!Dibshfs!boe!Ubtl!Qbsbnfufst Ipx!up!Dpogjsn!Dibshjoh!Dvssfou Ubtl!Tfuujoh Xpsljoh!Qbsbnfufst!Ejtqmbz Tztufn!Efgbvmu Uspvcmftippu Qspevdu!Rvbmjgjdbujpo!Efdmbsbujpo...
  • Page 4 Keep the charger away from dust, humidity, rain and high temperature, as well as avoid direct exposure to the sun and intense vibration. Charger power input for the DC T6 / T6 Lite (8-32V), T8 (12-40V),make sure the polarities are correct when connecting to the power supply.
  • Page 5 Product Parameters and Characteristics Hvjef!Gps!uif! Dpoofdujpo! pg!Cbmbodfe!Qpsu 5/!Nvmuj.gvodujpo!lfz 8/!Pvuqvu!qpsu 2/!Joqvu!qpsu 3/!Vqebuf!qpsu 6/!Foufs!lfz 9/!Mjhiu!tfotps 4/!VTC!qpsu 7/!Cbmbodf!qpsu :/!Tdsffo 100MM 58MM 120MM...
  • Page 6 Product Parameters and Characteristics U7!Mjuf DC 8-32V DC 8-32V DC 12-40V Input Voltage Maximum input current 0-30V 0-30V 0-37V Output voltage Input/Output support Output support Input/Output support Support smart battery 0.1-30.0A 0.1-25.0A 0.1-30.0A Charge Current 0.1-5.0A 0.1-5.0A 0.1-5.0A Discharge Current 600W 780W 1000W...
  • Page 7 T6 Support Cells 1-16S 1-12S 1-6S 1-6S 1-6S 1-6S T8 Support Cells 1-21S 1-14S 1-8S 1-8S 1-8S 1-8S T6 Lite Max Charge Current 25.0A 25.0A 25.0A 25.0A 25.0A 25.0A T6 Max Charge Current 30.0A 30.0A 30.0A 30.0A 30.0A 30.0A T8 Max Charge Current 30.0A...
  • Page 8 How to Con rm Charging Current It is very important to know the maximum charging current of the battery as excessive current could influence the life span of battery and/or cause damages. In addition, excessive current can cause heating and/or explosion of the battery during the charging process. The charging and discharging capacity of battery is usually marked with C value.
  • Page 9 Task Setting Task Settings Task Settings LiPo-8S 4.20V Battery Type LiPo Current 30.0A Cells Voltage 4.20V Task Charge Cell Count Input Limit 3.3V/Cell Currnet 30.0A Start Task Charge Back Input Limit Back Input/Output BattGo smart battery Input/Output normal battery Connect PSU to charger, wait until charger is in standby then connect your battery to charger. Short Press ,you will see task setting below: Input/Output BattGo smart battery...

  • Page 10: Storage Function

    Cell Count Battery cell selection， auto detection if balance port is connected Currnet Current selection, charge / store (T6 Lite) 0.1-25.0A (T6 T8) 0.1- 30.0A, discharge 0.1- 5.0A Task Select the task contents Charge / Discharge // Storage Input Limit...
  • Page 11 Task Setting Over-discharging battery reactivate and repair function Over-discharging battery reactivate and repair function After charging task initiates, if battery voltage is lower than pre-charging voltage, charger will charge battery at 0.1A to reactivate and repair. After battery voltage is higher than pre-charging voltage, charger will charge battery as setting.

  • Page 12: Working Parameters Display

    Working Parameters Display 25.3 Cells Voltage Charging current 4.17V LiPo-8S battery type&voltage 4.18V 33.42V 4.18V 4.96Ah 4.18V Charged energy 00:12:18 4.18V Operation time Charging 4.18V Task condition 4.17V 4.18V Connected battery support BattGo Cells Impedance 2.5mΩ 2.6mΩ 2.6mΩ 2.6mΩ 2.9mΩ 2.6mΩ...
  • Page 13 Working Parameters Display 25.3 Cells Voltage 4.17V LiPo-8S 4.18V 33.42V 4.18V 4.96Ah 4.18V 00:12:18 4.18V Charging 4.18V 4.17V 4.18V BattGo smart battery input info BattGO Battery brand 2017-07-28 Production date LiPo-6S Battery type and cell 20000 mAh Battery capacity Max charging C Max discharging C Battery circulation Times of over temperature...
  • Page 14 Working Parameters Display Cells Impedance 8.5mΩ LiPo-6S 8.6mΩ 25.19V 8.6mΩ 2.96Ah 8.6mΩ 00:13:18 8.9mΩ Fast Charge 8.6mΩ Done -.-mΩ -.-mΩ Fast charging complete Cells Voltage 4.20V LiPo-8S 4.20V 33.60V 4.20V 1.5Ah 4.20V 00:15:18 4.20V Charge 4.20V Done 4.20V 4.20V Precise Balance Charging -1.0 Working Info Cells Voltage...

  • Page 15: System Default

    System Default Function Language English Firmware Sharing System Information System self-checking Volume High Completion Tone Repeat Backlinght High Max.input power 1000W When using smart battery as input Min.input voltage 12.0V BattGO Input connecting to BattGo BattGO Output connecting to BattGo Back Max input power: when PSU could not meet max operation power(1000w), to protect PSU and charger working stability, user should adjust this value based on PSU.
  • Page 16 In standby, long press to enter system setting. Language Support up to 7 languages Firmware Sharing By using ISDT sclinker, user can share firmware to same model. System Information Show firmware version System self-checking To check hardware is working properly...
  • Page 17 System Default Auto Storage Off Storage Voltage 3.80V Charge Current 3.4A Charge Voltage 4.20V Exception Record Back Both input and output connecting to BattGo battery, system menu shows as below: When smart battery supports auto discharging, Auto Storage you can select after how many hours battery starts auto discharging. Storage Voltage Slight adjustment for storage voltage, from 0 to -0.20V Charge Current...

  • Page 18: Troubleshoot

    Troubleshoot Error in power on self-testing: the charger can automatically carry out a self-testing when connected to a power supply. A self-testing error warning sound should be heard when the charger is connected to the battery; power on after removing the battery for 5 minutes. Error for abnormal battery connection: pull out and plug in the battery again to ensure all connections are reliably contacted;...
  • Page 19 Product Quali cation Declaration This smart charger conforms to relevant EC command and relevant commands in B: 2010, CHAP- TER 15, FCC Testing standards Result EN 55014-1:2006+ A1:2009+A2:2011 EN 55014-2:1997+ A1:2001+A2:2008 For electronic products with this marking in their manuals, please separately dispose them with family garbage.
  • Page 20 XXX/JTEU/DP Nbovgbduvsfs Shenzhen ISD Technology CO.,LTD Address:!5th Fl., Bldg. 9, Mabian Industrial Zone, Yangtian Rd., Block 72, Xin'An Street,Bao'An District, Shenzhen, PRC Email:hi@isdt.co Changes in speci cations and data will not be further noticed.

This manual is also suitable for:

T8T6 lite
