Warnings and Safety Tips
Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories.Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation, please refer to the actual functions.
For your safety and a better user experience, please read this manual and follow the instruction before using the new charger.
- Never use the charger without supervision, please stop using the charger and refer to the manual for reasons if any functional abnormity.
- Keep the charger away from dust, humidity, rain and high temperature, as well as avoid direct exposure to the sunlight and intense vibration.
- Place the charger on a heat-resisting, non-flammable and insulating surface. Do not use it on the car's seats, carpet or other similar places. Keep inflammable and explosive objects away from operation areas of the charger.
- Read the instruction manual carefully to be familiar with the features of the charger, and set proper charging parameters before operating. Setting the parameters incorrectly will result in damage to the product, personal property and cause serious injury as well.
Function Buttons
Three-way navigation key:
Press the top half: the screen scroll up
Press the bottom half: the screen scroll down
Press the middle part: press to enter the task settings, press and hold to enter the system settings.
Product Specifications
Input voltage: DC 10~30V
Charging current: 0.1~8.0A
Output voltage: DC 1.0~30.0V
Discharging current: 0.1~1.0A
Max. input current: 9A
Max. charging power: 200W
Balance current: 0.5A/Cell Max
Max. discharging power: 10W
Working temperature: 0~40℃
Dimension: 72×72×32mm
Storage temperature: -20~60℃
Weight: 120g
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell: LiFe, LiIon, LiPo, LiHv 1~6S; Pb 1~12S; NiMH/Cd 1~16S
How to Confirm Charging Current
Make sure to know the maximum charging current of the battery before charging, never use excessive current to charge to damage your battery, which will result in over heat even explosion during the charging process. The charging and discharging capacity of battery is usually marked with C value. Multiplying the charging C value and battery capacity equals to the maximum charging current supported by the battery. For example, for a 1000 mAh battery with a charging capacity of 5C, the maximum charging current would be 1000*5=5000mA; therefore, the maximum charging current is 5A. For a lithium battery, if it is impossible to confirm the supported charging C value, please set the charging current below 1C, for the sake of its (lithium battery) safety. The reference relation between C value and charging time: charging time ≥60 minutes/ charging C value (e.g. it needs around 60-70 minutes to complete charging with 1C). Due to differences in battery conversion efficiency, the time to complete the charging might be extended.
Preset Battery Type of Charger and Task Parameters
| NiCd/MH | Pb | LiFe | Lilon | LiPo | LiHv | |
| Rated voltage | 1.20V | 2.00V | 3.20V | 3.60V | 3.70V | 3.80V |
| Full charge voltage | 1.40V | 2.40V | 3.65V | 4.10V | 4.20V | 4.35V |
| Storage voltage |  | | 3.30V | 3.70V | 3.80V | 3.85V |
| Discharge voltage | 1.10V | 1.90V | 2.90V | 3.20V | 3.30V | 3.40V |
| Preset voltage | 0.90V | 1.80V | 2.60V | 2.90V | 3.00V | 3.10V |
| Balance charge | | |  | | | |
| Unbalanced charge | | | | | | |
| Supported cell count | 1~16S | 1~12S | 1-6S | 1~6S | 1~6S | 1~6S |
| Max. charging current | 8.0A | 8.0A | 8.0A | 8.0A | 8.0A | 8.0A |
Operating the Charger

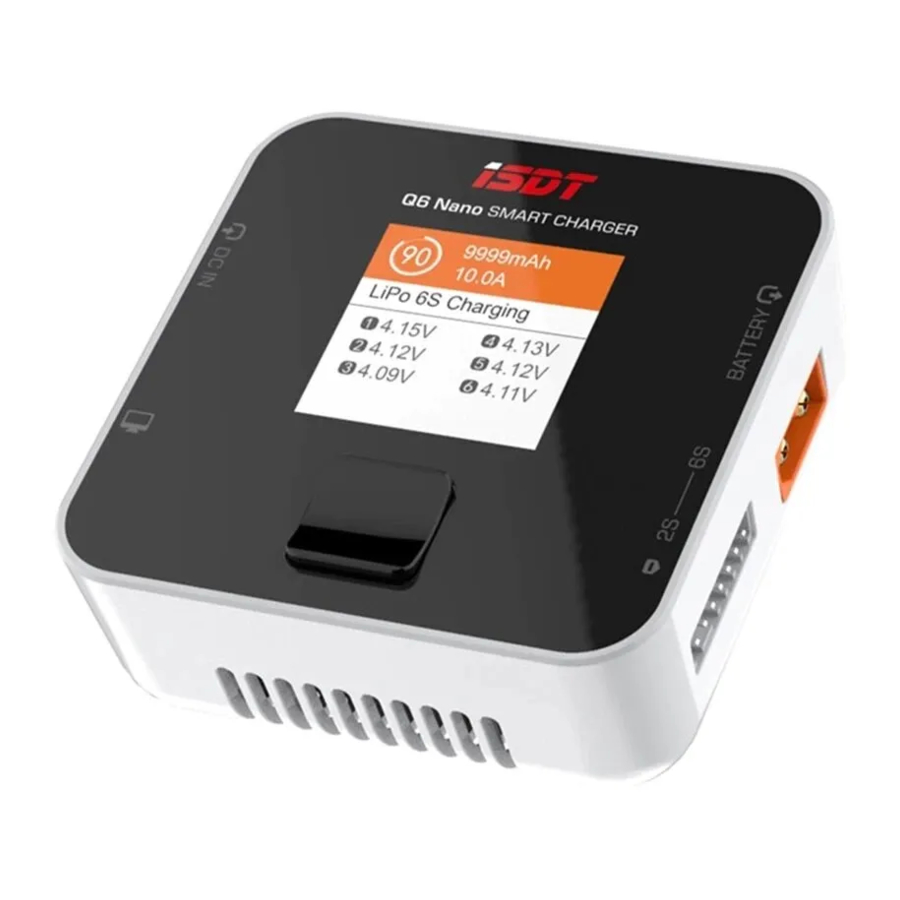

Power on Q6 Nano smart charger, connect the battery, and short press the navigation key to enter the task menu, menu as follows:
Charge
Balancing port is strongly recommended when charging lipo battery, which can make sure to monitor voltage on each cell battery and balance it when charging. Warning beeper will yell before start charging lipo if in non-balance mode(no connecting with balance port).
Current setting range: 0.1~8.0A
The battery type, cell count and charging current are auto set accordingly when connecting with BattGo battery.
Discharge
Current setting range: 0.1~1.0A
The battery type, cell count and discharging current are auto set accordingly when connecting with BattGo battery.
DC Power
The charger can be used as a DC power supply when choosing this function, with adjustable voltage 2.0~30.0V, and current 0.2~5.0A. The battery type, parameter and current are not optional in this task.
Storage
Current setting range: 0.1~8.0A.
The battery type, cell count and storage current are auto set accordingly when connecting with BattGo battery.
Destroy
Connect the battery to be scrapped, and select the scrap function in task options, which capable to discharge the battery to 0V.
Current setting range: 0.1~1.0A
The battery type and cell count are are auto set accordingly when connecting with BattGo battery.
| Task | Charge, Discharge, Destroy, DC power, Storage |
| Battery | LiHv、LiPo、LiIon、LiFe、Pb、NiMh/Cd |
| Battery and cell count | LiFe, LiIon, LiPo, LiHv(1~6S), Pb(1~12S),NiMH/Cd(1~16S) |
| Current | 0.1~8.0A |
Charging Screen
Shift the parameters on display by three-way navigation keys while working, as cell voltage, cell internal resistance, BattGo information, working parameter. The cell voltage and internal resistance only on display in balancing charging mode. The BattGo information will display only when connected to the BattGo battery, and the cell voltage is able to display without connected to the balance port.
System Setting Menu
Under the standby interface, Press and hold the middle position of the three-way navigation keys to display the system setting menu:
Min. input voltage protection 10~24V: all tasks in operation will be stopped at once and hint warning of low voltage, when the input voltage is lower than the input voltage as set up. It will protect the battery from being discharged when using battery pack as power supply.
Max. input power setting 30~230W: if the input power is smaller than the max working power (230W), please set up the parameter as the actual output power as max input, to protect the input power and enable the charger to work stable.
Buzzer volume: The operation sound will be shielded when the volume is off, except the warning error beep.
Self-test: Enter system setting. select self-test task
Calibration: the input voltage, output voltage and balance voltage of the charger can be calibrated with this task.
NEVER USE CHARGER UNSUPERVISED
- Never attempt to charge primary (non-rechargeable) batteries.
- Batteries pose a severe risk of fire if not properly handled.
- Read entire operation manual before using charger.
- This unit may emit heat during use.
- Only operate this device in a cool ventilated area away from flammable objects.
- Failure to observe safety procedures may cause damages to property or injury.
*All product photos, statements and literature are for reference only.
For up-to-date information, please visit our official web www.isdt.co
ISDT reserves the right of final explanation and revision for the terms.
