Summary of Contents for ISDT Q8 Max

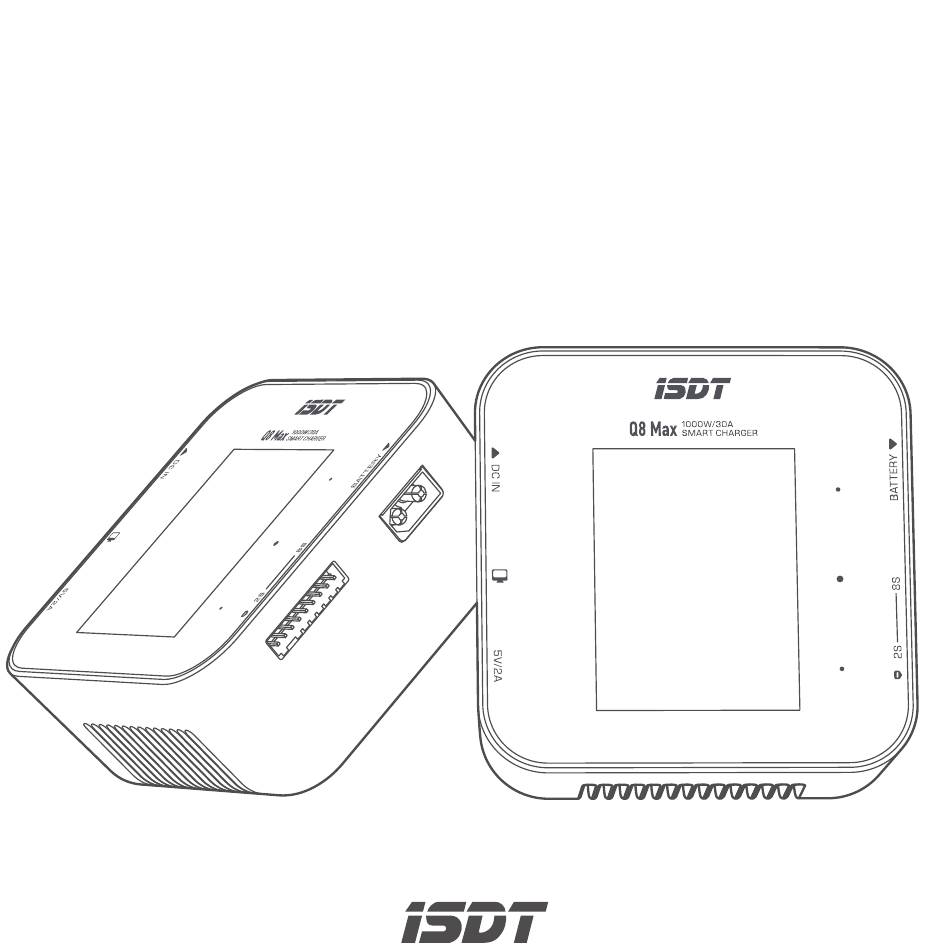

- Page 1 Q8 Max 1000W SMART CHARGER Instruction Manual...
- Page 2 Thanks for purchasing the ISDT Q8 Max Smart Charger. Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation, please refer to the actual functions.
- Page 3 Product Specifications Model No: Q8 Max Input BattGo: Support Input voltage: DC 10~34V Output BattGo: Support Output voltage: DC 1~34V Abnormal voltage alarm: Support Max. input current: 33A Incorrect cell count setting alarm: Support Charging current: 0.2~30.0A Working temperature: 0℃~40℃...
- Page 4 Preset Battery Type of Charger and Task Parameters NiCd/MH LiFe Lilon LiPo LiHv 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V Rated voltage Full charge voltage 1.40V 2.40V 3.65V 4.10V 4.20V 4.35V Storage voltage 3.30V 3.70V 3.80V 3.85V Discharge voltage 1.10V 1.90V 2.90V 3.20V 3.30V...
- Page 5 1C). Due to differences in battery conversion efficiency, the time to complete the charging might be extended. Operating the Charger Power on Q8 Max smart charger, connect the battery, and short touch the middle key of the touch board to enter the task setting menu as follows: Task Charge，Discharge，Destroy，DC power supply，Storage...
- Page 6 Destroy Connect the battery to be scrapped, and select the scrap function in task options, which is capable to discharge the battery to 0V. Current setting range: 0.2~3.0A The battery type and cell count are auto set accordingly when connecting with BattGo battery.
- Page 7 The input voltage, output voltage and balance voltage of the charger can be calibrated with this task. *All product photos, statements and literature are for reference only. For up-to-date information, please visit our official web www.isdt.co ISDT reserves the right of final explanation and revision for the terms. 406Q8MAX000...
