DUAL CHANNEL SMART CHARGER USER GUIDE DC IN SMART CHARGER...
Page 9

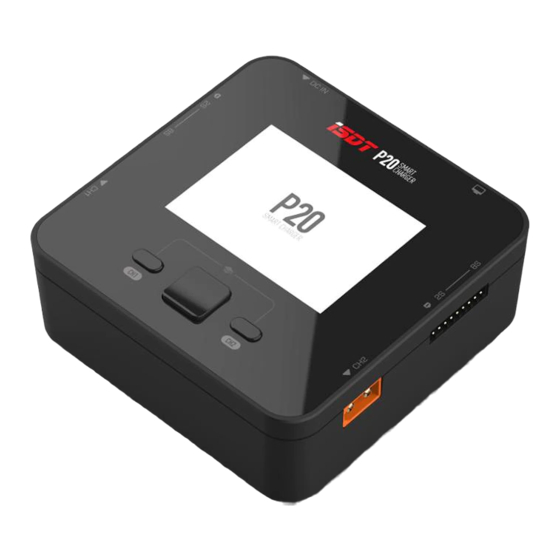

Thanks for purchasing the ISDT P20 Smart Charger. Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation, please refer to the actual functions.
Page 10

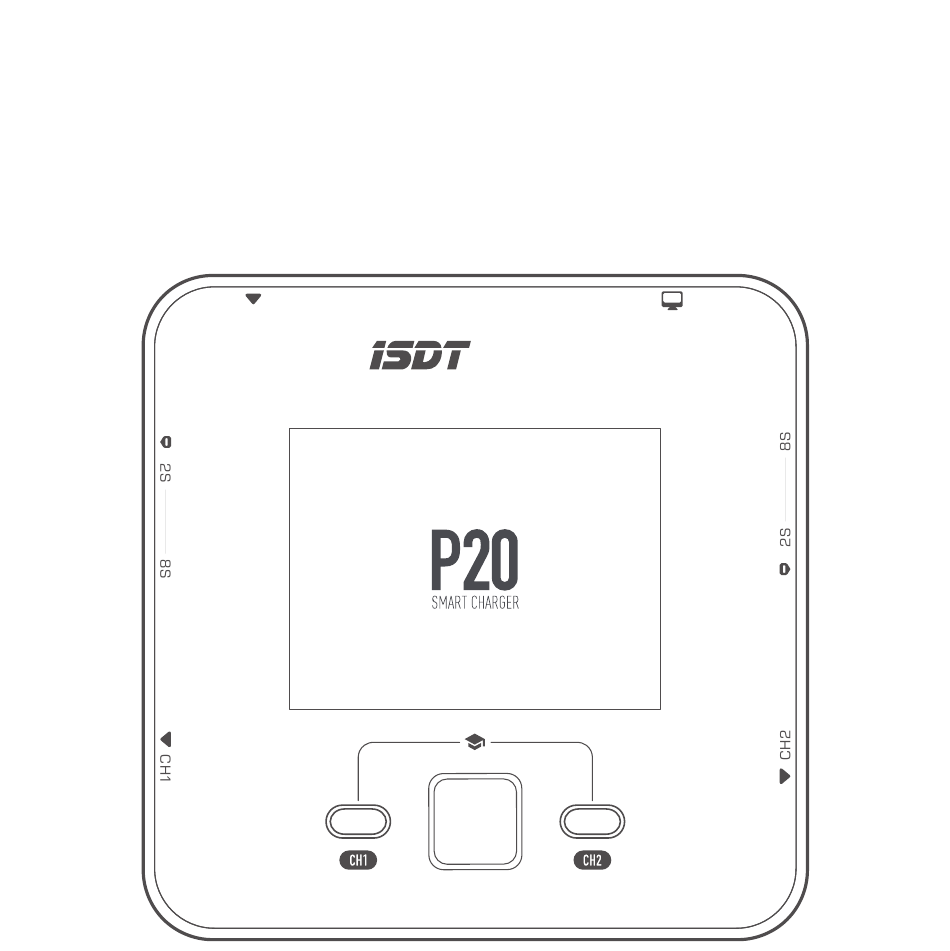

Port / Button Channel Selection Button & CH1 Power Display Direction CH2 Power Output Balance Port Screen Button Balance Port Output SMART CHARGER USB-C Upgrading Port Power Input Fan Vent Key operation instructions (under standby interface) CH1 Channel selection button: Short press to enter the CH1 detailed parameter interface, Long press to enter the CH1 task setting menu.
Page 11
How to Confirm Charging Current Make sure to know the maximum charging current of the battery before charging, never use excessive current to charge to damage your battery, which will result in over heat even explosion during the charging process. The charging and discharging capacity of battery is usually marked with C value.
Page 12
Charge Balancing port is strongly recommended when charging lipo battery, which can make sure to monitor voltage on each cell battery and balance it when charging. Warning beeper will yell before start charging lipo if in non-balance mode (no connecting with balance port). Current setting range: 0.2~20A.
Page 13
Paralled task Select this setting, it could output Max Power to one battery. Find a power splitter or 1/2 power cord, one end connect with the battery, and the other two ends connect with the battery output port. The battery balance port could connect with any of the charger's balance port.
Page 14
The input voltage, output voltage and balance voltage of the charger can be calibrated with this task. *All product photos, statements and literature are for reference only. For up-to-date information, please visit our official web www.isdt.co SHENZHEN ISD TECHNOLOGY CO. LTD reserves the right of final explanation and revision for the terms.
