D2
Smart Charger
Operating Instructions
Ver 1.1.1706

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2 Smart Charger and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISDT D2 Smart Charger

Summary of Contents for ISDT D2 Smart Charger

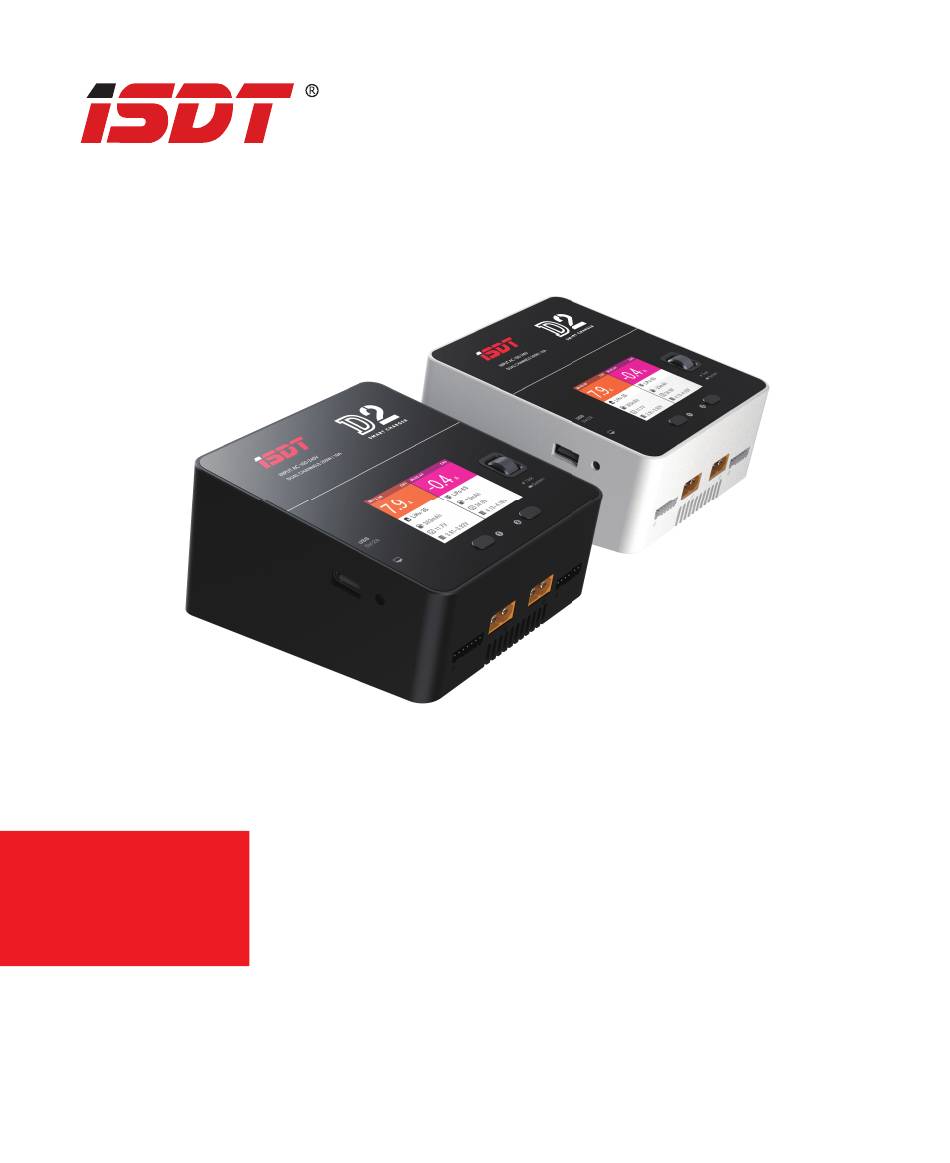

  • Page 1 Smart Charger Operating Instructions Ver 1.1.1706...
  • Page 2 Introduction D2, a built in PSU AC-DC dual smart charger, designed by ISDT Please visit : www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation;...

  • Page 3: Table Of Contents

    Contents Warnings and Safety Tips Product Parameters and Characteristics Default Battery Type of Charger and Task Parameters How to Confirm Charging Current Task Setting Operative Skills Working Parameters Display System Default Troubleshoot...

  • Page 4: Warnings And Safety Tips

    Warnings and Safety Tips The following safety tips are essentially important. Please strictly follow the manual’s instructions in operation to guarantee safety. Improper operation or incorrect working parameter settings may cause damages to the charger and battery and/or result to a fire. Do not use the charger in an unattended manner;...

  • Page 5: Product Parameters And Characteristics

    Product Parameters and Characteristics Thank you for purchasing the ISDT D2 Charger. This Manual will guide you how to use D2 and its important functions. You can know more about relevant information of IDST products by following this link: www.isdt.co 1.
  • Page 6 Product Parameters and Characteristics 108MM 70MM 120MM 47MM Specifications: Input Voltage: AC 100-240V Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S) Charge Current: 0.1-12.0A *2 NiMH/Cd(1-16S) Discharge Current: 0.1-3.0A *2 Pb(1-12S) Max Charge Power: 200W Display: 2.4 320x240 IPS LCD Max Discharge Power: 5W *2 Operating Temperature: 0-40°C...

  • Page 7: Default Battery Type Of Charger And Task Parameters

    Default Battery Type of Charger and Task Parameters NiCd/NiMH LiFe Lilon LiPo LiHv Rated Voltage 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V Full Charge Voltage 1.40V 2.46V 3.65V 4.10V 4.20V 4.35V Storage Voltage Not supported Not supported 3.30V 3.70V 3.80V 3.85V Discharge Voltage 1.10V 3.30V...

  • Page 8: How To Confirm Charging Current

    How to Confirm Charging Current It is very important to know the maximum charging current of the battery as excessive current could influence the life span of battery and/or cause damages. In addition, exces- sive current can cause heating and/or explosion of the battery during the charging process.

  • Page 9: Task Setting

    Task Setting Recommended Voltage End-voltage setting Connect the charger to the power supply and wait for the system to complete the self testing. Connect the battery to the charger under standby interface, and short press the shuttle key to make the task setting menu to pop up. The items in the menu are as follows: Task Select task contents: Charge, Discharge, Storage Battery type...
  • Page 10 Task Setting The working mode of the charger is series charging; you must therefore connect it to the output line of the battery while charging. For a lithium battery, it is highly suggested that the balanced interface should be connected to carry out balanced charging to accurately monitor the voltage of each cell and balance the ones with bad consistency.
  • Page 11 Task Setting Since the way of internal resistance measurement varies, it cannot be realized to measure the absolute value as professional internal resistance tester does. There- fore, the internal resistance value can only be referred to when conducting horizon- tal comparisons, such as judging the consistency of the cells’ performance or making comparisons of the performance of different cells.
  • Page 12 Task Setting Simutaneously charging in both channels While two batteries are the same type and same cells, complete charging setting. press bothselect button to initiate task. Both channels operate under same parameters and would be assigned 50/50 from total power. Power distribution single channels operation can reach 200w both channels simultaneously initiate task would get 100w for each...

  • Page 13: Operative Skills

    Operative Skills Speed Shuttle Select Button 1. during operation, short press select-button to adjust charging/discharging current; 2. long press select-button, to quick stop current operation or to enter setting menu for corresponding channel; 3. While two batteries are the same type and same cells, complete charging setting. press both select-button simultaneously to initiate task.

  • Page 14: Working Parameters Display

    Working Parameters Display Task operation time Device Name Current channel Present current Capacity charged Battery type – string number Current task status Cell voltage Fast Charging Scroll the shuttle key during operation can switch the display information in the lower half of the screen, which are cell voltage, cell internal resistance and working parameter.
  • Page 15 Working Parameters Display Device Name Operation Time Present Current Capacity Charged Battery parameters & Operation Status Resistance of each cell Fast charging complete Operation Time Name of your Q6+ Present Current Capacity Charged Battery parameters & Operation Status Finished charging output voltage/power PCs of batteries after boot Finished charging PCs...

  • Page 16: System Default

    System Default Long press the shuttle key in standby interface to make the system default menu pop up, and the items are as follows: Backlight Backlight adjustment:High,Middle,Low and Auto Volume Buzzer volume adjustment:High, Middle ,Low&OFF Completion Tone Completion Tone:Single time and Repeatable time Split Display Main page dual channel disaplay Manual and Auto Language...

  • Page 17: Troubleshoot

    Troubleshoot Error in power on self-testing: the charger can automatically carry out a self-testing when connected to a power supply. A self-testing error warning sound should be heard when the charger is connected to the battery; power on after removing the battery for 5 minutes.
  • Page 18 WWW.ISDT.CO Manufacturer Shenzhen ISD Technology CO.,LTD Address: Rm 302, Building 11th, Pingshan Creative Industry Park, Pingshan 1 Road, Nanshan District, Shenzhen, PRC Email:hi@isdt.c Changes in specifications and data will not be further noticed.
