- Page 1 500W SMART CHARGER Instruction Manual...
- Page 2 Thanks for purchasing the ISDT Q8 Smart Charger. Please visit: www.isdt.co for more details on the functions of this smart charger, as well as purchase various accessories. Functions of products will be kept on upgrading, the manual in your hand may be different from the actual operation, please refer to the actual functions.

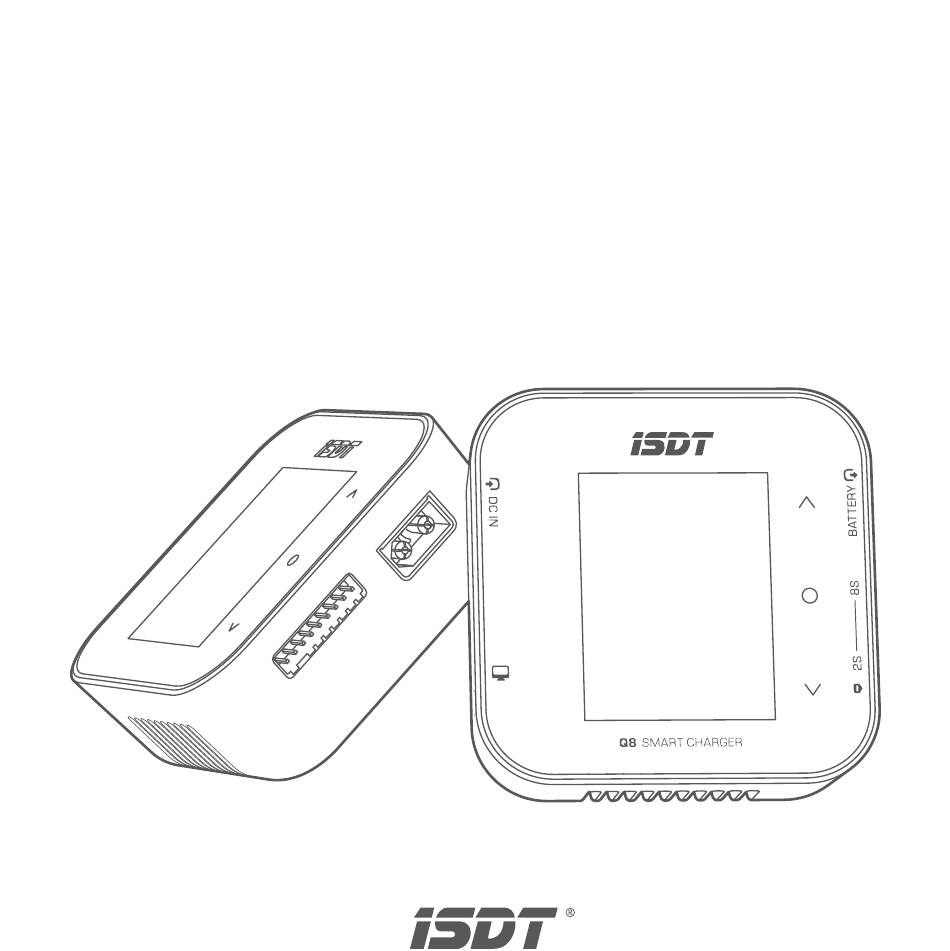

- Page 3 Port / Buttons Power Display Touch Power Balance connection input Screen board output port Fan Vent Dimension：80×80×33mm Weight：170g...
- Page 4 Product Specifications Max. input current：20A Charging current：0.1~20A Input voltage：DC 10~34V Discharging current：0.1~1.5A Output voltage：DC 1~34V Max. charging power：500W Balance current：1.5A/Cell Max Max. discharging power：15W Abnormal voltage alarm：Support Supported battery types and cell count： LiFe,LiIon,LiPo 1~8S ; LiHv 1~7S ; Pb 1~12S ; NiMH/Cd 1~16S Preset Battery Type of Charger and Task Parameters NiCd/MH LiFe...
- Page 5 Operating the Charger Power on Q8 smart charger, connect the battery, and short touch the middle key of the touch board to enter the task setting menu as follows:...
- Page 6 Charge Balancing port is strongly recommended when charging lipo battery, which can make sure to monitor voltage on each cell battery and balance it when charging. Warning beeper will yell before start charging lipo if in non-balance mode(no connecting with balance port). Current setting range: 0.1~20A The battery type, cell count and charging current are auto set accordingly when connecting with BattGo battery.
- Page 7 Destroy Connect the battery to be scrapped, and select the scrap function in task options, which capable to discharge the battery to 0V. Current setting range: 0.1~1.5A The battery type and cell count are are auto set accordingly when connecting with BattGo battery. Task Charge/Discharge/Storage/DC power supply/Destroy Battery...
- Page 8 02:34:45 20.5 9999 ISDT LiPo 6S 99999mAh BattGo 5.0C / 35.0C information LiPo 8S Charging 2019-01-23 Voltage Cells IR 4.15V 4.15V 23.3mΩ 23.3mΩ cell 4.15V 4.15V 23.3mΩ 231mΩ internal 23.3mΩ 23.3mΩ resistance 4.15V 4.15V 3.3mΩ 23.3mΩ 4.15V 4.15V System info 23.5V / 500W...
- Page 9 • Failure to observe safety procedures may cause damages to property or injury. *All product photos, statements and literature are for reference only. For up-to-date information, please visit our official web www.isdt.co ISDT reserves the right of final explanation and revision for the terms.
