Summary of Contents for involight NL410

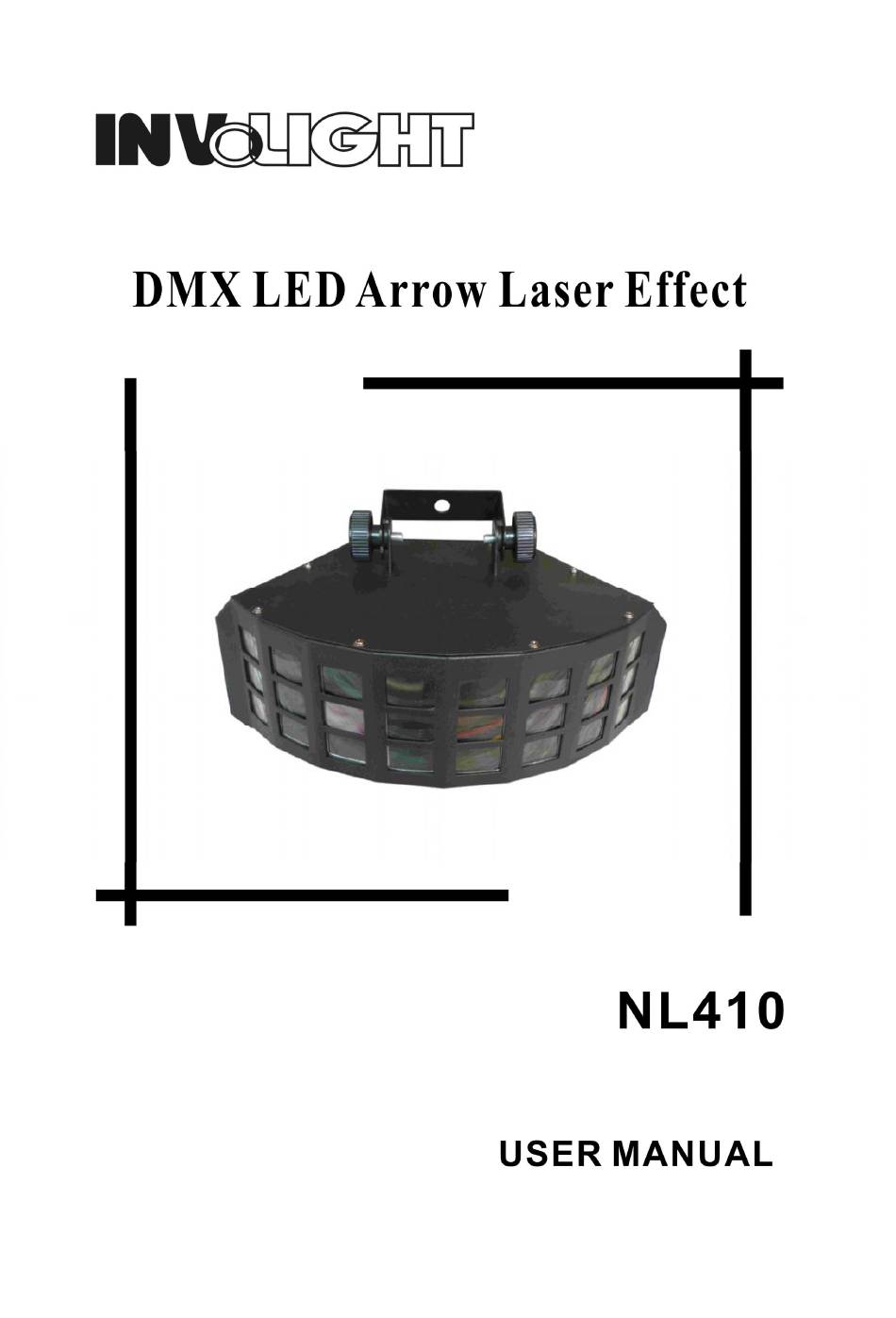

  • Page 2 DMX LED Arrow Laser Effect Manual Our DMX LED arrow laser effect light offers many wonderful effects which are very magic and dynamic. It is designed for professional places, such as stages, disco, night clubs etc. please read the manual before operation. A.
  • Page 3 select the programs ( ) and select the desired program value。 For example, When it shows , press “SETUP”button for the first time, it will show , you can set the LEDs running speed of the program by“UP”and“DOWN” . Press “SETUP”button for the second time, it will show , then you can set the flash frequency for it by “UP”and“DOWN”.
  • Page 4 DMX mode 1: d-P1 Motor LEDs LEDs running LEDs flash Motor running DMX value retention Programs speed frequency speed time NO USE NO USE 1--15 PROGRAM01 16--31 PROGRAM02 32--47 PROGRAM03 48--63 PROGRAM04 64--79 PROGRAM05 80--95 PROGRAM06 96--111 PROGRAM07 SPEED 0--255 SPEED 0--255 TIME 0--255 FLASH...
  • Page 5 147--167 168--188 189--209 210--230 RGBW 231--251 RGBYW Sensitivity 252--255 Sound Mode 0--255 3. Slave mode press “MODE”button to select to run the slave mode. 5. Sound mode press “MODE” button to select to be run, press “SETUP” button, it shows (activated one time, running one step), if soft music, this mode is better.
