General Information
Internal Storage
See
Figure
2-5. The interior of the cabinet can be used
for storing nonflammable items such as shore power
cords, small equipment, or tools when the unit is not in
operation. Locking doors (A) on each side of the cabinet
provide access to the cabinet interior.
NOTE: Cabinet is not waterproof.
A

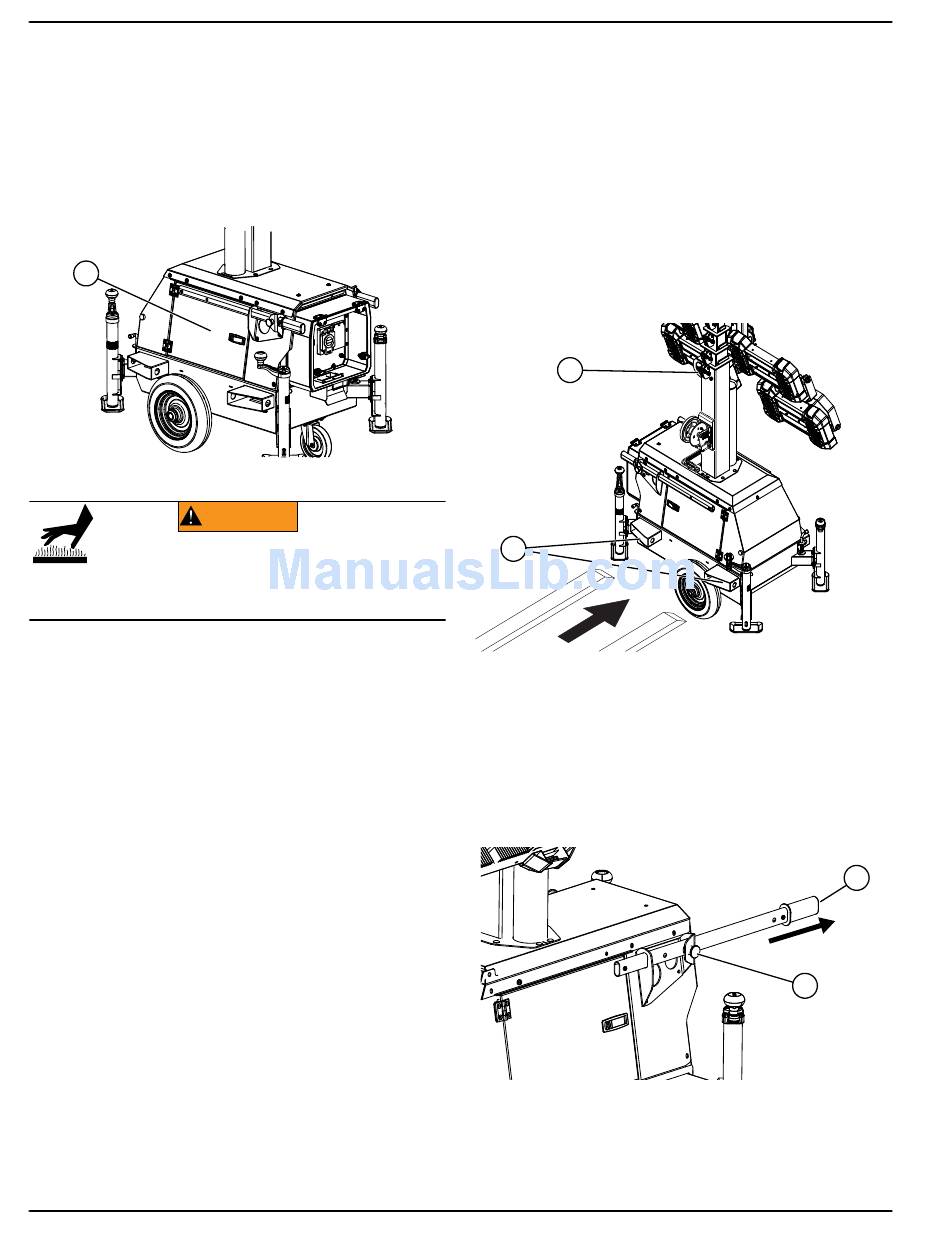

Figure 2-5. Internal Storage
WARNING
Hot Surfaces. When operating machine, do not
touch hot surfaces. Keep machine away from
combustibles during use. Hot surfaces could
result in severe burns or fire.
The LED drivers are mounted inside the cabinet behind a
heat guard at the back of the unit (control panel end). The
drivers become very hot during operation. Use care when
adding or removing items from internal storage, and
avoid touching the heat guard. Verify heat guard vents
are clear of obstructions.
Lifting and Transporting
This unit is equipped with a lifting eye and forklift pockets
for lifting the unit on and off a transporting vehicle.
Wheels
and
handles
maneuvering the unit at the work site.
IMPORTANT NOTE: This unit is not designed to be
towed. Never attempt to tow this unit behind a
vehicle.
Lifting the Unit
NOTE: Always remain aware of people and objects
around the unit while preparing, maneuvering, and lifting
the unit.
1. Verify the equipment being used to lift the unit is in
good condition and has sufficient capacity. For
approximate weights, refer to Specifications.
2. Verify the mast is completely lowered.
3. Verify the outriggers and jacks are fully retracted.
10
(000108)
are
provided for manually
4. Close and lock both access doors and the control
panel.
5. See
Figure
following methods:
•
Attach slings, chains or hooks directly to the central
lift point (A). Verify the LED fixtures will not be
damaged when lifting.
•
Use a forklift. Approach the forklift pockets (B) only
from the side as shown. Avoid approaching the unit
at an angle, as this can permanently damage the
forklift pockets, wheels, or cabinet. Make sure any
obstructions are clear of the forklift tines before
lifting.
A
003545
B
Figure 2-6. Lifting The Unit
Transporting the Unit
See
Figure
2-7. Wheelbarrow-style handles (C) are
provided for maneuvering the unit at the work site. Pull
the spring-loaded knobs (D) and fully extend each
handle. Then release the spring-loaded knobs to lock the
handles in place.
Figure 2-7. Extending the Handles
2-6. To lift the unit, use one of the
Owner's Manual for PLT240 Light Tower
003542
C
D
003541
