General Information

Component Locations

F
E
C
D
B
A. Forklift pockets / tie-down locations
B. Swiveling caster (lockable)
C. Control panel
D. Water protection shield
E. Quick start guide
F. LED fixtures (4)
8
G
A

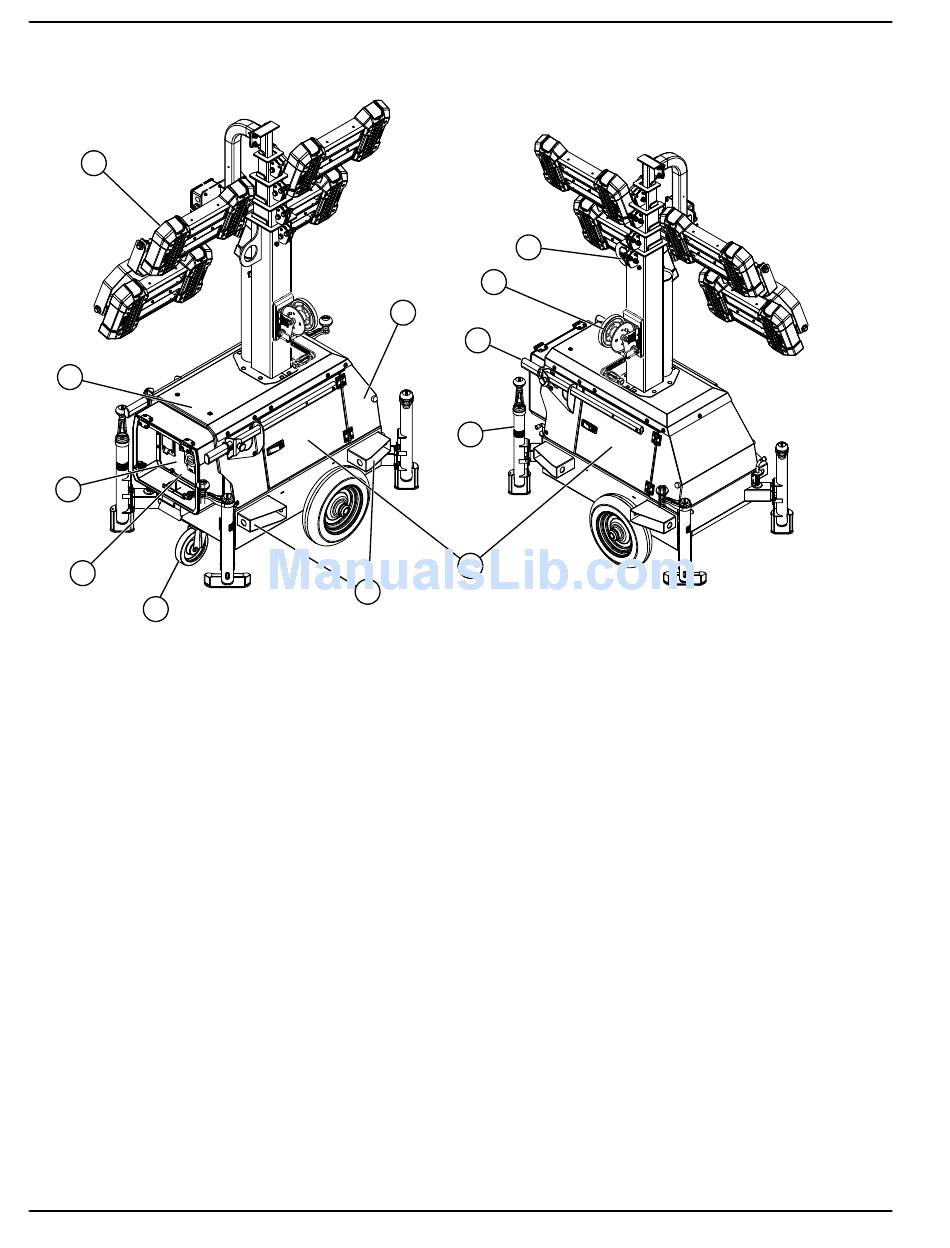

Figure 2-3. Component Locations—Front and Left Side
L
K
J
I
H
G. LED Drivers (inside cabinet)
H. Lockable storage access door (2)
I. Outrigger and jack (4)
J. Handle (2)
K. Winch
L. Lifting eye
