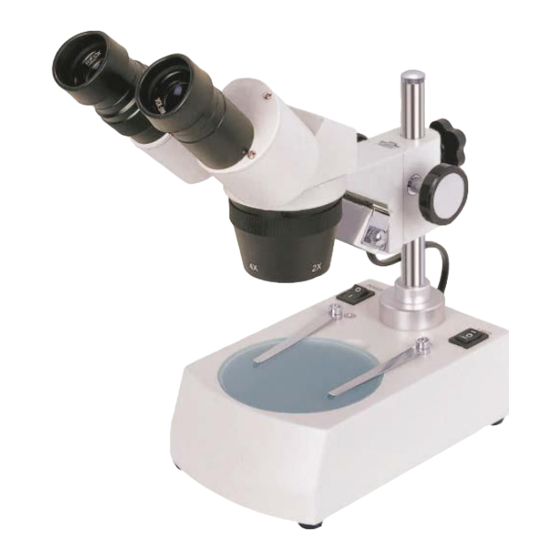

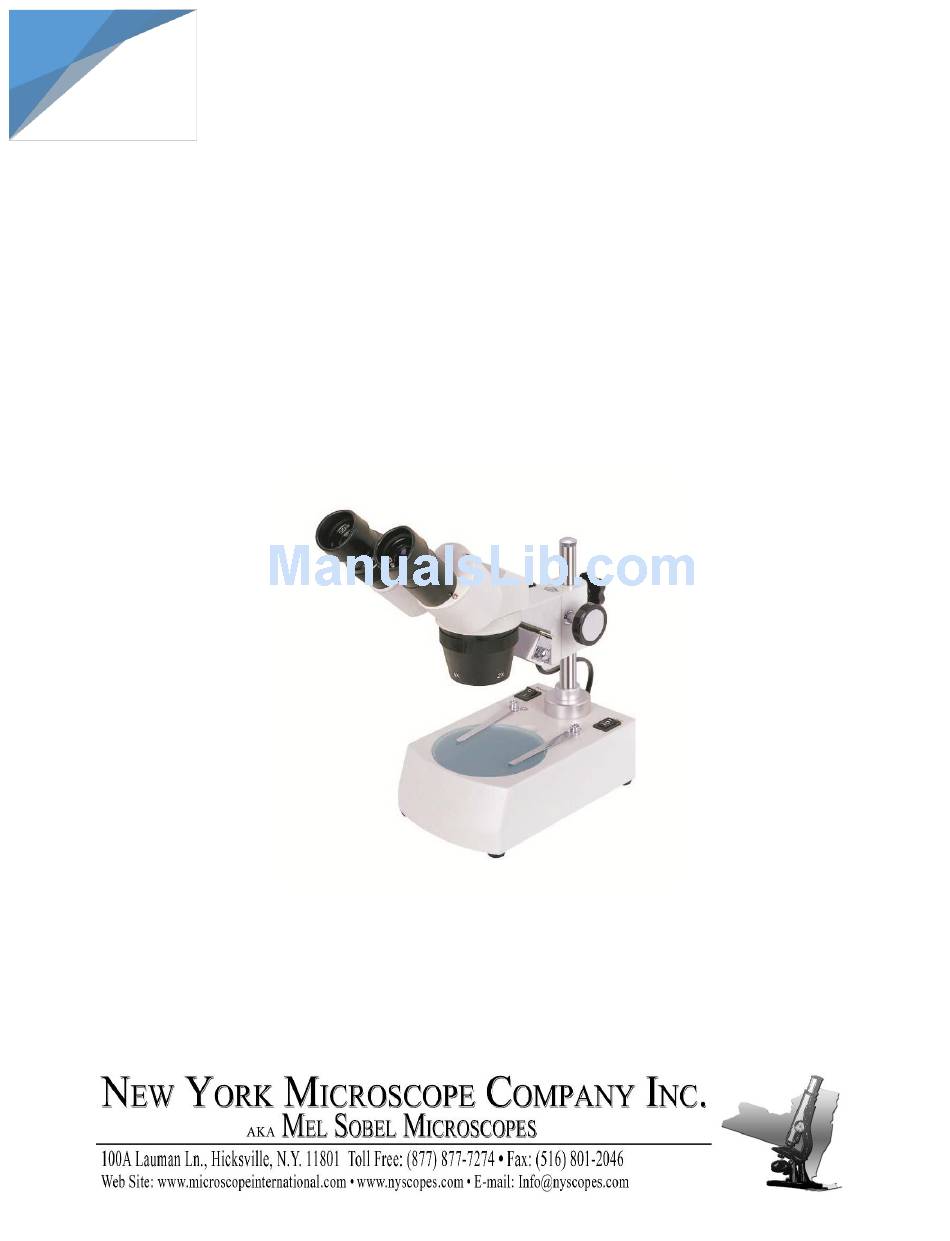

- Page 1 ® STEINDORFF Stereo Microscope NYMCS-310 & NYMCS-311 Operation Manual It is recommended strongly that you study this manual thoroughly before using the microscope. Retain this manual in an easily accessible place near the work desk for future reference.
- Page 2 ® STEINDORFF 1. DESCRIPTION NYMCS-310/311 Stereo microscopes are with fully coated with excellent optical system, high resolution and crisp erect image. They are widely used in electric factories, schools laboratories, sculpture and families, etc. 1. WF10X Eyepiece Focusing Knob 2. Eyepiece Diopter Adjustment Fastening Knob 3.
- Page 3 ® STEINDORFF 2. TECHNOLOGY DATA Power Supply 220V/50HZ (110V/50Hz or 110V/60Hz is optional) Illuminator 12V 10W-tungsten lamp Interpupillary Distance Adjustment 55mm-75mm Diopter Adjustment +5dp Magnification 20X, 40X 3. OPERATION DESCRIPTION A. Set the microscope on a lever table. B. Place the specimen on the center of the stage (6). If need, keep the specimen under the stage clips (5) to fix the objective.
