CSW110
User Manual | Benutzerhandbuch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSW110 and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink CSW110

Summary of Contents for PureLink CSW110

  • Page 1 CSW110 User Manual | Benutzerhandbuch...

  • Page 2: Safety Warnings

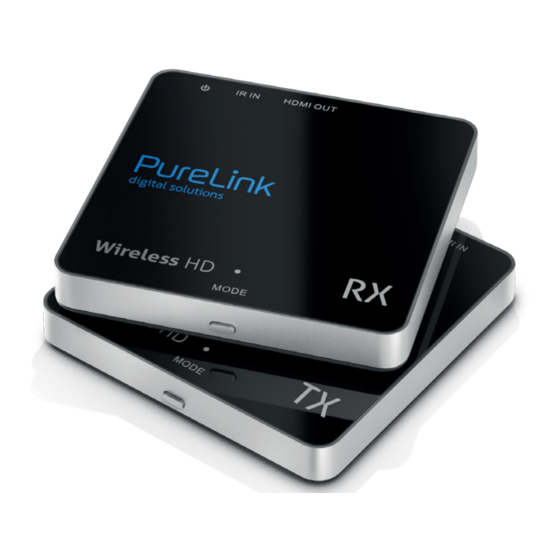

    1. INTRODUCTION Congratulations on your purchase of the PureLink CSW110, which allows you to send a connected HD signal wirelessly to your HDTV or HD projector. Examples of HD devices: Blu-ray players, HD set-top boxes, PlayStation4, XboxOne, etc. The CSW110 supports FullHD resolutions up to 1080p and all 3D formats.
  • Page 3 3. CONNECTION Step 1: Use an HDMI cable to connect the HDMI IN of the CSW110 transmitter with a source device. You can use another HDMI cable to connect the HDMI OUT to a display (Loop-Through). Step 2: Use an HDMI cable to connect the HDMI OUT of CSW110 receiver to a display device.

  • Page 4: Operation

    1. Make sure your input AC voltage is compliant with to the adapter specifications. 2. Only use the power adapters provided with the CSW110. If you use your own adapter, make sure the power output is 5V DC, 1A centre positive.

  • Page 5: Frequently Asked Questions

    6. IF the IR extending function is not work: Check, if the IR emitter is connected to the CSW110 transmitter and place the emitter in front of the source device’s IR receiver. The IR extending function of CSW110 works with all 30~60kHz IR remote control systems.

  • Page 6: Technical Data

    The manufacturer reserves the right to make changes in the hardware, packaging, manual and any accompanying documentation without prior notice. The terms HDMI, HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. CSW110 incorporates HDMI® technology.
  • Page 7 This product is compliant with the following requirements: CE-Conformity RED | 2014/53/EU (Radio Emission Directive) PureLink GmbH hereby declares that the CSW110 radio communication system complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://www.purelink.de/ce/4251364708026_CE.pdf...
