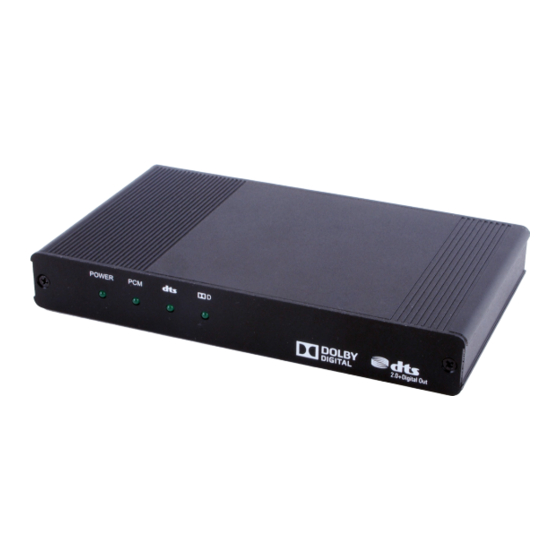

CPRO-SE2DD
HDMI Audio Converter with Dolby
Digital / DTS
®
®
2.0+Digital Out Decoder
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPRO-SE2DD and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP CPRO-SE2DD

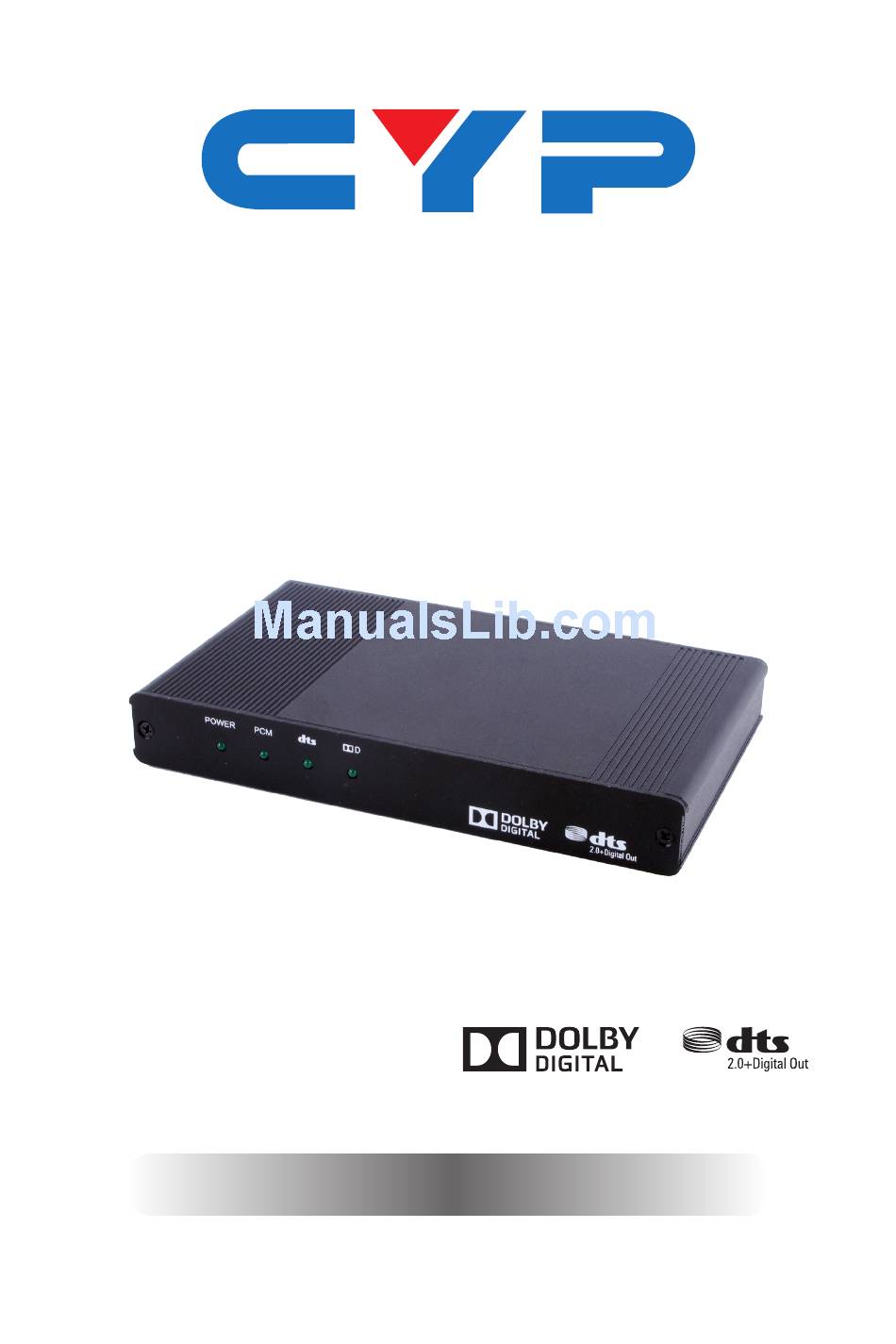

  • Page 1 CPRO-SE2DD HDMI Audio Converter with Dolby Digital / DTS ® ® 2.0+Digital Out Decoder Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8.
  • Page 6: Introduction

    1. INTRODUCTION ® ® HDMI Audio Converter with Dolby Digital / DTS 2.0+Digital Out Decoder allows an HDMI input audio signal to be extracted and simultaneously split to both digital and analog audio output. Eliminating audio termination or stuttering sound on enjoyment of audio entertainment world.
  • Page 7: Features

    5. FEATURES • Dolby Digital Decoder technology embedded • DTS 2.0+Digital Out technology embedded • Integrated digital interpolator filter and Digital-to-Analog Converter (DAC) • Supports LPCM input sampling rate up to 96kHz and 2-CH output at 48kHz ® ® • Support Dolby Digital/DTS sampling rate up to 48kHz •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER: This LED will illuminate in green when the device is connected with power supply. PCM LED: This LED will illuminate when the input audio source is with PCM format. DTS LED: This LED will illuminate when the input audio source is DTS 2.0+Digital Out encoded.
  • Page 9: Rear Panel

    6.2 Rear Panel OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL HDMI IN: Connect from source equipment such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. HDMI OUTPUT: Connect to HDMI TV/display or HD Amplifier for output image and or audio display.
  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL Active Speakers Amplifier Active Speakers HD TV...
  • Page 11: Specifications

    8. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Input Ports 1 x HDMI 1 x USB (Service Only) Output ports 1 x HDMI 1 x R/L 1 x Coaxial 1 x Optical Power Supply DC 5V/2.6A (US/EU standards, CE/FCC/ UL certified) ESD Protection Human body model: ±8kV (air-gap discharge)
  • Page 12 Video Supports Specification: DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB)
  • Page 13: Audio Specifications

    DVI and HDMI Supported Resolutions Input Output 3840x2160@24/25/30 3840x2160@50/60_YUV420 4096x2160@24/25/30 4096x2160@50/60_YUV420 Audio Specifications: Output T.H.D+N Frequency Output Crosstalk Level (A-Weight) Response HDMI 0 dBFS <0.00001% ±1dBFS >140dB <-160dB HDMI Optical 0 dBFS <0.00001% ±1dBFS >140dB <-160dB Coaxial 0 dBFS <0.00001% ±1dBFS >140dB <-160dB...
  • Page 14: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television High-Definition Multimedia Interface Liquid Crystal Monitor Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPROSE2DD...
