Installation

1. Connect antennas to HPT404BT JL.
WARNING! To avoid serious damage of the equip-
ment, do not use the radio without the antenna.
2. Connect HPT404BT JL to external power
supply (10...30 V).
3. Insert optional SIM card and SD card to the
appropriate card slot if you would like to use
GSM connection to connect to the Internet.

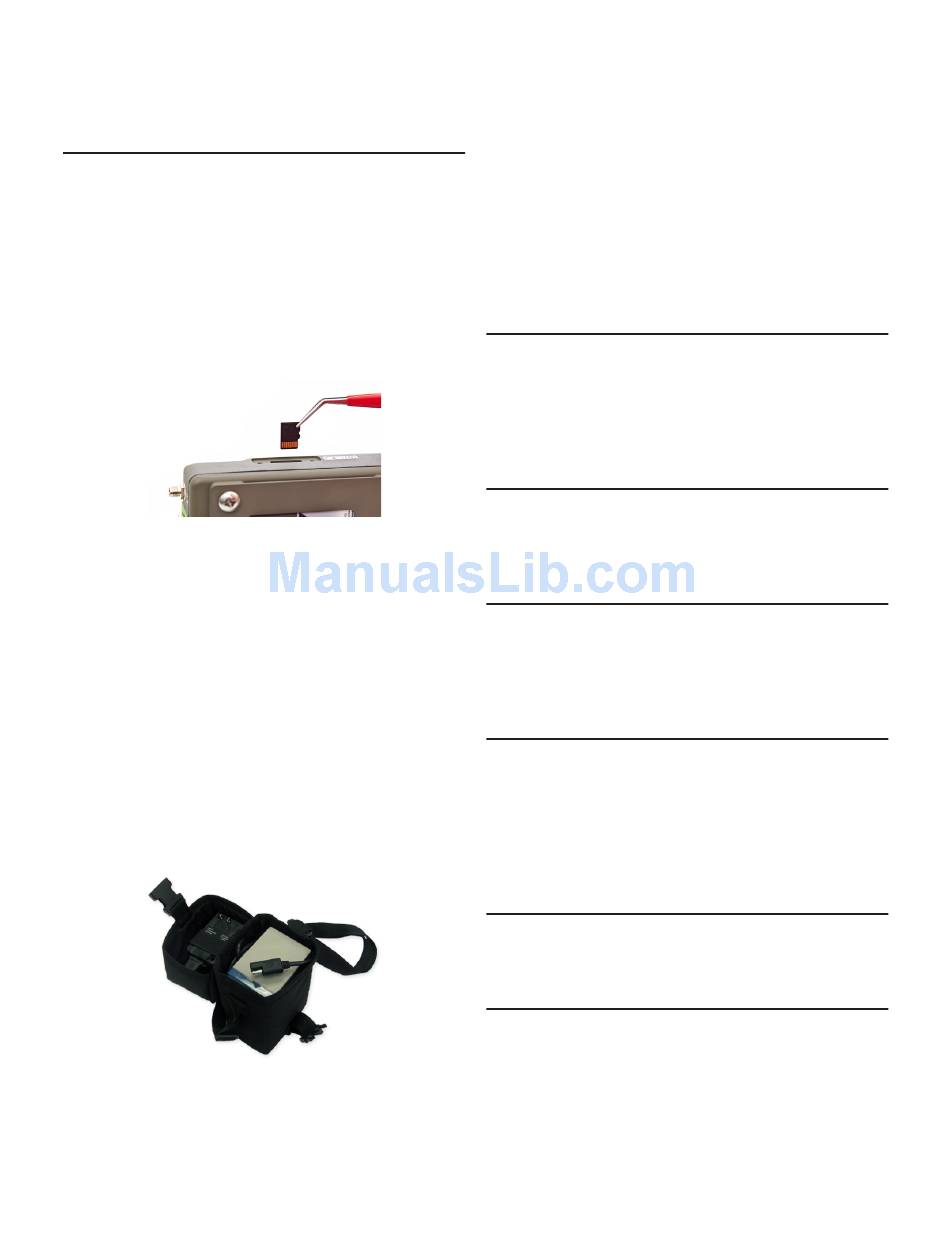

Figure 1. Card (optional) installation
4. Plug in the LAN cable if you would like
to use Ethernet connection to connect to
Internet.
5. Plug in COM PORT cable if you would like
to use CLI interface to communicate with
device.
Powering HPT404BT
To power HPT404BT use the Battery kit 1
(p/n 99-587300-10).
Figure 2. Battery Kit 1
HPT404BT JL USER MANUAL

Power supply requirements

A single external power supply is necessary
to operate HPT404BT JL. The external power
supply needs to be Listed for US and Certified
for EU countries, it needs also to be a Limited
Power Source and rated for Outdoor Use and
have an output rated for +9 ... +36V, 4A. This
may not be the same range as other JAVAD
GNSS products with which you are familiar.
CAUTION: To avoid the introduction of hazards when
operating and installing, before connecting of the
equipment to the supply, make sure that the sup-
ply meets local and national safety ordinances and
matches the equipment's voltage and current require-
ments.
CAUTION: Never attempt any maintenance or clean-
ing of the supply while plugged in. Always remove
supply from AC power before attempting service or
cleaning.
WARNING! If the voltage supplied is below the mini-
mum specification, the modem will suspend opera-
tion. If the voltage supplied is above the maximum
specification, the modem may be permanently dam-
aged, voiding your warranty.
WARNING! Make sure cords are located so that will
not be stepped on, tripped over, or otherwise sub-
jected to damage or stress. Do not operate equipment
with a damaged cord or plug – replace immediately.
To reduce the risk of damage to the equipment, pull
by the plug body rather than the output cord when
disconnecting the equipment.
WARNING! Do not operate the supply if it has re-
ceived a sharp blow, been dropped, or otherwise
damaged. Do not disassemble the supply.
WARNING! Before connecting the external power
source and the modem, make sure that the power
source matches the modem's voltage and current
requirements.
