code 0000. When connection is established
open the web-browser and enter the address
10.1.11.1:8080.
• via WiFi interface: The device (PC,
handheld/pad) should be with WiFi inter-
face. HPT404BT JL WiFi-interface has the
name "HPT404BT JL" and password "test-
test". When connection is established open
the web-browser and enter the address
10.1.10.1:8080.
• via Ethernet: HPT404BT JL LAN static
IP address is 192.168.0.200 and network mask
is 255.255.255.0. On the PC connected to the
same LAN, open the web browser and enter
the address 192.168.0.200:8080. The dialog
window appears with login/password re-
quest. Enter login and password ( jlink/jlink).

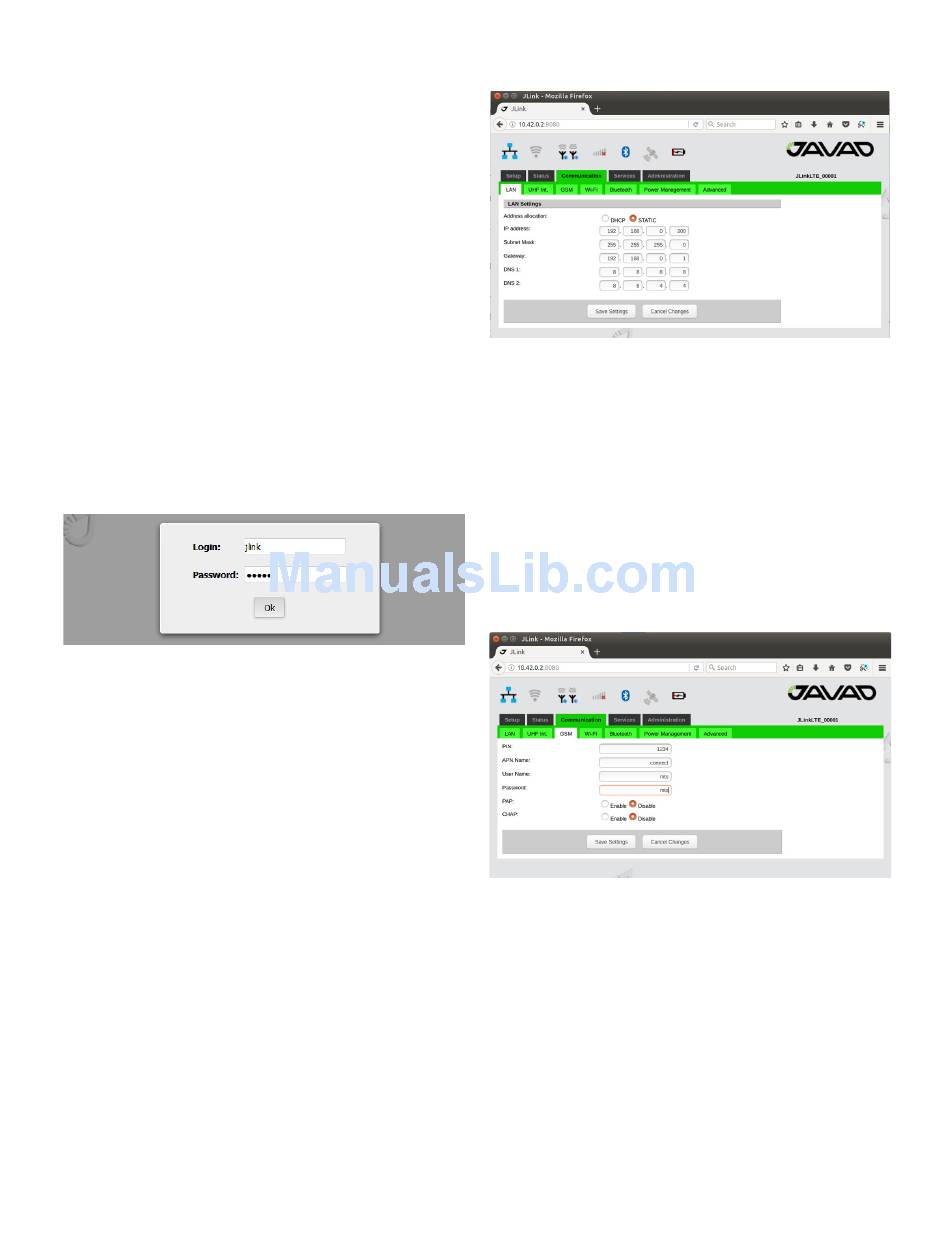

Figure 3. Login and password entering
Thereafter the device is ready for setup and
configuration.
4. Select the interface which will be used to
connect to Internet and configure it. The fol-
lowing interfaces are available:
Ethernet: Configure Ethernet interface in the
Communication/LAN tab. Set the network
parameters and reboot the device using Re-
boot button in the Administration/Manage-
ment tab see figure below.
HPT404BT JL USER MANUAL
Figure 4.
GSM/LTE/4G: Configure this interface us-
ing Communication/GSM tab. Set the APN
parameters (if necessary) and select the
SIM-card slot. In the Communication/Power
Management tab activate the interface and
wait for registering in the network and Inter-
net access availability. More detailed connec-
tion status you can check in Status/GSM tab
see below.
Figure 5.
WiFi client: In the Communication/WiFi it
is necessary to switch the interface to the
client mode. In the Communication/Power
Management tab turn the WiFi interface on.
Select the network you would like to connect
in the Communication/WiFi tab, enter pass-
word to get access and wait for the connec-
tion see below. More detailed connection sta-
tus you can check in Status/WiFi tab.
8
LAN configuration tab
GSM configuration tab
