INSTALLATION
1. Connect antennas to HPT435BT JL.
Warning: To avoid serious damage of the equipment, do not use the radio without
the antenna.
2. Connect HPT435BT JL to external power supply (9...16 V).
3. Insert optional SIM card and SD card to the appropriate card slot if
you would like to use GSM connection to connect to the Internet.

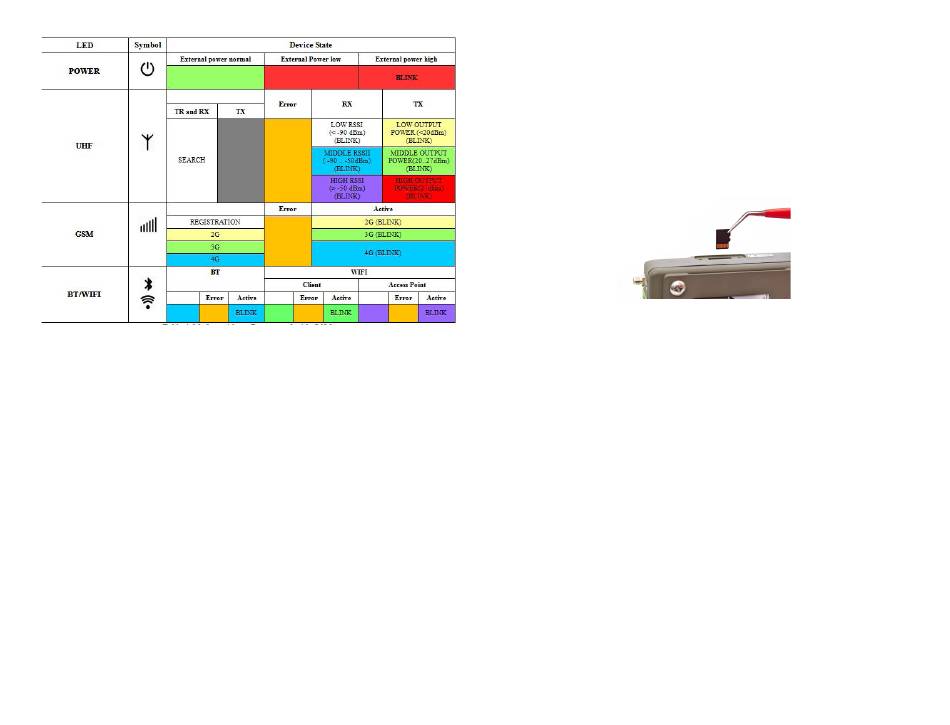

Figure 3. Optional SIM card installation
4. Plug in LAN cable if you would like to use Ethernet connection to con-
Figure 2. HPT435BT JL with battery and cellular module
nect to Internet.
5. Plug in COM PORT cable if you would like to use CLI interface to com-
municate with device.
www.javad.com
7
