Assembly

REQUIRED
 4xM10x130mm
Bolts [5]
 8xM10 Washers
[7]
 4xM10 Nylock
Nuts[9]
 Multy-tool [12]
 8mm Allen Key
[10]
Torque: 240Kgf.cm

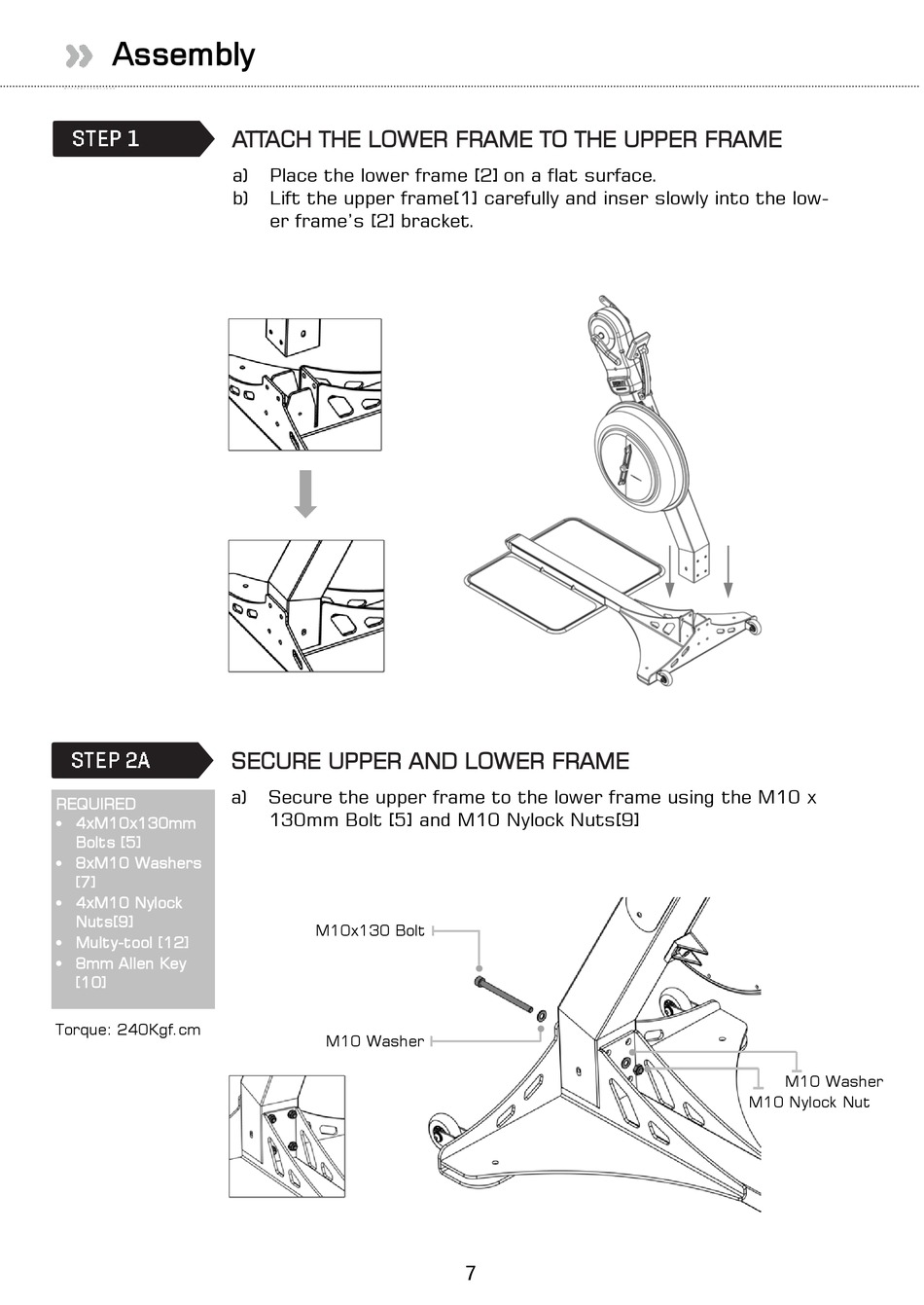

ATTACH THE LOWER FRAME TO THE UPPER FRAME
a) Place the lower frame [2] on a flat surface.
b) Lift the upper frame[1] carefully and inser slowly into the low-
er frame's [2] bracket.
SECURE UPPER AND LOWER FRAME
a) Secure the upper frame to the lower frame using the M10 x
130mm Bolt [5] and M10 Nylock Nuts[9]
M10x130 Bolt
M10 Washer
7
M10 Washer
M10 Nylock Nut
