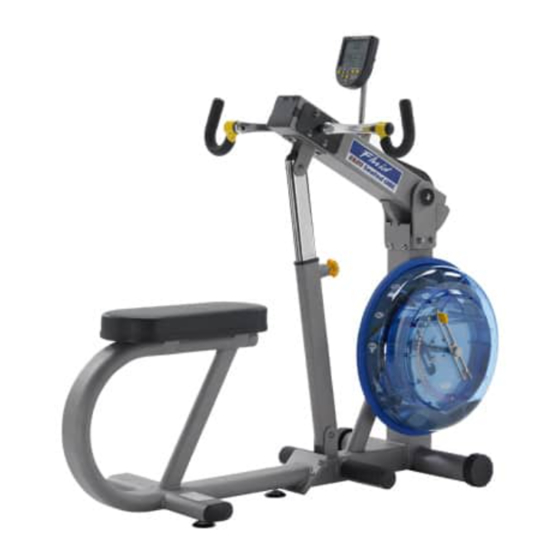

Chain Drive belt Replacement E620

Tank tensioning

bolt

Step 2: Remove tank tensioning bolt with 13mm wrench. Then loosen upper/lower tank bolts with 10mm

allen keys and 19mm wrench. Once tank tensioning bolt is removed and tank bolts loosened, lift tank as

shown to allow drive belt to come off of the 50mm tank pulley.

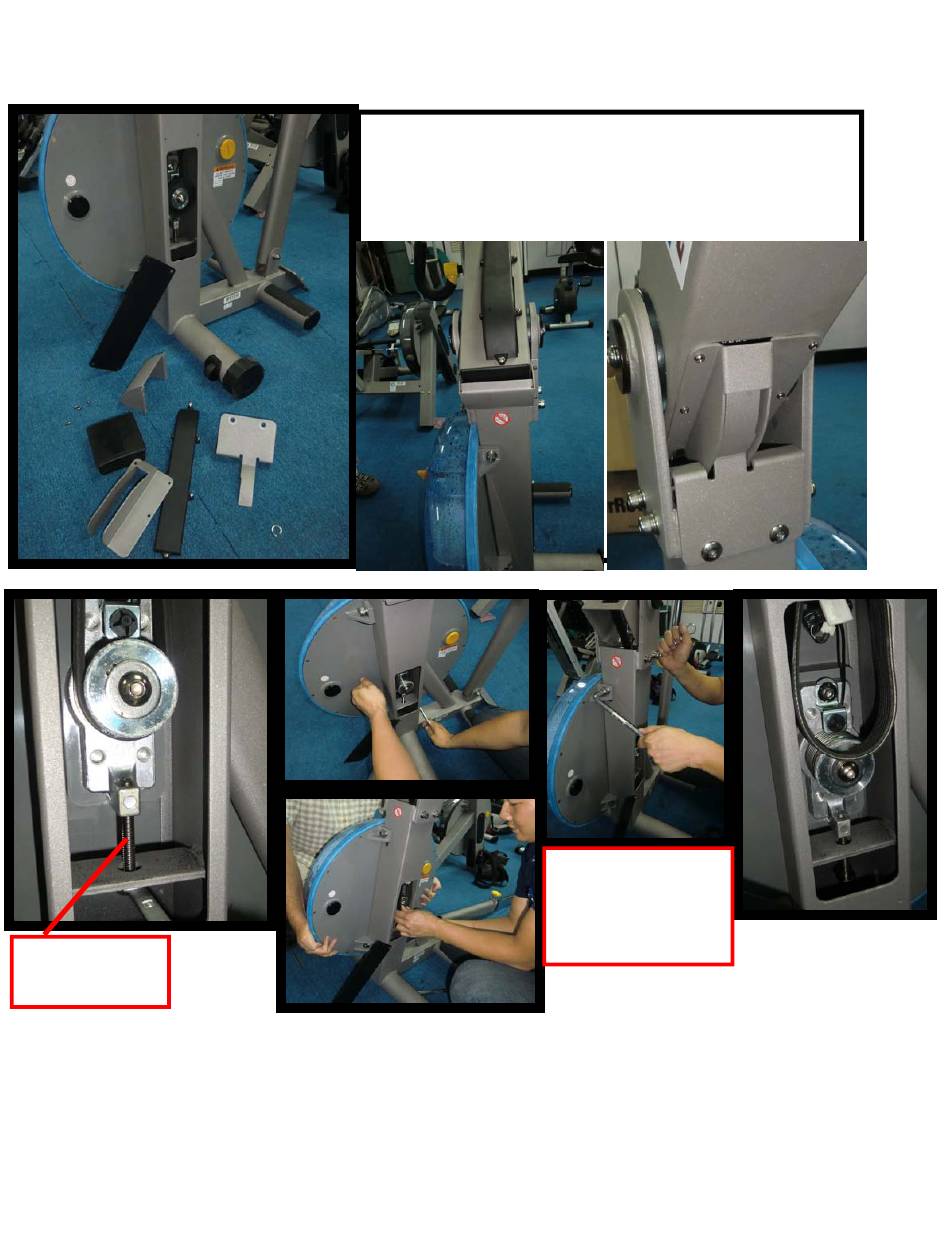

Step 1: Remove upper belt cover, metal front lower

and mid-section Covers. Then removed inspection

plate cover.

Loosen tank bolts

and lift tank to re-

moved drive belt.

Need help?

Do you have a question about the E620 and is the answer not in the manual?

Page 1 Chain Drive belt Replacement E620 Step 1: Remove upper belt cover, metal front lower and mid-section Covers. Then removed inspection plate cover. Loosen tank bolts and lift tank to re- moved drive belt. Tank tensioning bolt Step 2: Remove tank tensioning bolt with 13mm wrench. Then loosen upper/lower tank bolts with 10mm allen keys and 19mm wrench.
Page 2 Step 4: Remove Step 3: Loosen one side of axle crank housing bolt only. Then, tension bolts, but install a longer do not remove. M10 bolt and Then, loosen drive the axle and remove all 8 through. crank arm hous- ing bolts.
Page 3 Step 6: Reassembly: First, after installing the replacement chain/belt, reinstall the axle and secure with bolt. Then, reinstall the telescoping tube to the control arm. Next, lift tank and position belt over tank pulley. Reinstall tank tensioning bolt and magnetic ring. Pull crankhousing assembly rearward and reinstall bolts, remembering to install the upper left/right rear bolts partially through as so to have room to install the tensioning blocks.
