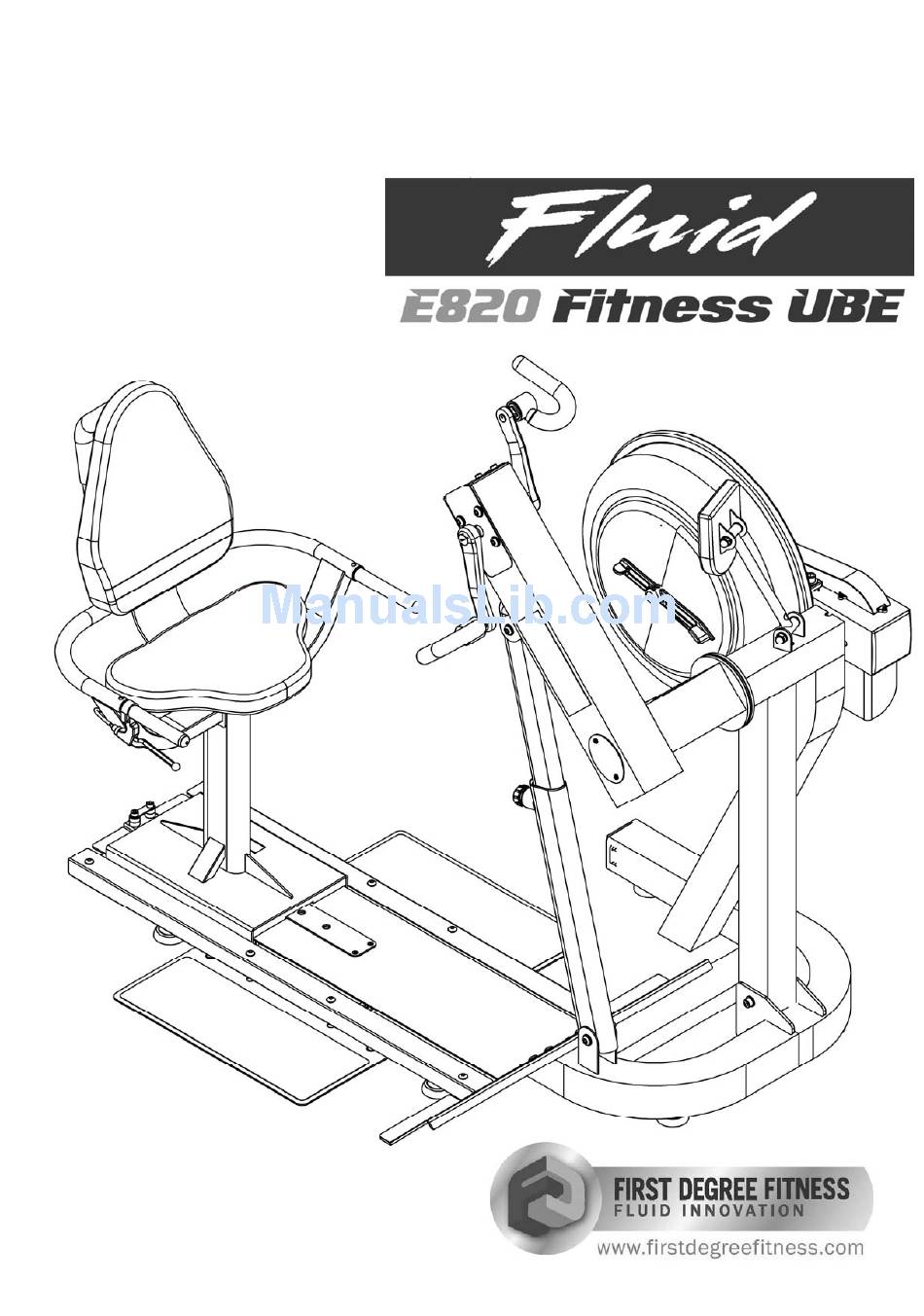

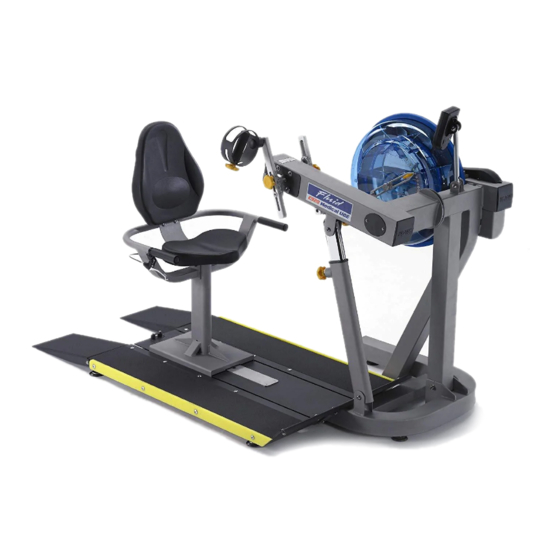

  • Page 1 Owners Manual...
  • Page 2 Training with the E820 As with any piece of fitness equipment, consult a physician before beginning your E820 exercise program. CAUTION Use two hands and follow all safety instructions whenever raising or lowering the E820 control arm. Warning Do not remove hands while crank is in motion. The crank will continue to rotate and could cause injury.
  • Page 3 Box Contents E820 Ix Seat Frame and Baseplate 1x Handle right 1x Main frame with telescoping tube and internal gas assist 1x Fill funnel/hose Hex Key M10x25 21x11x2 Mainframe bolts Frame bolt washers Telescoping tube attachment bolts/ spring washers M10x2 3x Frame levelers 1x Multi-tool Mainframe Nylock...
  • Page 4 E820 Assembly Instructions 4x 8x15mm bolts and 4x M8 spring washers Adjuster knob Step 1: Remove contents from box. Attach telescoping tube to the underside of the control arm using 4x M8x15mm bolts and 4x M8 spring washers. The control arm is heavy and may swing freely during this stage of CAUTION assembly.
  • Page 5 E820 Assembly Instructions Note: Allow 15 minutes for the thread locker to activate before first time use. Check pedal tightness periodically thereafter with a 15mm wrench. Step 4: Secure right pedal onto Crank arm. The pedal threads have a blue coating which will feel very tight when threaded onto the crank arm.
  • Page 6 E820 Baseplate Assembly T-Track Bolt pack Channel Channel Right Left Footplate Foot- Contents: 1x T-Track 2x Footplate 1x Channel Right 1x Bolt Pack (for both baseplate/seat) 1x Channel Left...
  • Page 7 Install the Footplates/Channels: Footplate T-Track Step One: Tilt the T-Channel slightly to allow the footplate (with pre-installed bolts) to slide underneath as shown. Left Channel Channel Slot 4x 8x45mm Slide Channel bolts forward Step Two: Mount the Left Channel over the top of the footplate dome bolts and then slide forward.
  • Page 8 Install Baseplate to Mainframe Completed Baseplate Foot leveler Step One: Stand Baseplate upright to install 4x Foot levelers as shown. Once foot levelers are installed, the completed baseplate can be installed onto the mainframe of the E820. Mounting pins on E820 Mainframe Step Two: Mount the baseplate onto the Mainframe using mounting pins as...
  • Page 9 Install Seat onto Baseplate Seat Stop: Must be lowered to al- low seat onto Baseplate track. Must ALWAYS be in the LOCKED position when seat is occupied on Baseplate. Must be lowered to allow seat re- moval. To LOCK, raise and locate. To UNLOCK, lift and drop rearward.
  • Page 10 Seat Assembly: Seat Main Frame Armrest Assembly Upper Seat back Bolt Pack Seat CONTENTS: 1x Seat Main Frame 1x Lower Seat 1x Armrest Assembly 1x Upper Seat back 1x Bolt Pack (Note Bolts/Washers/Nuts are for both Seat and Footplate)
  • Page 11 Attaching Armrest to Lower frame You will need the Lower Frame, Armrest Assembly and the following bolts/ washers/nuts from the bolt Pack: 1x M8x70mm Bolt 3x M8 Nylock Nut 1x M8x25mm Bolt 1x M8 Washer 2x M8x45mm Bolt Plastic tie Step One: Mount the Armrest onto the Lower frame from behind as shown.
  • Page 12 Attaching Armrest to Lower frame: Step One: Secure Armrest with M8x70mm Bolt, M8 Nylock Nut and M8 Washer as shown Step Two: M8x25mm Bolt Step Three: 2x M8x45mm Bolt,2x Nylock Nut and and M8 Washer 2x M8 Washer...
  • Page 13 Attaching Armrest cable to Cable Pivot: Cable Pivot Cable Pivot Step One: Locate plastic tie, then depress Cable Pivot forward to allow plastic tie to be pulled through the hole in front. Once the cable end is through the hole, slide it forward as shown upper right to prevent cable end from slipping back through.
  • Page 14 Seat Assembly Attaching Upper/Lower Seat Pad: Seat Frame, Upper/Lower Seat Pad, 8x M6x20mm Bolt and 8x M8 Washer Install Lower Seat Pad Using 4x M6x20mm Bolt/Washer Install Upper Seat Pad with as shown with 4x M6x20mm Bolt/Washer. Once seat pads are installed the assembly will be complete.
  • Page 15 The E820 Control Arm Chain tensioning bolts: Allows for tightening the chain or adjustment from side to side. Make sure when tightening only to adjust the same amount for both bolts, otherwise the sprocket will be mis- aligned. Note: Tightening the right bolt only will pull the right side of the crank assembly toward you, tighten- ing the left will pull the left side toward you.

  • Page 16: Tank Filling And Water Treatment

    Tank Filling and Water Treatment Note: A large bucket is required for filling (Not included) In areas where tap water quality is known to be poor, FDF recommends the use of distilled water. Open the rear upper yellow tank plug and insert hose into tank (rotating the impel- ler slightly may be necessary to al- low the hose to pass), move the...

  • Page 17: Long Term Water Treatment And Basic Operation

    Do not use any water treatment other than the tablets supplied with this machine. For re- placement tablets, contact your local First Degree Fitness distributor. Water treatment schedules for the E820 will vary according to the fluid tanks exposure to sunlight, but expect 8-12 months near a bright, sunlit window and 2 years or more for a darker location.
  • Page 18 E820 Ergometer. Note: For complete operational Quick start provides instant workout infor- instructions, please refer to the mation. Just start training to activate. You computer manual, which is in- can choose to change UNITS displayed. cluded with your E820. UNITS displays WATTS, RPM,...

  • Page 19: Using The First Degree Fitness Usb Interface

    Using the First Degree Fitness USB Interface Description: The USB connectivity now built in to all new models of FDF Console and IPM allow you to enhance your exercise experience by connecting to your home PC or Laptop. Using FDF's own sample applications you can exercise while enjoying your favorite movies.

  • Page 20: Maintenance Chart

    Maintenance Chart. Item Timeframe Instructions Notes Seat and Frame. Weekly. Wipe down weekly with lint free cloth or more often with heavy club use. PK belt tension. Monthly. Check monthly for signs of slip- page. Adjust/tighten as required. Tank and water 12 months to 2 years.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide: Fault Probable Solution Cause Water changes color or be- Rower is in direct Change rower location to reduce direct expo- comes cloudy. sunlight or has not sure to sunlight. Add water treatment or had water treatment. change tank water as directed in the water treatment section of this manual.
  • Page 22 Tank Belt Adjustment Step 1: Remove large metal inspec- tion plate as shown above right. Step 2: Using a long tool, push out the rear end cap as pictured above right. This will give you access to the tank tensioning bolt (shown bottom right).
  • Page 23 Main Frame Assembly Refer to Tank Refer to Computer Assembly Assembly 20850 12047 10067 10040 10043 Refer to Crank Arm Assembly Refer to Control Arm Assembly 10170 33937 23921 10072 10066 10070 23144 33938 33941 33100 10096 10082 Description Description Bolt M12x140 10040 10170...
  • Page 24 Seat and Baseplate Assembly 60144 22831 20117 22818 22819 22830 22811 20115 22841 22803 22806 22840 22804 22839 22837 22805 22828 22812 22829 10081 22836 22501 22801 22821 60128 22808 22822 22838 22802 22816 60709 22842 22823 60708 22844 22826 22813 22843 22814...
  • Page 25 E820 Crank Arm Assembly Part No. Description 10081 Washer M6 10082 Washer M10 10171 Bolt M6x8 12047 Handle Complete 12048 Handle Grip 12068 Axle / Sprocket for E820 20020 Bolt M10x35 20052 Side Bearing Cover E720/820 20132 French Screw M8x20xP1.0 Crank End Cap 20133 20134...
  • Page 26 Main Drive Assembly Description 10011 Bearing Housing 10109 10012 NSK 6005ZZ Bearing 10015 Large PK Transmission Pulley 150mm 10083 10138 10017 Key way 7x7x32 10052 Grub Screw M4x6 10052 10083 Bolt M10x20 10015 10109 Belt 7PK 926mm HUTCHINSON 10139 10011 10138 Shaft washer 30x10.2x3t 10017...
  • Page 27 Metal Frame – 10 Year Limited Warranty First Degree Fitness will repair or replace the metal Main Frame should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating.
