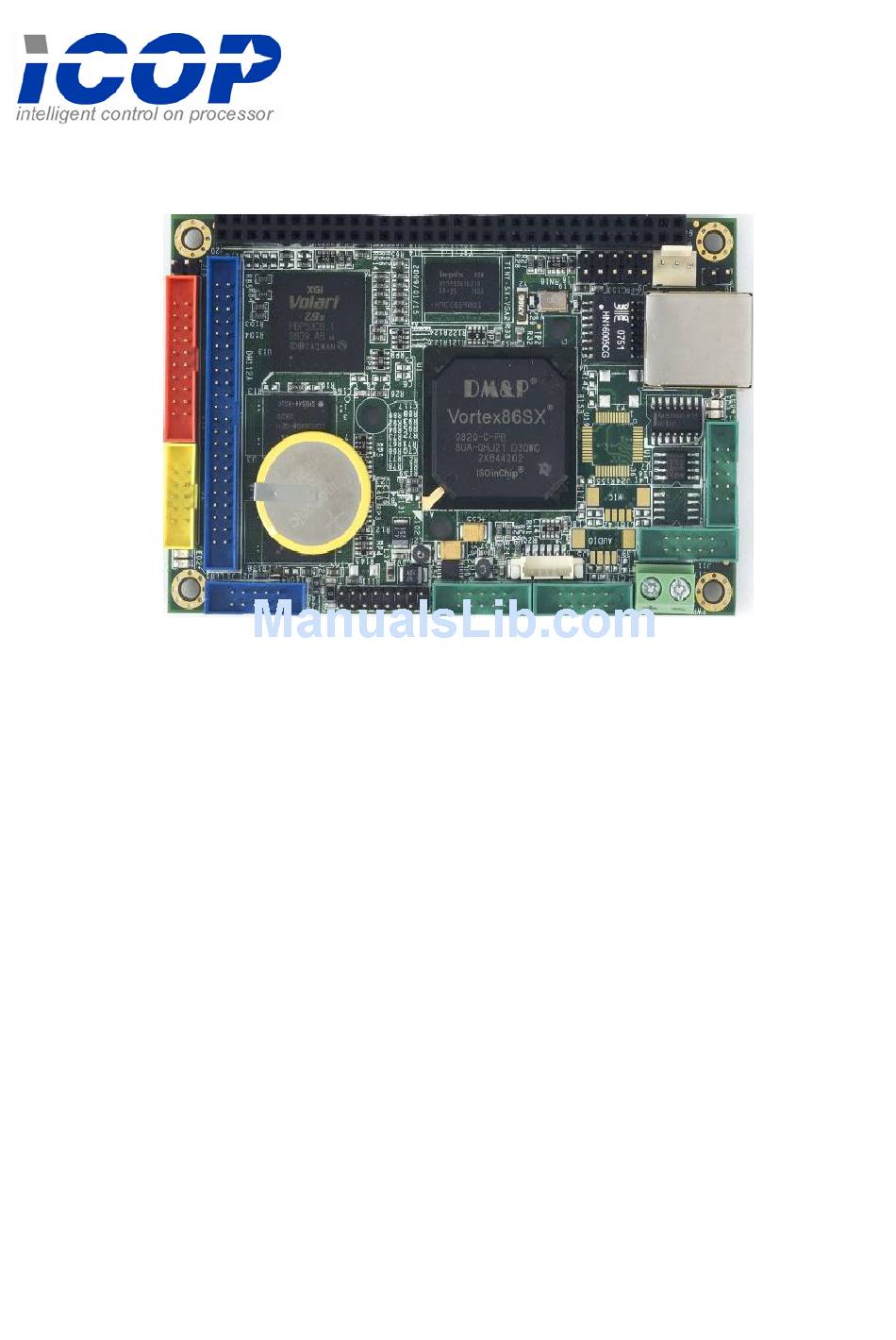

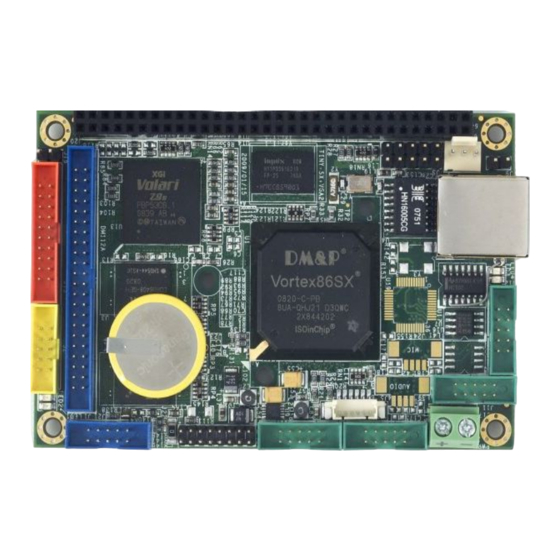

- Page 1 VSX-6114-V2 / VSX-6114-V2-AU DM&P Vortex86SX 300MHz Tiny CPU Module with 4S/2USB/VGA/LVDS/LAN/GPIO 128MB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Chapter 1 Introduction
C h a p t e r Introduction Packing List Product Name Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 VSX-6114-V2 RS232 cable x 4 IDE cable x 1 & USB cable x 1 (USB port x 2 VGA cable x 1... -
Page 5: Product Description
Tiny controller. The VSX-6114-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
Specifications Features VSX-6114-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache BIOS AMI BIOS Bus Interface 16-bit x-ISA interface System Memory 128 / 256MB DDR2 Onboard Watchdog Timer Software programmable from 30.5 us to 512 seconds x2... - Page 7 Power Requirement Single Voltage +5V @ 620mA Dimension 100mm X 66mm (3.94 x2.6 inches) Weight Operating C ~ +70 Temperature -40°C ~ +85°C (Optional) Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module...
-
Page 8: Board Dimension
Board Dimension Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: Audio is optional) Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module... -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module... - Page 11 Jumpers & LEDs Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 10/100Base-T Ethernet LAN 8-pin RJ45 Connector JTAG 6-pin Wafer, 1.25∅ , 6x1 PS/2 Keyboard 5-pin Box Header, 2,54∅,1x5 Buzzer 2-pin Pin Header, 2,54∅,1x2 PS/2 Mouse... -
Page 13: Pin Assignments & Jumper Settings
2.4 Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID... - Page 14 J8: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J9: Buzzer Pin # Signal Name Pin # Signal Name Buzzer J10: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J11: COM 1 Signal Signal Pin #...
- Page 15 J12: COM2 RS232 / 422 / 485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 J13: GPIO (Port 0 / Port 1) Pin # Signal Name Pin # Signal Name GP00...
- Page 16 J16: RESET Pin # Signal Name Pin # Signal Name Reset J17: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J18: COM3 Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J19: COM4 Pin # Signal Name Pin # Signal Name DCD4...
- Page 17 J20: x-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3...
- Page 18 J21: VGA Signal Signal Pin # Pin # Name Name R OUT G OUT B OUT HSYNC VSYNCD J22: LVDS Pin # Signal Name Pin # Signal Name VCC3 (+3.3V) VCC3 (+3.3V) RxIN0+ RxIN0- RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ J23: LINE OUT (Optional) Pin # Signal Name...
-
Page 19: System Mapping
System Mapping Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module... - Page 20 Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module...
- Page 21 Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module...
-
Page 22: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 23: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 24: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 25: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 26: Appendix
Appendix A. LVDS Flat Panel Support Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 5” 640x480 PD050VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 8.9” HannStar 1024x600 HSD089IFW1 10” HannStar 1024x600 HSD100IFW1-A00 10.4” MITSUBISHI 800x600 AA104SG01 10.4”... -
Page 27: Flat Panel Wiring And Lighting
Wiring LCD Cable Please refer to Page 15 (J22: LVDS connector) and Page 23~24. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. Vortex86SX-6114-V2 Vortex86SX™ Tiny CPU Module... -
Page 28: Tcp/Ip Library For Dos Real Mode
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 29: Bios Default Setting
D. BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 30: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
