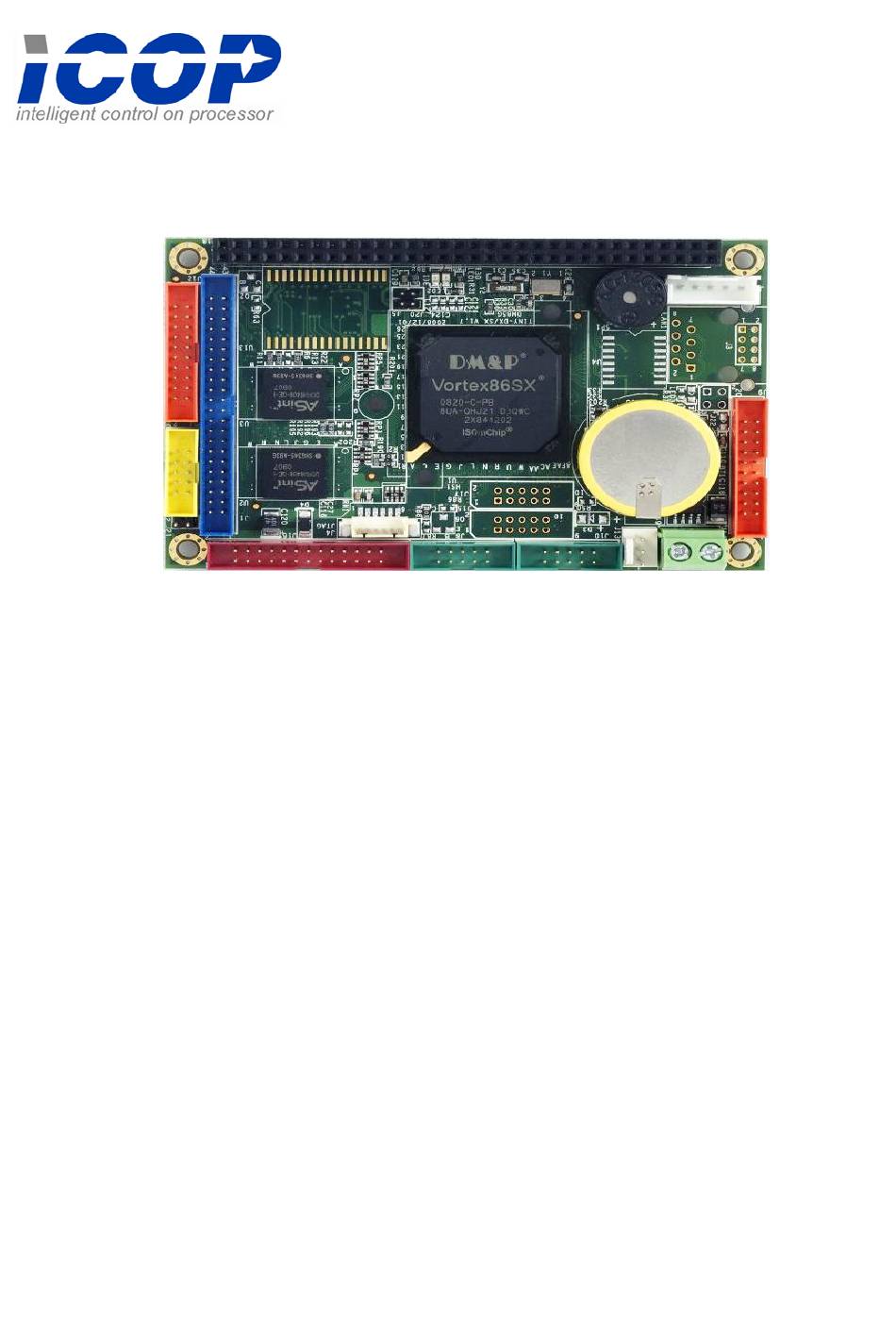

- Page 1 VSX-6116-V2 DM&P Vortex86SX 300MHz Tiny CPU Module with 2S/2USB/2GPIO 128MB DDR2 Onboard User’s Manual (Revision 1.0 A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Chapter 1 Introduction
Introduction Packing List Product Name Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 VSX-6116-V2 RS232 cable x 2 PRINT cable x1 IDE cable x 1 USB cable x 1 (USB port x 2 GPIO cable x 2 PS/2 Keyboard cable x 1 Vortex86SX™... -
Page 5: Product Description
Tiny controller. The VSX-6116-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
1.3 Specifications Features VSX-6116-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache AMI BIOS BIOS 16-bit x-ISA interface Bus Interface 128/ 256MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... -
Page 7: Board Dimension
Board Dimension Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2... -
Page 8: Chapter 2 Installation
C h a p t e r Installation Board Outline (Note1: VGA function support (ICOP-2720) via x-ISA Interface) ICOP-2720: http://www.icop.com.tw/DB/upload/manual/ICOP-2720_Manual%20.pdf (Note2: COM2 RS232/422/485 is selected by BIOS setting) (Note3: J21 Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short) Vortex86SX™... -
Page 9: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2... - Page 10 Jumpers & LEDs Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2...
-
Page 11: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 PS/2 Keyboard 5-pin Box Header, 2,54∅,1x5 COM1 10-pin Box Header, 2.0∅... -
Page 12: Pin Assignments & Jumper Settings
2.4 Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID... - Page 13 J5: RESET Pin # Signal Name Pin # Signal Name Reset J6: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J8: COM 1 (Optional: TTL / GP4) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1...
- Page 14 J10: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 J12: GPIO (Port 2 / 3 ) Pin # Signal Name Pin # Signal Name...
- Page 15 J14: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J16: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2...
- Page 16 J18: x-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3...
- Page 17 J20: Console Redirection (Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name Console_Red J21: JTAG Disable (Default setting: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2...
-
Page 18: System Mapping
System Mapping Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2... - Page 19 Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2...
- Page 20 Vortex86SX™ Tiny CPU Module Vortex86SX-6116-V2...
-
Page 21: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 22: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 23: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 24: Chapter 3 Driver Installation
C h a p t e r Driver Installation Operating system support The Vortex86SX-6116-V2 Tiny CPU board supports Embedded software: Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows CE 5.0 / 6.0 Please get the drivers from the Driver CD which attached with the standard packing of Vortex86SX-6116-V2 board or please get it from DMP official website: http://www.dmp.com.tw/tech/vortex86sx/ Vortex86SX-6116-V2 also supports most of the popular Linux distributions, for more detail... -
Page 25: Appendix
Appendix BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 26: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
