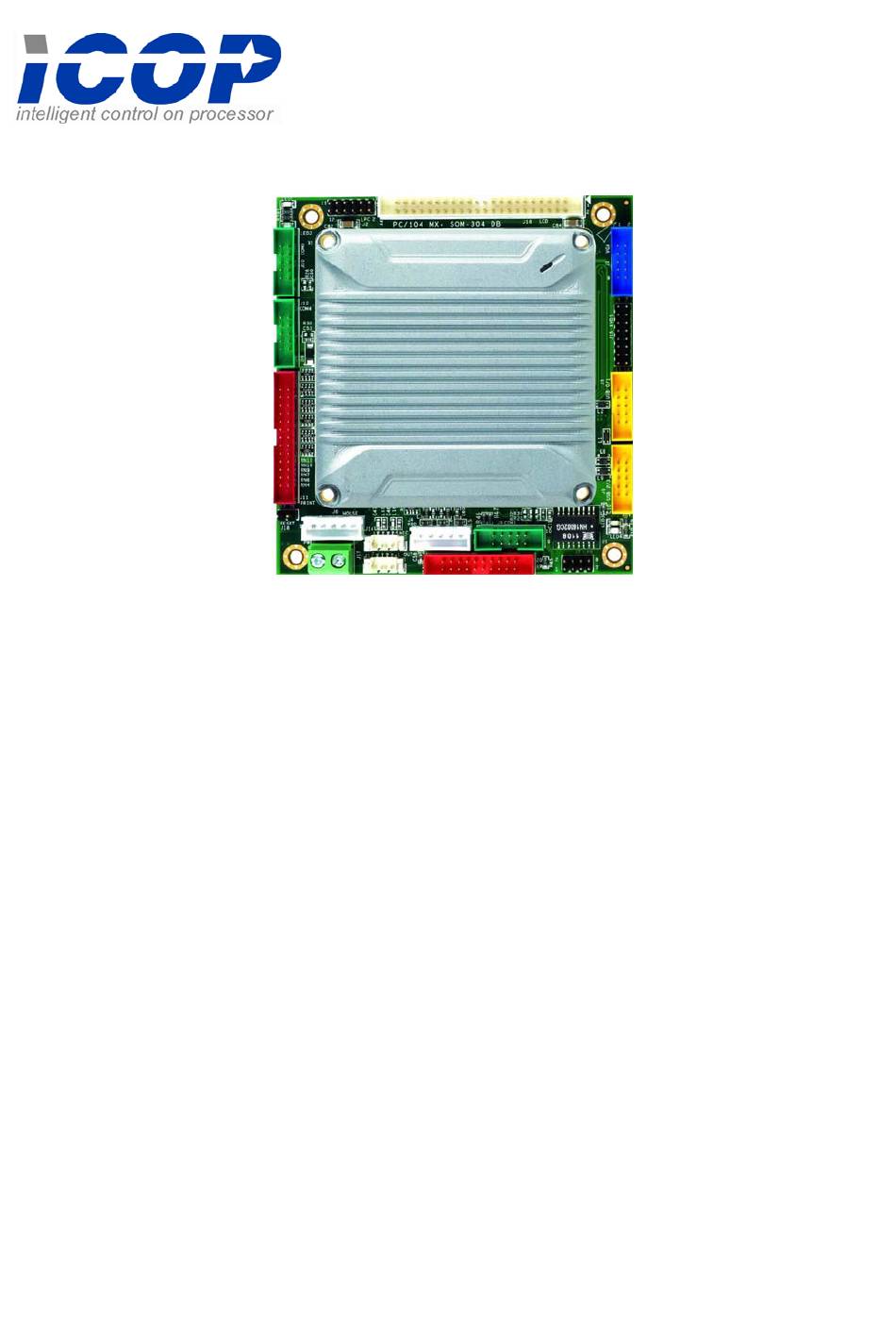

- Page 1 VMXP-6453 DM&P Vortex86MX+ 800MHz PC/104 CPU Module With 3S/4USB/VGA/LCD/LVDS/AUDIO/LAN/GPIO/CF/PWMx16 512MB or 1GB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. Copyright 2010 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Ordering Information ..........1 Packing List ............ - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
VMXP-6453-4DS1 2GB, 1GB DDR2 Vortex86MX+ PC/104 CPU Module w/NAND Flash VMXP-6453-4ES1 4GB, 1GB DDR2 Vortex86MX+ PC/104 CPU Module with 512MB DDR2 with VMXP-6453-3NE1 (Optional) extended temperature -20~+70 degrees Packing List Product Name Package Embedded Vortex86MX+ CPU Board RS232 cable x 3... -
Page 6: Product Description
Product Description The VMXP-6453 family of low-power x86 embedded controller is designed to meet PC/104 Form Factor, and integrated with the following features. 800 MHz Vortex86MX+ SoC Either VGA or TFT/ LVDS LCD support HD Audio 512MB / 1GB DDR2 system memory SST NAND Flash Onboard (Opt.) -
Page 7: Specifications
Specifications Features VMXP-6453 DM&P SoC CPU Vortex86MX+- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache, L2 Cache 256KB Cache AMI BIOS BIOS LPC (Optional) Bus Interface 512MB/1GB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... - Page 8 Flash Disk Support Onboard SST Flash Disk (512MB/1GB/2GB/4GB are Optional) Compact Flash Type I/II 16~24 channels Single Voltage +5V @ 920mA (with 2GB NAND Flash) Power Requirement 90 X 96mm (3.54 x 3.77 inches) Dimension 150g Weight 0°C ~+60°C Operating Temperature -20°C ~+70°C (Optional) Vortex86MX+-6453...
-
Page 9: Board Dimension
Board Dimension Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 10: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: COM1 RS232/422/485 is selected by BIOS setting) (Note2: LPC Bus is optional) (Note3: Onboard SST Flash Disk: 512MB/1GB/2GB/4GB are Optional) Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 11: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors (Note1: J2 is optional) Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 10-pin Box Header, 2.0 ,5x2 LPC (Optional) 12-pin Pin Header, 2.0 6x2 USB 0,1 10-pin Box Header,2.0 , 5x2 PS/2 Keyboard 5-pin Box Header, 2,54,1x5 USB 2,3 10-pin Box Header,2.0... -
Page 13: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: VGA Signal Signal Pin # Pin # Name Name R OUT G OUT B OUT HSYNC VSYNCD J2: LPC (Optional) Pin # Signal Name Pin # Signal Name CLK24MOUT LAD0 LFRAME- LAD1 LAD2 LDRQ- LAD3 SERIRQ PCIRST-... - Page 14 J5: USB 2, 3 Pin # Signal Name Pin # Signal Name LUSBD3- LUSBD2- LUSBD3+ LUSBD2+ GGND GGND J6: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J7: LAN Pin # Signal Name Pin # Signal Name ATX+ ATX- ARX+...
- Page 15 J9: COM1 RS232 / 422 / 485 (Optional: TTL / PWMx8) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD1 / 422TX+ / RS485+ TXD1 / 422RX+ DTR1 / 422RX- DSR1 RTS1 CTS1 J10: COM 3 (Optional: TTL) Signal Signal Pin #...
- Page 16 J12: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 J13: LINE OUT Pin # Signal Name LOUT_R LOUT_L J14: MIC-IN Pin # Signal Name MIC_IN_R MIC_IN_L J15: LVDS (Support LVDS 18bits) Pin # Signal Name Pin # Signal Name VCC3 (+3.3V)
- Page 17 J16: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) J17: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J18: RESET Pin # Signal Name Pin # Signal Name...
-
Page 18: System Mapping
System Mapping Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... - Page 19 Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module...
- Page 20 Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module...
-
Page 21: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX/MX+ CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 22: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX/MX+ for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 23: Pwm
Automation, robotic industry to a New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: som@icop.com.tw Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 24: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86MX+ processor is integrated RDC Display chip which is an ultra-low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 25: Appendix
Appendix TFT Flat Panel Data Output Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 26: Tft Flat Panel Support List
TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Data image 640x480 FG050710DSSWJG01/DG01 5.7” Ampire 640x480 AM-640480GTMQW-T00H 7” Data image 800x480 FG0700A0DSSWBG01 7” Innolux 800x480 AT070TN83 V.1 (10131) 10.4”... -
Page 27: Lvds Flat Panel Support List
LVDS Flat Panel Support Size Brand Resolution Model No. 5.7” Ampire 640x480 AM-640480G4TNQW 7” Ampire 800x480 AM-800480R3TMQW-A1H 8.4” 800x600 G084SN03 10.4” 800x600 G104SN02 12.1” 800x600 G121SN01 Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 28: Flat Panel Wiring And Lighting
Please refer to Page 12, 13 (J15: LCD & J16: LVDS connector) and Page22~25. Or for more LCD lighting and integration service, please contact our regional sales or mail to som@icop.com.tw ,if you have any questions. Vortex86MX+-6453 Vortex86MX+ PC/104 CPU Module... -
Page 29: Tcp/Ip Library For Dos Real Mode
DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc. -
Page 30: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup ... -
Page 31: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
