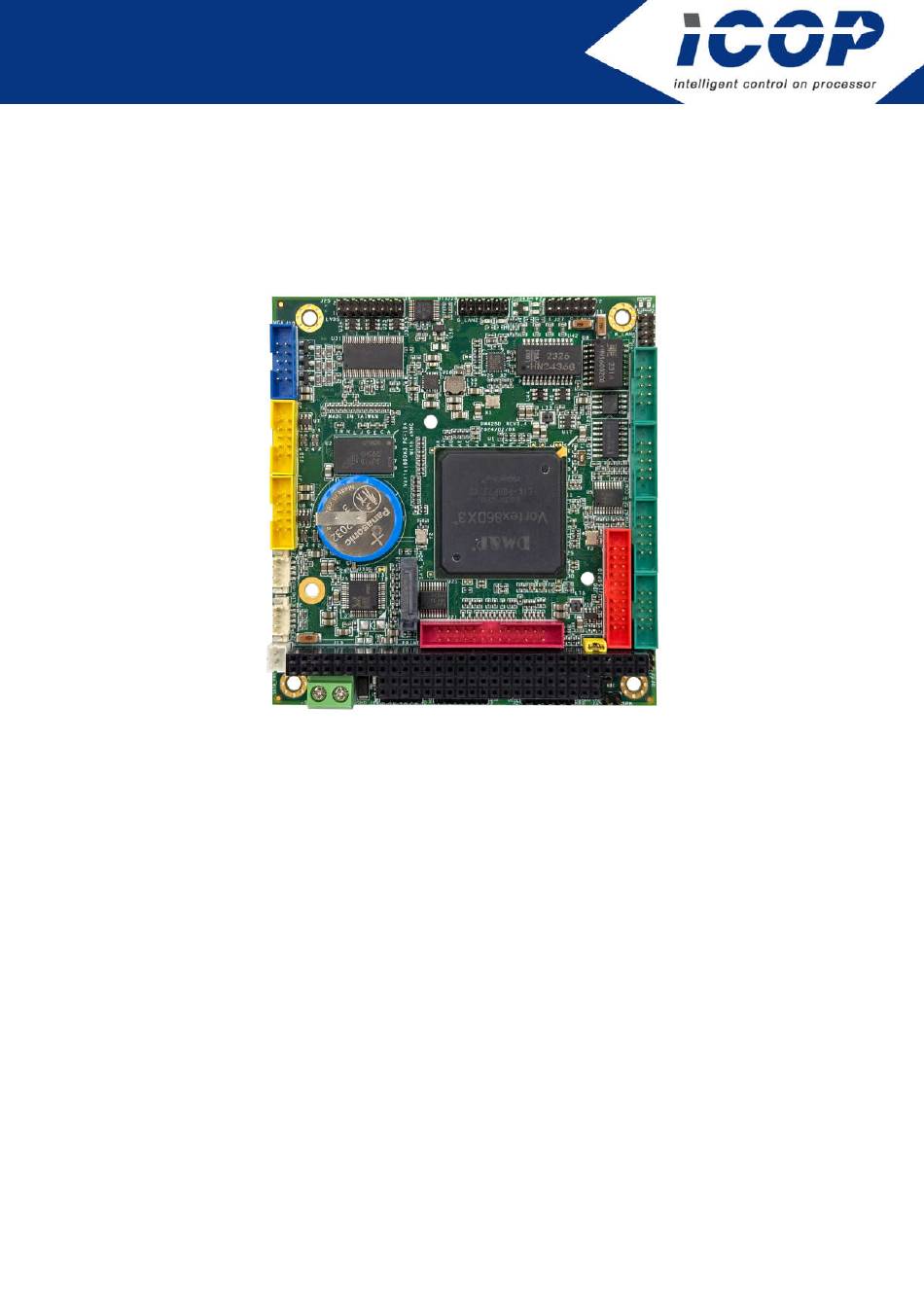

User Manual
VDX3-6757
with
DM&P Vortex86DX3
1GHz processor
Version 1.0
ICOP Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX3-6757 and is the answer not in the manual?

Questions and answers

Related Manuals for Icop VDX3-6757

Summary of Contents for Icop VDX3-6757

  • Page 1 User Manual VDX3-6757 with DM&P Vortex86DX3 1GHz processor Version 1.0 ICOP Technology Inc.
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. Copyright ⓒ 2022 ICOP Technology Inc Trademarks Acknowledgement Vortex86DX3 is the registered trademark of DM&P Electronics Inc.

  • Page 3: Revision History

    VDX3-6757 User Manual Revision History Revision Date Remark May, 2024 First version release ICOP Technology Inc.

  • Page 4: Table Of Contents

    User Manual Table of Contents General Information ................... 1 Overview ............................ 1 Block diagram ..........................2 Specifications ..........................3 Ordering Information ......................... 5 VDX3-6757 ........................5 1.4.1 Cable Set ..........................5 1.4.2 SATA DOM ........................6 1.4.3 Hardware Information ..................7 Dimension ..........................
  • Page 5 J25: LVDS ............................18 J27: Giga LAN ..........................19 J28: Giga LAN ..........................19 System Mapping ..........................20 Software Resources ................... 23 ICOP Technical Resource Website..................23 Vortex86 Processor Programming Guide .................. 23 Technical support ....................24 LCD............................24 Introduction ........................24 4.1.1...
  • Page 6 VDX3-6757 User Manual Console Redirection ......................25 4.2.3 IDE Configuration ......................26 4.2.4 Advanced PCI/PnP Setting ....................27 4.2.5 ACPI Enable ........................28 4.2.6 LCD Panel Setting ......................29 4.2.7 Warranty ........................31 ICOP Technology Inc.

  • Page 7: General Information

    PC/104 controller. In addition, the VDX3-6757 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.

  • Page 8: Block Diagram

    VDX3-6757 User Manual 1.2 Block diagram ICOP Technology Inc.

  • Page 9: Specifications

    2.0mm 10-pin box header for USB x2 Connectors 2.0mm 10-pin box header for RS232 x4 2.0mm 16-pin header for LVDS x1 2.0mm 8-pin header for Ethernet x1 2.0mm 12-pin header for Ethernet x2 2.0mm 10-pin box header for VGA x1 ICOP Technology Inc.
  • Page 10 Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows 7, Windows Embedded Standard 7, Windows Embedded Compact 7, Operating Windows XP Professional, Windows Embedded Standard(XPE), System Support POS Ready(WePOS), Embedded Linux, X-Linux, QNX, Vxworks and FreeBSD. ICOP Technology Inc.

  • Page 11: Ordering Information

    Contents NET4X2(2.0) x1 VGA(2.0) x1 NET6X2(2.0)-LED-6954 x2 GPIO(2.0) x1 CABLE-SET-6757 RS232(2.0) x4 PS2KB(TEST) x2 USB(2.0) x2 CABLE-AUDIO-4P(1.25) x2 PRINT(2.0) x1 NET4X2(2.0) x1 VGA(2.0) x1 NET6X2(2.0)-LED-6954 x2 GPIO(2.0) x1 CABLE-SET-6757S RS232(2.0) x4 PS2KB(TEST) x2 USB(2.0) x2 PRINT(2.0) x1 ICOP Technology Inc.

  • Page 12: Sata Dom

    VDX3-6757 User Manual 1.4.3 SATA DOM Product Name 0℃ ~ +70℃ -40℃ ~ +85℃ ISATA-8G-H-M ISATA-16G-H-M ISATA-32G-H-M ISATA-8G-H-M-X ISATA-16G-H-M-X ISATA-32G-H-M-X ISATA-1G-H-S ISATA-2G-H-S ISATA-4G-H-S ISATA-8G-H-S ISATA-16G-H-S ISATA-1G-H-S-X ISATA-2G-H-S-X ISATA-4G-H-S-X ISATA-8G-H-S-X ISATA-16G-H-S-X ICOP Technology Inc.

  • Page 13: Hardware Information

    VDX3-6757 User Manual 2 Hardware Information 2.1 Dimension ICOP Technology Inc.

  • Page 14: Board Outline

    VDX3-6757 User Manual 2.2 Board Outline ICOP Technology Inc.

  • Page 15: Connector Location

    VDX3-6757 User Manual 2.3 Connector Location ICOP Technology Inc.

  • Page 16: Connector And Jumper Summary

    Pin Header, 2.0mm, 8x2 Giga LAN Pin Header, 2.0mm, 6x2 Giga LAN Pin Header, 2.0mm, 6x2 Power Active LED (Red) SMD LED LED 7 LAN LINK/Active LED (Yellow) SMD LED LED 8 LAN Duplex LED (Green) SMD LED ICOP Technology Inc.

  • Page 17: Pin Assignments & Jumper Settings

    VDX3-6757 User Manual 2.5 Pin Assignments & Jumper Settings J1: JTAG For ICOP use only J2: PS/2 Keyboard Pin# Single Name Pin # Single Name KBCLK KBDATA J3: PS/2 Mouse Pin# Single Name Pin # Single Name MSCLK MSDATA J4: Buzzer...

  • Page 18: J6: Sata Dom Power

    LUSBD0+ LUSBD1+ GGND GGND J8: USB 2&3 Pin# Single Name Pin # Single Name LUSBD2- LUSBD3- LUSBD2+ LUSBD3+ GGND GGND J9: LAN Pin# Single Name Pin # Single Name LTX+ LTX- LRX+ DUPLEX LED0+ LRX- LED1+ LINK/ACTIVE ICOP Technology Inc.

  • Page 19: J10: Vga

    VDX3-6757 User Manual J10: VGA Pin# Single Name Pin # Single Name R OUT G OUT B OUT HSYNC_A VSYNC_A J11: Reset Pin# Single Name Pin # Single Name RST_SW J12: Power Connector Pin# Single Name ICOP Technology Inc.

  • Page 20: J13A: Pc/104 Connector - 64 Pin

    Pin# Single Name Pin # Single Name IOCHCHK RESETDRV IRQ9 RDQ2 -12V +12V IOCHRDY SMEMW SA19 SMEMR SA18 SA17 SA16 DACK3 SA15 DRQ3 SA14 DACK1 SA13 DRQ1 SA12 REFRESH SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 BALE ICOP Technology Inc.

  • Page 21: J13B: Pc/104 Connector - 40 Pin

    SA20 IRQ15 SA19 IRQ14 SA18 DACK0 SA17 DRQ0 MEMR DACK5 MEMW DRQ5 DACK6 DRQ6 SD10 DACK7 SD11 DRQ7 SD12 SD13 MASTER* SD14 SD15 J14: 4P Power Source (Interconnect to PC/104 – J13) Pin# Single Name -12V +12V ICOP Technology Inc.

  • Page 22: J15: Com1 (Rs232/Ttl Optional)

    CTS2 J17: COM3 (RS232/TTL optional) Pin# Single Name Pin # Single Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J18: COM4 (RS232/485/TTL optional) Pin# Single Name Pin # Single Name DCD4/4RS485- RXD4/4RS485+ TXD4 DTR4 DSR4 RTS4 CTS4 ICOP Technology Inc.

  • Page 23: J19: Rs232/485 Jumper Switch For Com4

    Pin# Single Name Pin # Single Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J21: PRINT Pin# Single Name Pin # Single Name STB- ACK- BUSY SLCT AFD- ERR- INIT- SLIN- ICOP Technology Inc.

  • Page 24: J22: Line-Out

    VDX3-6757 User Manual J22: LINE-OUT Pin# Single Name LOUTR LOUTL J23: MIC-IN Pin# Single Name MICVREF MIC-IN J25: LVDS Pin# Single Name Pin # Single Name VCC3 (+3.3V) VCC3 (+3.3V) CLKOUT- CLKOUT+ ICOP Technology Inc.

  • Page 25: J27: Giga Lan

    Pin# Single Name Pin # Single Name GTX+ GTX- GRX+ GRX- GTXC+ GTXC- GRXD+ GRXD- LED0+ LED01 LED1+ LED1/EESK J28: Giga LAN Pin# Single Name Pin # Single Name GTX+ GTX- GRX+ GRX- GTXC+ GTXC- GRXD+ GRXD- LED0+ LED01 LED1+ LED1/EESK ICOP Technology Inc.

  • Page 26: System Mapping

    000E0000 – 000EFFFF USB Legacy SCSI ROM space 000F0000 – 000FFFFF Motherboard BBIOS FEFDBC00 – FEFDBCFF Standard OpenHCD USB Host Controller FEFBB400 – FEFBB4FF Onboard Ethernet Adapter FEFDB800 – FEFDBFFF Standard Enhanced PCI to USB Host Controller ICOP Technology Inc.
  • Page 27 DMA High page register 0490h – 0499h Instruction counter register 04D0h – 04D1h 8259 Edge / level control register 0CF8h – 0CFFh PCI configuration port DE00h – DEFFh On board LAN FC00h – FC05h SPI Flash BIOS control register ICOP Technology Inc.
  • Page 28 Serial port 2 IRQ4 Serial port 1 IRQ5 IRQ6 IRQ7 Printer Port IRQ8 Real Timer Clock IRQ9 ACPI IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Multimedia Device IRQ15 Hard Disk Controller #2 ICOP Technology Inc.

  • Page 29: Software Resources

    VDX3-6757 User Manual 3 Software Resources ICOP Technical Resource Website In the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7 and Windows XP Embedded (Win XPe).

  • Page 30: Technical Support

    VDX3-6757 User Manual 4 Technical support 4.1.1 Introduction The VDX3-6757 offers 24-bit LVDS interface which supports maximum resolution up to 1280 x 1024 connecting to LCD Flat Panel 4.1.2 Pin Assignment of LVDS LVDS Pin Assignment LVDS Pin# Pin Name...

  • Page 31: Bios

    4.2.3 Console Redirection Access to computer board through serial port, you can work on VDX3-6757 without VGA display or monitor. The default access port is COM1 and disabled. If you would like to use this function, please go to the path below to enable Console Redirection.

  • Page 32: Ide Configuration

    The default IDE configuration is for Windows Operating System, and the setting as below: Onboard IDE Operate Mode: [Legacy Mode] IDE Compatibility: [Disabled]. If you would like to use Linux on VDX3-6757, please follow below instructions: Onboard IDE Operate Mode: [Native Mode] IDE Compatibility: [Enabled].

  • Page 33: Advanced Pci/Pnp Setting

    Advanced PCI/PnP Setting Two statuses for IRQ setting: [Reserved]: IRQ will be free to be allocated by ISA device, not PCI device. [Available]: IRQ will be allocated by both ISA device and PCI device. Path: PCIPnP >IRQ ICOP Technology Inc.

  • Page 34: Acpi Enable

    VDX3-6757 User Manual 4.2.6 ACPI Enable To install Windows 7 on ICOP computer boards, please enable ACPI as the following instruction. Path: Advanced > ACPI Configuration >ACPI Aware O/S ICOP Technology Inc.

  • Page 35: Lcd Panel Setting

    The default setting of and the Index [VBIOS] are for VGA signal. If you need to use LCD panel with VDX3-6757, please follow below instructions: Boot Display Device [IPD] LCD Panel Index according to your LCD resolution from 1 to 5.
  • Page 36 VDX3-6757 User Manual Path of LCD Panel Index setting: Chipset > NorthBridge Configuration > VGA Configuration > LCD Panel Index [ ICOP Technology Inc.

  • Page 37: Warranty

    Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
