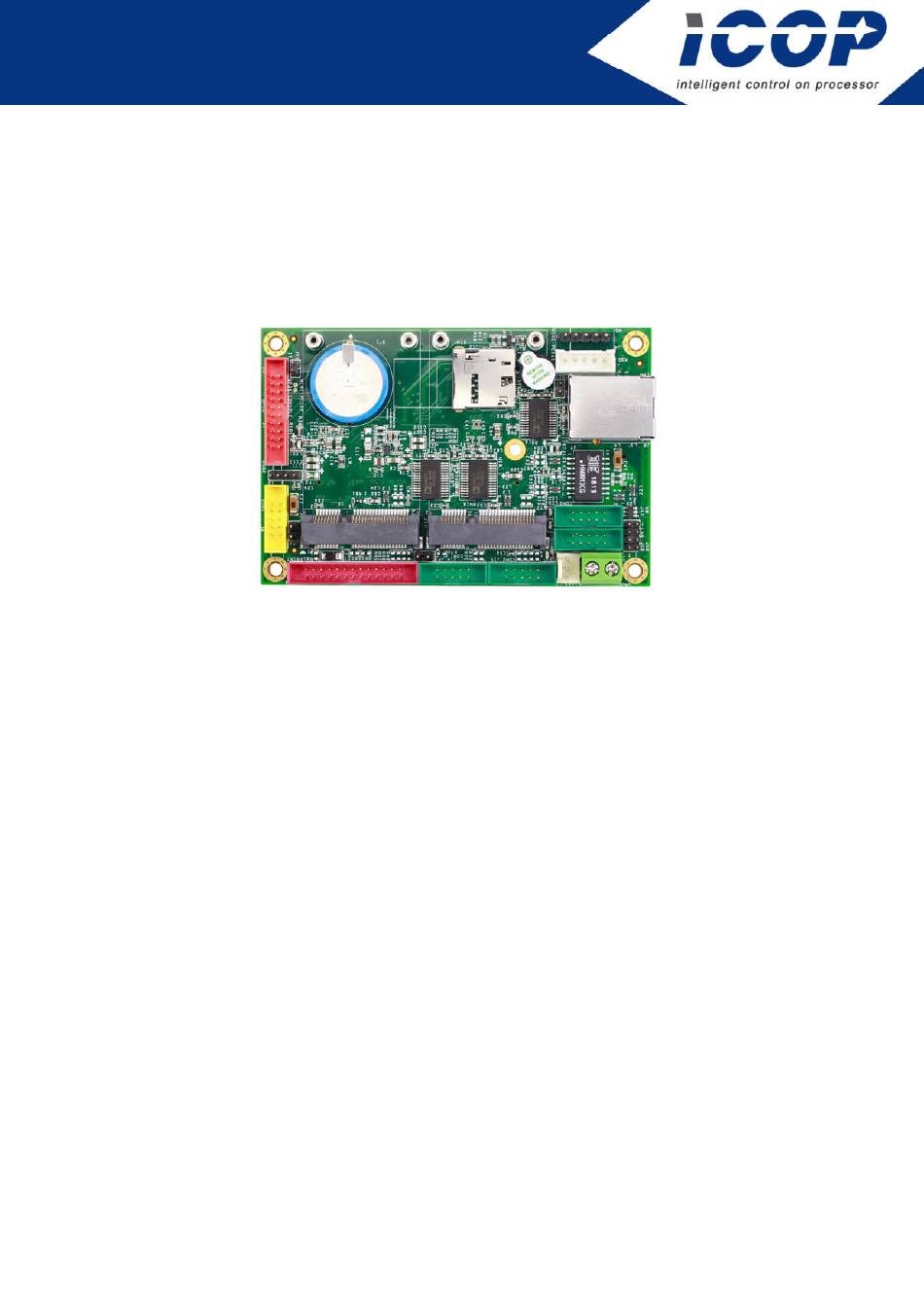

  • Page 1 User Manual VEX2-6415 with DM&P Vortex86EX2 600MHz processor Version 1.0 ICOP Technology Inc.

  • Page 2: Copyright

    No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. Copyright ⓒ 2019 ICOP Technology Inc Trademarks Acknowledgement Vortex86EX2 is the registered trademark of DM&P Electronics Inc.

  • Page 3: Revision History

    VEX2-6415 User Manual Revision History Revision Date Remark First version release ICOP Technology Inc.

  • Page 4: Table Of Contents

    Pin Assignments & Jumper Settings ..................10 J3: KBD ............................10 J4: Mouse ............................10 J5: Reset ............................10 J6: PRINT ............................11 J7: GPIO ............................11 J8: USB ............................12 J9: LAN1 ............................12 J10: LAN2 ............................12 ICOP Technology Inc.
  • Page 5 JP3: USB ............................16 JP4: RS232/485 Jumper Switch for COM1 ..................16 JP5: RS232/485 Jumper Switch for COM2 ..................17 System Mapping ........................18 Software Resources ................... 21 ICOP Technical Resource Website..................21 Technical support ...................... 22 Warranty ........................23 ICOP Technology Inc.

  • Page 6: General Information

    BIOSs & Operating Systems without affecting each other; equipped with various programmable I/O; it's designed for real-time desired industrial/automation applications. Perfect Replacement Solution for Vortex86DX Platform. 1. CPU instruction upgrade 2. DRAM from DDR2 to DDR3 3. Manufacturing process from 90nm to 65nm ICOP Technology Inc.
  • Page 7 VEX2-6415 User Manual VEX2-6415 is a solution of tiny based on VEX2-DIP168 CPU module, which has lower power consumption and multiple I/O selections. Features of VEX2-6415:  Vortex86EX2 Processor 600MHz  512MB/1GB DDR3 Onboard  4S/3U/4/2LAN/16GPIO/2MiniPCIe  Onboard eMMC / MicroSD socket ...

  • Page 8: Block Diagram

    VEX2-6415 User Manual Block diagram Vortex86EX2 DIP-168 Vortex86EX2-PCB Bottom View Vortex86EX2-DIP168 ICOP Technology Inc.

  • Page 9: Specifications

    Micro SD slot x1 Power Requirement 5VDC @ 480mA Weight Dimensions 100 x 66mm (3.94 x 2.6 inches) -20°C to +70°C Operating Temp. -40°C to +85°C (Option) Windows Embedded Compact 7 Windows Embedded CE6.0 Operating System Support Linux FreeBSD ICOP Technology Inc.

  • Page 10: Ordering Information

    4GB eMMC USB (v2.0) 3 (Option x1) 3 (Option x1) 3 (Option x1) GPIO 16-bit 16-bit 16-bit Parallel PS/2 Mini PCIe Optional Accessary CABLE-SET-6415-4C Cable set for VEX2-6415-4C (RS232 x4, USB, PRINT, GPIO, LAN, VGA, PS2KB x2) ICOP Technology Inc.

  • Page 11: Hardware Information

    VEX2-6415 User Manual 2 Hardware Information Dimension ICOP Technology Inc.

  • Page 12: Board Outline

    VEX2-6415 User Manual Board Outline ICOP Technology Inc.

  • Page 13: Connector Location

    VEX2-6415 User Manual Connector Location ICOP Technology Inc.

  • Page 14: Connector And Jumper Summary

    Box Header, 2.0mm, 5x2 Power Connector Pin Header, 5.0mm, 2x1 Console_EN Pin Header, 2.0mm, 2x1 USB (Opiton) Pin Header, 2.0mm, 4x1 RS232/485 Jumper Switch for Header 2, 2x1 COM1 RS232/485 Jumper Switch for Header 2, 2x1 COM2 ICOP Technology Inc.

  • Page 15: Pin Assignments & Jumper Settings

    VEX2-6415 User Manual Pin Assignments & Jumper Settings J3: KBD Pin# Single Name KBCLK KBDATA J4: Mouse Pin# Single Name MSCLK MSDATA J5: Reset Pin# Single Name RESET- ICOP Technology Inc.

  • Page 16: J6: Print

    Pin# Single Name Pin # Single Name STB- PACK- BUSY SLCT AFD- ERR- INIT- SLIN- J7: GPIO Pin# Single Name Pin # Single Name VCC3 (+3.3V) GPIO00 GPIO10 GPIO01 GPIO11 GPIO02 GPIO12 GPIO03 GPIO13 GPIO04 GPIO14 GPIO05 GPIO15 GPIO06 GPIO15 GPIO07 GPIO16 VCC3(+3.3V) ICOP Technology Inc.

  • Page 17: J8: Usb

    Pin# Single Name Pin # Single Name LUSBD1- LGUSBD1- LUSBD1+ LGUSBD1+ J9: LAN1 Pin# Single Name Pin # Single Name LINK/ACTIVE FGND DUPLEX FGND J10: LAN2 Pin# Single Name Pin # Single Name Duplex LED1+ LED0+ Link/Active ICOP Technology Inc.

  • Page 18: J11: Mini Pcie1

    VEX2-6415 User Manual J11: Mini PCIe1 Pin# Single Name Pin # Single Name WAKE# VCC3(+3.3V) SIM-VCC SIM-IO PE0_CLK- SIM-CLK PE0_CLK+ SIM-RST SIM-VPP PE0_RST PE0_RX- VCC(+3.3V) PE0_RX+ PE0_TX- PE0_TX+ PE0_USB- PE0_USB+ VCC3(+3.3V) VCC3(+3.3V) LED_WWAN# VCC3(+3.3V) ICOP Technology Inc.

  • Page 19: J13: Mini Pcie2

    VEX2-6415 User Manual J13: Mini PCIe2 Pin# Single Name Pin # Single Name WAKE2# VCC3(+3.3V) PE1_CLK- PE1_CLK+ PE1_RST PE1_RX- VCC(+3.3V) PE1_RX+ PE1_TX- PE1_TX+ PE1_USB- PE1_USB+ VCC3(+3.3V) VCC3(+3.3V) LED_WWAN# VCC3(+3.3V) ICOP Technology Inc.

  • Page 20: J14: Com1 Rs232/485 (Ttl Option)

    J16: COM2 RS232/485 (TTL Option) Pin# Single Name Pin # Single Name DCD2/2RS485- RXD2/2RS485+ TXD2 DTR2 DSR2 RTS2 CTS2 J17: COM3 RS232 (TTL Option) Pin# Single Name Pin # Single Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 ICOP Technology Inc.

  • Page 21: J18: Com4 Rs232 (Ttl Option)

    JP1: Console_EN Pin# Status Assignment Open None Short Console Mode JP3: USB (Cable for this USB port is option) Pin# Single Name LGUSBD2- LGUSBD2+ JP4: RS232/485 Jumper Switch for COM1 Pin# Status Assignment Open RS232 Short RS485 ICOP Technology Inc.

  • Page 22: Jp5: Rs232/485 Jumper Switch For Com2

    VEX2-6415 User Manual JP5: RS232/485 Jumper Switch for COM2 Pin# Status Assignment Open RS232 Short RS485 ICOP Technology Inc.

  • Page 23: System Mapping

    0061h Port B + NMI control port 0062h – 0063h 8051 download 4k address counter 0064h Keyboard/ Mouse status/ command port 0065h WatchDog0 reload counter 0070h – 0071h CMOS RAM port 0072h – 0075h MTBF control register ICOP Technology Inc.
  • Page 24 DE00h – DEFFh On board LAN** FC00h – FC05h SPI Flash BIOS control register FC08h – FC0Dh External SPI BUS control register **: Dynamical configuring PCI device: Meaning that the location of each allocation may be different ICOP Technology Inc.
  • Page 25 Serial port 2 IRQ4 Serial port 1 IRQ5 IRQ6 IRQ7 Printer Port IRQ8 Real Timer Clock IRQ9 NONE IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Multimedia Device IRQ15 Hard Disk Controller #2 ICOP Technology Inc.

  • Page 26: Software Resources

    VEX2-6415 User Manual 3 Software Resources ICOP Technical Resource Website In the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7, Windows Embedded CE 6.0. For details, please kindly visit the following link: http://tech.icop.com.tw/...

  • Page 27: Technical Support

    — A detailed description and photos of the technical situation — Any complement or technical situations you want ICOP more focusing on User Manual Feedback To make this user manual more complete, if you have any comments or feedbacks to this manual, please feel free to write to info@icop.com.tw...

  • Page 28: Warranty

    Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
