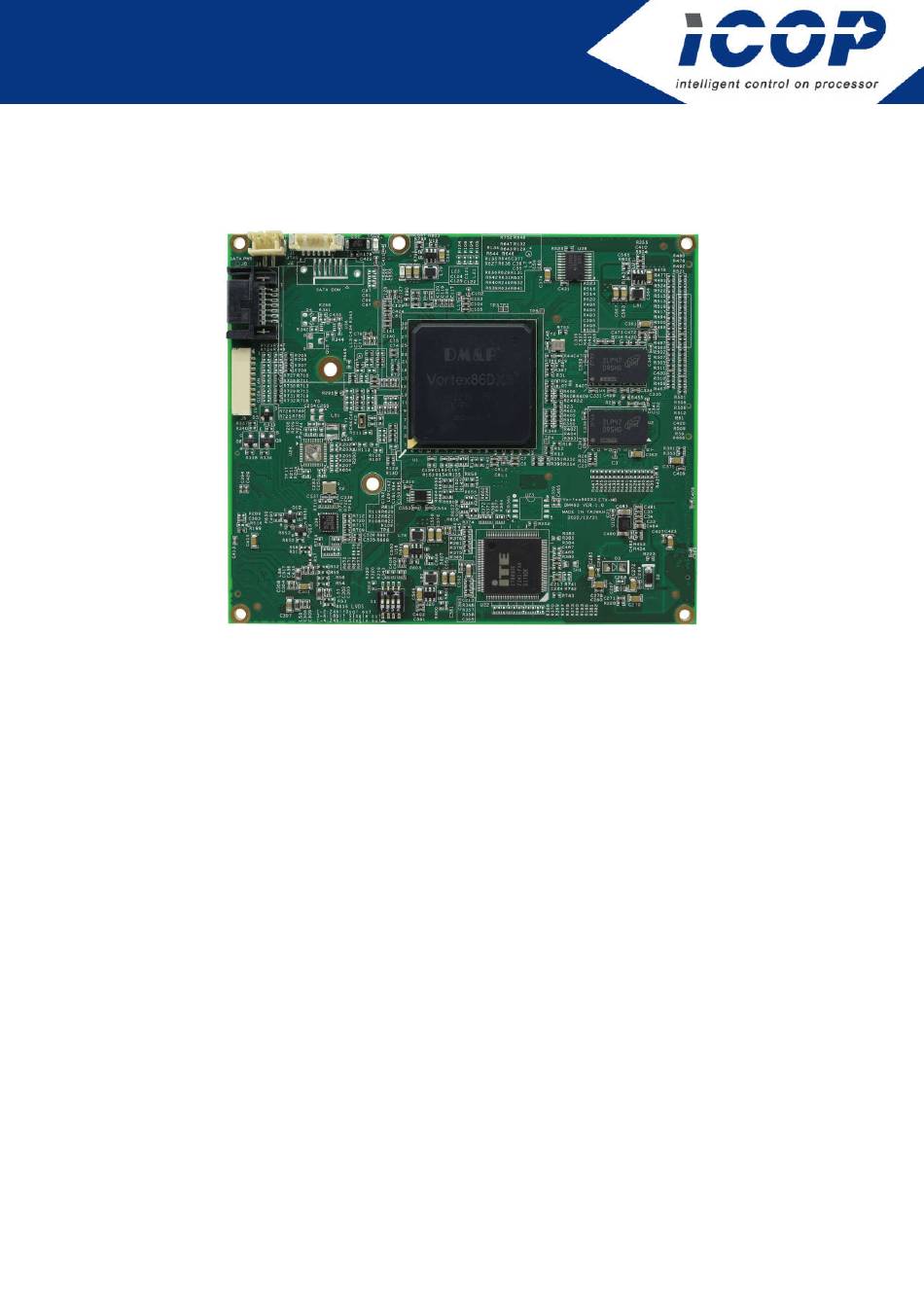

- Page 1 User Manual VDX3-ETX-V2 with DM&P Vortex86DX3 1GHz processor Version 1.0 ICOP Technology Inc.
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. ⓒCopyright 2016 ICOP Technology Inc Trademarks Acknowledgement Vortex86DX3 is the registered trademark of DM&P Electronics Inc.
-
Page 3: Revision History
VDX3-ETX-V2 User Manual Revision History Revision Date Remark SEP 27, 2023 First release ICOP Technology Inc. -
Page 4: Table Of Contents
X3: VGA, LVDS, COM x2, PS/2 and Printer(Optional) ..............21 X4: IDE, Ethernet, Power and others .................... 23 System Mapping ........................25 Software Resources ................... 28 ICOP Technical Resource Website.................... 28 Basic BIOS Setting .................... 29 Introduction ..........................29 IDE Configuration ........................29... - Page 5 Basic LCD Panel Setting .................. 31 Introduction ..........................31 Pin Assignment of LVDS ......................31 Basic BIOS Setting for LCD ....................32 Technical Support Directly from ICOP ..............34 User Manual Feedback ..................... 34 Appendix ........................35 Warranty ........................36...
-
Page 6: General Information

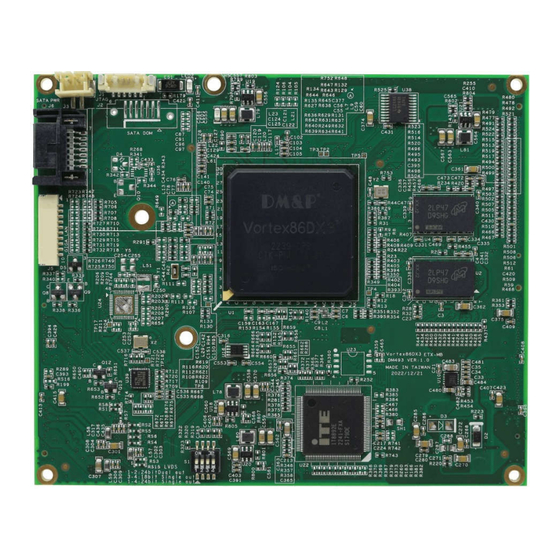

1 General Information 1.1 Overview The VDX3-ETX-V2 is a low-power CPU module which compliant with ETX standard. It takes the advantage of Vortex86DX3 1GHz x86 CPU which integrate the PCIe, IDE, I2C, VGA, LVDS, PS/2, USB, HD Audio and even with 16-bit ISA bus support. -
Page 7: Block Diagram
VDX3-ETX-V2 User Manual 1.2 Block diagram ICOP Technology Inc. -
Page 8: Specifications
-20℃ ~ +70℃ Operating Temp. -40℃ ~ +85℃ (Optional) Free DOS, DOS6.22, PCDOS 7.1, DR-DOS, X-DOS, OS/2, Operating System Windows CE7.0, Windows Professional, Windows Embedded Support Standard (XPE), POS Ready (WePOS),Windosw 7/7Embedded, Embedded Linux, QNX, Vxworks and FreeBSD ICOP Technology Inc. -
Page 9: Ordering Information
*Default setting for processor on VDX3-ETX-V2 module is Single-core. If Dual-core processor is required, please contact ICOP (info@icop.com.tw). **24-bit Signal channel LVDS running with VDX3-ETX-V2 module as default. If 24-bit Dual channel LVDS is required, please contact ICOP (info@icop.com.tw). Heatsink (For detail, please see Chapter 2.3):... - Page 10 VDX3-ETX-V2 User Manual Storages: Product Name 0℃ ~ +70℃ -40℃ ~ +85℃ ISATA-8G-H-M ISATA-16G-H-M ISATA-32G-H-M ISATA-4G-H-M-X ISATA-8G-H-M-X ISATA-16G-H-M-X ISATA-32G-H-M-X ISATA-1G-H-S ISATA-2G-H-S ISATA-4G-H-S ISATA-8G-H-S ISATA-16G-H-S ISATA-16G-H-S-X ICOP Technology Inc.
-
Page 11: Hardware Information
VDX3-ETX-V2 User Manual 2 Hardware Information 2.1 Board Dimension Top View ICOP Technology Inc. - Page 12 VDX3-ETX-V2 User Manual Bottom View ICOP Technology Inc.
-
Page 13: Dimension With Heatsink/Heatspreader
VDX3-ETX-V2 User Manual 2.2 Dimension with heatsink/heatspreader With heatsink (item number: Heatsink-ETX-D3T) Unit : mm Heatsink VDX3-ETX Customer's Carrier Board ICOP Technology Inc. - Page 14 VDX3-ETX-V2 User Manual With heatspreader (item number: Heatspreader-ETX-D3T) Unit : mm Heatspreader VDX3-ETX Customer's Carrier Board ICOP Technology Inc.
-
Page 15: Connector And Jumper Location
VDX3-ETX-V2 User Manual 2.3 Connector and Jumper Location Top View Bottom View ICOP Technology Inc. -
Page 16: Connector And Jumper Summary
X3 connector ETX 100 pins connector X4 connector ETX 100 pins connector 2.5 Pin Assignments & Jumper Settings J1: JTAG For ICOP use only. J2&J6: SATA DOM Pin# Single Name Pin # Single Name J6 is an optional SATA DOM horizontal connector. -
Page 17: J3: Sata Dom Power
MDI 2+ MDI 2- MDI 3+ MDI 3- LED1/Link_Active LED/Duplex (Giga Ethernet cable is required for testing Giga Ethernet function. The cable is not in standard package.) Cable S1: LVDS Switch 18-Bit LVDS Support 24-Bit LVDS Support ICOP Technology Inc. -
Page 18: X1: Pci, Usb & Audio
RESERVED Not supported REQ0# VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 VCC3 CBE0# VCC3 VCC3 VCC3 VCC3 AD10 VCC3 AUXAL AD11 VCC3 AD12 VCC3 AUXAR AD13 VCC3 ASVCC AD14 VCC3 SNDL AD15 VCC3 ASGND CBE1# VCC3 SNDR ICOP Technology Inc. - Page 19 AD23 VCC3 USB1- VCC3 AD24 VCC3 CBE3# VCC3 AD25 VCC3 AD26 VCC3 AD28 VCC3 USB0+ VCC3 AD27 VCC3 AD29 VCC3 AD30 VCC3 USB1+ VCC3 PCIRST# VCC3 AD31 VCC3 INTC# VCC3 INTD# VCC3 INTA# VCC3 INTB# VCC3 A100 ICOP Technology Inc.
-
Page 20: X2: Isa
VCC3 SD10 DREQ6 DACK6# VCC3 DREQ5 MEMW# DACK5# VCC3 MEMR# DREQ0 LA17 DACK0# VCC3 LA18 IRQ14 LA19 IRQ15 LA20 IRQ12 LA21 IRQ11 LA22 IRQ10 LA23 IOCS16# SBHE# VCC3 MEMCS16# BALE VCC3 VCC3 DACK2 # VCC3 IRQ3 IRQ4 ICOP Technology Inc. - Page 21 Voltage 5V I/O Tolerant IRQ5 IRQ6 IRQ7 SYSCLK SA10 REFSH# VCC3 SA11 DREQ1 SA12 DACK1# VCC3 SA13 DREQ3 SA14 DACK3# VCC3 SA15 IOR# SA16 IOW# SA18 SA17 SA19 SMEMR# IOCHRDY VCC3 SMEMW# OWS# VCC3 DREQ2 IRQ9 IOCHK# RSTDRV VCC3 B100 ICOP Technology Inc.
-
Page 22: X3: Vga, Lvds, Com X2, Ps/2 And Printer(Optional)
TXOUT2- VCC1.8 TXLCK+ VCC1.8 TXOUT2+ VCC1.8 TXLCK- VCC1.8 TXOUT0+ VCC1.8 TXOUT1+ VCC1.8 TXOUT0- VCC1.8 TXOUT- VCC1.8 Not supported Not supported Not supported BLON# BIASON DIGON# COMP VCC3 VCC3 Not supported VCC3 :First Channel LVDS :Second Channel LVDS ICOP Technology Inc. - Page 23 VCC3 VCC3 RI2# VCC3 VCC3 RXD1 VCC3 ACK# VCC3 RTS1# VCC3 BUSY# VCC3 DTR1# VCC3 VCC3 DCD1# VCC3 SLCT# VCC3 DSR1# VCC3 MSCLK VCC3 CTS1# VCC3 MSDAT VCC3 TXD1# VCC3 KBCLK VCC3 RI1# VCC3 KBDAT VCC3 C100 ICOP Technology Inc.
-
Page 24: X4: Ide, Ethernet, Power And Others
Not supported Not supported PIDE_CS3# VCC3 Not supported PIDE_CS1# VCC3 Not supported PIDE_A2 VCC3 Not supported PIDE_A0 VCC3 Not supported PIDE_A1 VCC3 Not supported Not supported Not supported PIDE_INTRQ VCC3 Not supported PIDE_AK# VCC3 Not supported PIDE_RDY VCC3 ICOP Technology Inc. - Page 25 Not supported PIDE_D10 VCC3 Not supported PIDE_D5 VCC3 Not supported PIDE_D9 VCC3 Not supported PIDE_D6 VCC3 Not supported CBLID_P VCC3 RXD- VCC3 PIDE_D8 VCC3 RXD+ VCC3 SIDE_D7 VCC3 TXD- VCC3 PIDE_D7 VCC3 TXD+ VCC3 HDRST# VCC3 D100 ICOP Technology Inc.
-
Page 26: System Mapping
0060h Keyboard/Mouse data port 0061h Port B + NMI control port 0062h – 0063h 8051 download 4k address counter 0064h Keyboard/Mouse status/command port 0065h Watchdog0 reload counter 0066h 8051 download 8bit data port 0067h Watchdog1 reload counter ICOP Technology Inc. - Page 27 0080h – 008Fh DMA page register 0092h System control register 0098h – 009Ch GPIO direction control 00A0h – 00A1h PIC 8259-2 00C0h – 00DFh DMA 8237-2 00E0h – 00EFh DOS 4G Page access 0170h – 0177h IDE1(IRQ15) ICOP Technology Inc.
- Page 28 Serial port 1 IRQ5 IRQ6 IRQ7 USB/Ethernet 10/100M LAN IRQ8 Real Timer Clock IRQ9 Multimedia Device IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Hard Disk Controller #1 IRQ15 Hard Disk Controller #2 ICOP Technology Inc.
-
Page 29: Software Resources
VDX3-ETX-V2 User Manual 3 Software Resources 3.1 ICOP Technical Resource Website In the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7 and Windows XP Embedded (Win XPe), etc. For details, please visit the link below: http://tech.icop.com.tw/... -
Page 30: Basic Bios Setting
The default IDE configuration is for Windows Operating System, and the setting as below: Onboard IDE Operate Mode: [Legacy Mode] IDE Compatibility: [Disabled] If you would like to use Linux on VDX3-ETX-V2, please follow below instructions: Onboard IDE Operate Mode: [Native Mode] IDE Compatibility: [Enabled] Path of Onboard IDE Operate Mode: Advanced >... -
Page 31: Advanced Pci-Pnp Setting
[Available]: IRQ will be allocated by both ISA device and PCI device. Path: PCIPnP >IRQ 4.4 ACPI Enable To install Windows 7 on ICOP computer boards, please enable ACPI as the following instruction. Path: Advanced > ACPI Configuration >ACPI Aware O/... -
Page 32: Basic Lcd Panel Setting
User Manual 5 Basic LCD Panel Setting 5.1 Introduction The VDX3-ETX-V2 offers two different interfaces which support maximum resolution up to 1920 x 1080 (at 60 MHz) connecting to VGA and LCD Flat Panel with 18-bit/24bit LVDS. Boot Display Device [VBIOS]... -
Page 33: Basic Bios Setting For Lcd
VDX3-ETX-V2 User Manual 5.3 Basic BIOS Setting for LCD If you would like to use LCD panel with VDX3-ETX-V2, please follow below instruction: Boot Display Device [IPD] LCD Panel Index according to your LCD resolution from 1 to 5. Options... - Page 34 VDX3-ETX-V2 User Manual Path of LCD Panel Index setting: Chipset > NorthBridge Configuration > VGA Configuration > LCD Panel Index [ ICOP Technology Inc.
-
Page 35: Technical Support Directly From Icop
—Description of the S/W environment (i.e: operating system, version, application software, and/or other related information, etc.) —A detailed description and photos of the technical situation —Any complement or technical situations you want ICOP more focusing on User Manual Feedback To make this user manual more complete, if you have any comments or feedbacks to this manual, please feel free to write to info@icop.com.tw... -
Page 36: Appendix
Switch ATX Power TXOUT1- TXOUT1+ TXOUT2+ TXOUT2- TXCLKOUT- TXCLKOUT+ TXOUT3- TXOUT3+ TXOUT10+ TXOUT10- DC5V TXOUT11- TXOUT11+ Input TXOUT12+ TXOUT12- TXOUT13- TXOUT13+ 29 TXCLKOUT1+ 30 TXCLKOUT1+- LVDS Giga LAN (Link to J5) C Pin Assignment: I2CCLK I2CDAT VCC3 ICOP Technology Inc. -
Page 37: Warranty
Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
