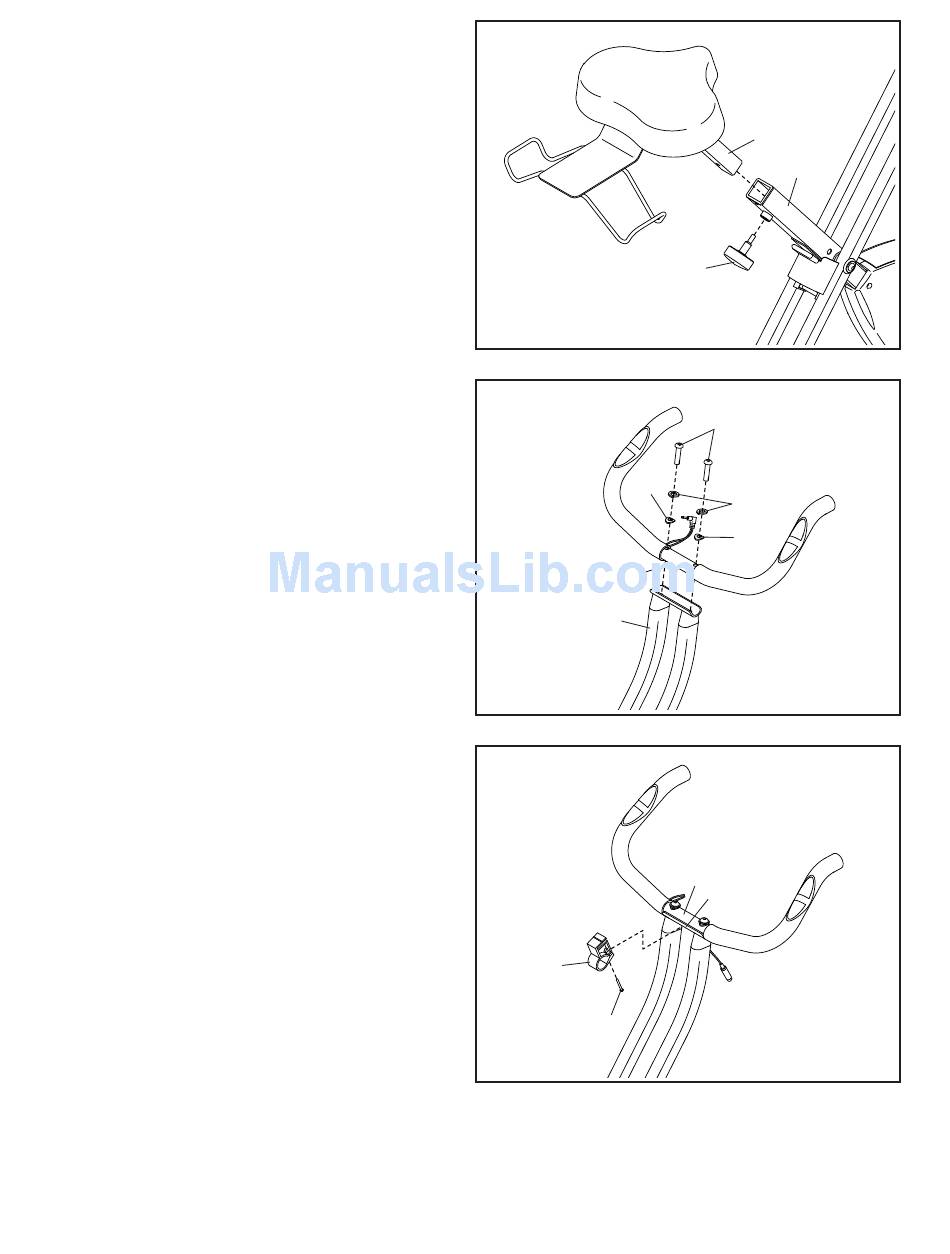

5. Insert the Seat Post (8) into the Seat Frame (1).
Next, insert the Knob (14) into the Seat Frame
(1) and into one of the adjustment holes in the
Seat Post (8); make sure that the Knob is in
one of the adjustment holes in the Seat Post.
Then, tighten the Knob.
6. Attach the Handlebar (3) to the Handlebar
Frame (2) with two M8 x 35mm Screws (65),
two M8 Split Washers (56), and two M8
Curved Washers (24).
7. Pull the Console Mount (5) open slightly and
slide it onto the Handlebar (3) and onto the
upper end of the Handlebar Frame (2). Then,
tighten an M4 x 25mm Screw (71) into the
Console Mount; do not fully tighten the
Screw yet.
