Preparation; Inspection; Environment; Required Setup Equipment - Liebert Nfinity User Manual

These installation instructions provide all the
information needed for positioning the UPS
(including environmental requirements) and for
connecting the input and output power cables.

Inspection

Upon receiving the UPS, examine the packaging
for any signs of mishandling or damage. If any
damage is noted, call your local Liebert
representative and/or notify your carrier.

Environment

Operating in temperatures above 25°C (77°F) will
reduce battery life. The UPS environment must be
free of conductive contaminants and excessive
moisture (water condensation, flammable vapors,
chemical fumes, or corrosive gasses and liquids).
Required Setup
Equipment
The tools below are required to properly set up
your UPS:
• pallet jack
• 13mm (1/2in) spanner
• torque wrench (Nm)
• flathead screwdriver
• #2 Phillips screwdriver

PREPARATION

Site Preparation

When deciding where to locate your UPS,
consider the weight and size of the unit. Make sure
that the structural integrity of the floor can
withstand the weight of a fully loaded unit. Refer to
the table below for size and fully populated weight
considerations:
Model
12 bay with
transformer
12 bay without
transformer

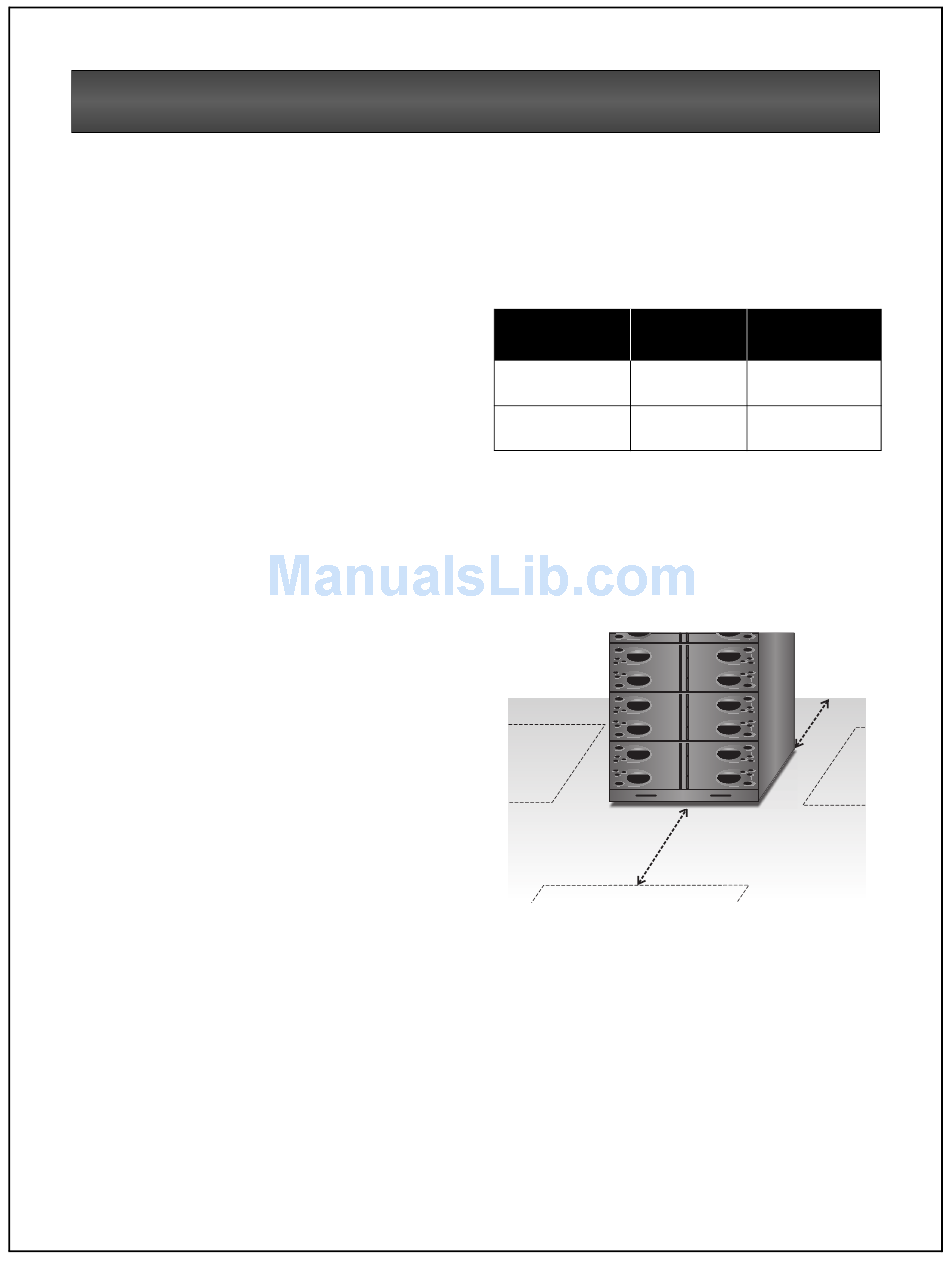

Check to make sure that your UPS will be located
in a well-ventilated area with at least 300 mm
(12 in) behind it. The UPS is force cooled with the
aid of internal cooling fans. Cooling air enters from
the front of the UPS and is exhausted through
ventilation grilles in the back. It should also have at
least 1 metre (39in) in front in order to change
modules if necessary.
The unit frame is bolted to the shipping pallet to
ensure safety. It is recommended that a pallet jack
be used to transport the unit to its operating
location (prior to unbolting the unit).
12
Max Weight H x W x D
kg (lb) mm (in)
539 1346x508x711
(1188) (53x20x28)
459 1346x508x711
(1011) (53x20x28)
300 mm
(12 in)
1 metre
(39 in)
