Summary of Contents for Winmate W05TA3S-PCT3AC

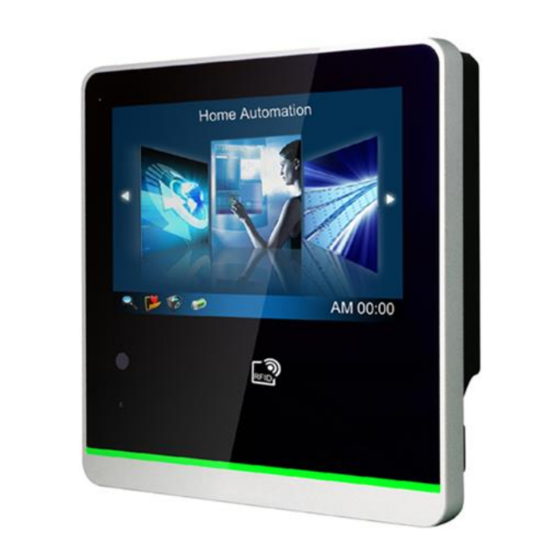

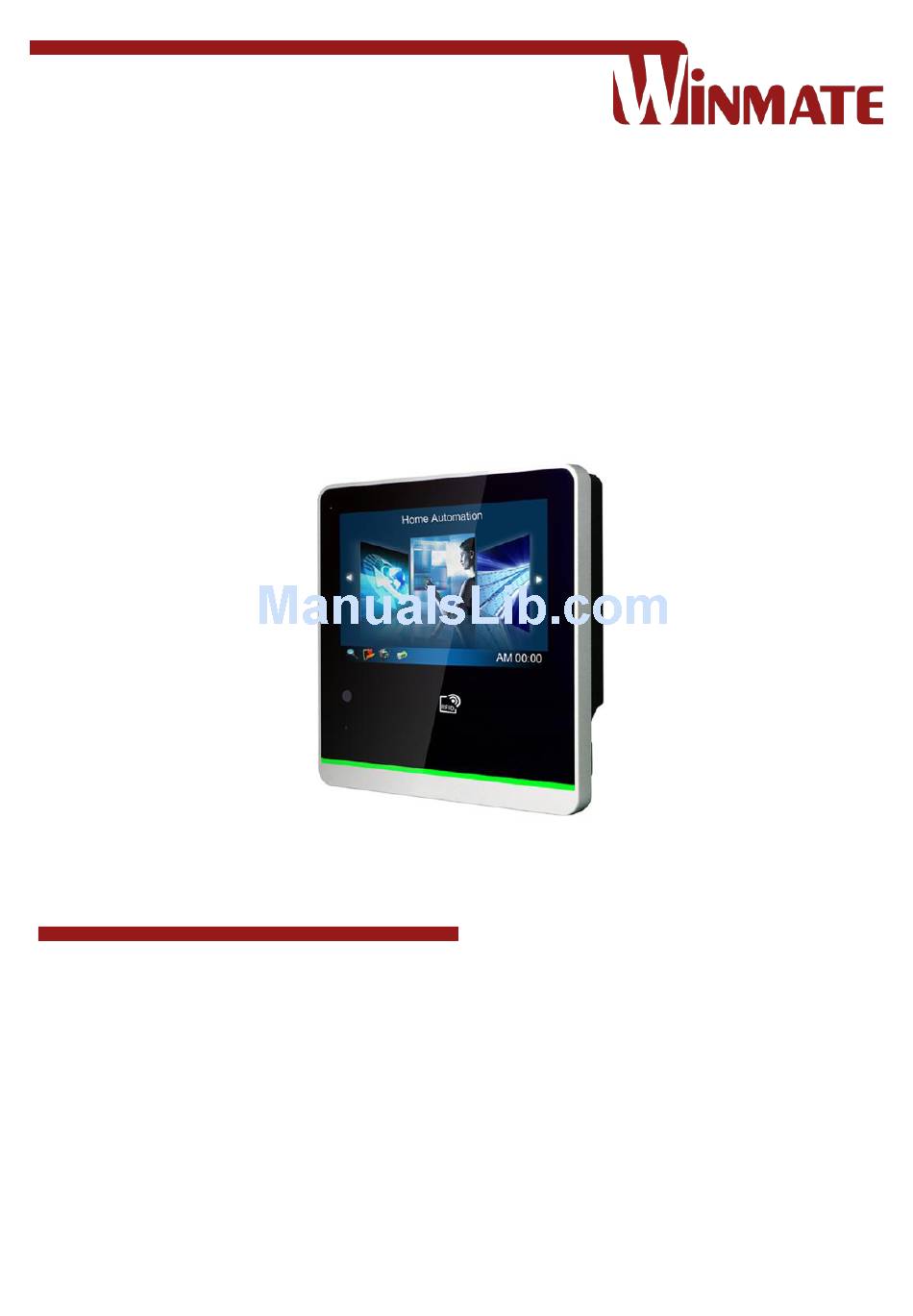

- Page 1 5” S-Series HMI W05TA3S-PCT3AC Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz Quick Start Guide Document Part Number: 9152050I0000 Version 1.1 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
Location and Interface Testing LED Light Bar Testing HF RFID Reader HF RFID Reader Introduction Scanning HF RFID Tag Testing DIDO Software Developer Support Software System Diagram Winmate Software Development Kit Technical Specifications HMI Device Specifications HF RFID Reader Specifications... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. -
Page 4: Getting Started
Getting Started Congratulations on purchasing Winmate® 5” S-Series HMI. Interactive and smart automation systems of intelligent buildings are in a fast growing phase. Winmate® multi-touch S-Series HMI is suitable for home automation and room management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for any interior. -
Page 5: Unpacking
Getting Started Unpacking Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Accessories Standard factory shipment list: ... -
Page 6: Description Of Parts
5" S-Series HMI Quick Start Guide Description of Parts Front Side: 5” 800*480 LED panel with PCAP Touch Screen 2MP Camera RFID Reader LED Light bar Rear Side: Speaker Kensington Lock I/O Side: USB A Type SD Card Slot Reset Button DC 12V in LAN / PoE... - Page 7 Description of Parts Dimensions:...
-
Page 8: Connector Description
5" S-Series HMI Quick Start Guide Connector Description DC Input Connector DC terminal block power source input is a 3-pin terminal block that has to be secured with screws to the HMI device housing Pin No. Symbol Description VIN+ 12V DC Input + VIN- 12V DC Input - Ground... -
Page 9: Digital Input / Output Connector
Connector Description Digital Input / Output Connector Digital Input and Output 2 in / 2 out (one 12V/1A for electromagnetic lock). Pin № Pin № Name Name DO_COM Digital output: Open drain to 40V ; Maximum load 2.0A Digital input: Voltage Level 0: close to GND;... -
Page 10: Turning On Or Off Your Device
5" S-Series HMI Quick Start Guide Turning On or Off Your Device Turning On Follow the following steps to turn on your device: 1. Connect the power cable to AC to DC adapter. 2. Connect the open wire of AC to DC adapter to the terminal block female connector and tighten the screws to secure it to the HMI device. -
Page 11: Using Camera
Using Camera Using Camera Winmate® 5” S-Series HMI has a built-in front camera, which allows you to take photos and record video clips. Camera Application 1. Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video. -
Page 12: Tars Test Application
5" S-Series HMI Quick Start Guide TARS Test Application The HMI device comes with pre-installed application – “TARS Test” for testing main features such as LED Light Bar, DIDO and HF RFID. Location and Interface To open the application, go to all APPS menu, then tap TARS Test icon. -
Page 13: Testing Led Light Bar
The 5” S-Series HMI equipped with LED Light Bar located on the bottom front side of the device. Users can test this feature with TARS Test APP developed by Winmate. 1. Go to all APPS menu, then tap TARS Test icon. -
Page 14: Testing Hf Rfid Reader
5" S-Series HMI Quick Start Guide Testing HF RFID Reader HF RFID Reader Introduction HF RFID is an initial of Radio Frequency Identification, which is also called electrical tag. The principle of RFID is to tag the target by radio frequency and process the data reading and transporting instead of mechanic and optical contact. -
Page 15: Testing Dido
TARS Test Application Number Description XXXXXXXXXXXXXABCDEF Displays the information written in the card Testing DIDO 1. Go to all APPS menu, then tap TARS Test icon. 2. In the TARS Testing window, see DIDO. -
Page 16: Software Developer Support
Software Developer Support Software System Diagram This diagram describes the software system of Winmate® 5” S-Series HMI. Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for 5” S-Series HMI. Devices Support... -
Page 17: Technical Specifications
Technical Specifications Technical Specifications HMI Device Specifications Model Name W05TA3S-PCT3AC 5” TFT (LED Backlight) Size Pixel Pitch 0.045 (H) x 0.135 (V) Resolution 800 x 480 Display 300 (typ.) Luminance ( Specification Contrast Ratio 500 : 1 (typ.) Viewing Angle... -
Page 18: Hf Rfid Reader Specifications
5" S-Series HMI Quick Start Guide HF RFID Reader Specifications HF RFID Reader Specifications Part Number RF-521 RF Transmit Frequency 13.56MHz F/W version V1.00B / V1.03 Supported Transponder ISO 15693 (R/W) ISO 14443-A( R/W) ISO 14443-B (Read UID) ISO18092 (R/W) Power Supply DC 5V Power Consumption... - Page 19 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
