EL-Series HMI Freescale® Cortex® A9 i.MX6 Dual Core, 1 GHz Android 6.0 Model No. W04FA3S-ELT1 W05FA3S-ELT1 W07FA3S-ELT1 W10FA3S-ELH2 W15FA3S-ELA4 User Manual Document Version 1.3 Document Part No.9152111I1134 Please read these instructions carefully before using this product, and save this manual for future use.
EL-Series HMI User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
Page 4
EL-Series HMI User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
Page 5
Preface For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
Page 6
EL-Series HMI User Manual Avoid contact with pins, leads, or circuitry. Turn off power and input signals before inserting and removing connectors or test equipment. Keep the work area free of non-conductive materials, such as ordinary plastic assembly aids and Styrofoam.
About This User Manual About This User Manual This User Manual provides information about using the Winmate® EL-Series HMI. This User Manual applies to the EL-Series HMI – W04FA3S-ELT1, W07FA3S-ELT1, W10FA3S-ELH2, and W15FA3S- ELA2. The documentation set for the EL-Series HMI with Freescale® Cortex® A9 i.MX6 Dual Core provides information for specific user needs, and includes: ...
EL-Series HMI User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter.

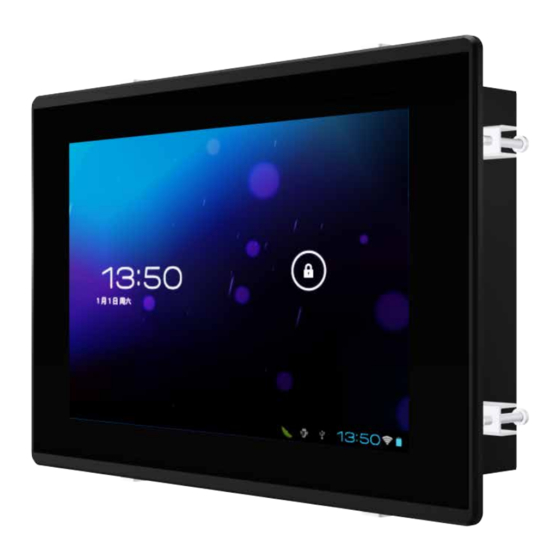

Chapter 1: Introduction 1.1 Introduction Congratulations on purchasing Winmate® EL-Series HMI. Winmate continues developing new generation of Human Machine Interfaces for Industry 4.0 and Internet of Things (IoT). Our EL-Series HMI runs on Android 6.0 operating system that allows installing the latest applications (APPs). There is one USB 2.0 onboard to connect mouse or keyboard, Micro USB OTG for system updates.
EL-Series HMI User Manual 1.4 Description of Parts This section describes appearance, connectors’ layout and mechanical dimensions of EL-Series HMI. Notice that this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information. EL-Series HMI 4.3”...
Page 11
Chapter 1: Introduction EL-Series HMI 5.6” Unit: mm Dimensions : 158.7 x 116.3 x 51 № № Description Description ❶ USB 2.0 ❺ USB OTG ❷ ❻ RS485 Power Terminal Block ❸ ❼ Reset Button LED Indicator ❹ RJ45/ LAN...
Page 12
EL-Series HMI User Manual EL-Series HMI 7” Unit: mm Dimensions : 184.94 x 127.7 x 44.9 № № Description Description ❶ USB 2.0 ❺ Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
Page 13
Chapter 1: Introduction EL-Series HMI 10.1” Unit: mm Dimensions : 267.42 x 182.14 x 57.6 № № Description Description ❶ USB 2.0 ❺ Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
Page 14
EL-Series HMI User Manual EL-Series HMI 15.6” Unit: mm Dimensions : 387.6 x 257.7 x 52.5 № № Description Description ❶ USB 2.0 ❺ Power Terminal Block ❷ ❻ RS485 LED Indicator ❸ ❼ RJ45/ LAN Reset Button ❹ USB OTG...
Chapter 2: Getting Started Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.
EL-Series HMI User Manual 2.1 Powering On 2.1.1 AC Adapter Components 2 Pin Terminal Block to Power Cord AC Adapter DC Jack Safety Precautions: Do not use the adapter in a high moisture environment Never touch the adapter with wet hands or foot ...
Chapter 2: Getting Started 2.1.3 Connecting the Power Installation Instruction: Connect a 3-pin terminal block to the HMI connector. Connect the other side of the terminal block to the AC adapter. Connect the AC adapter to the power cord. Plug in the power cord to a working AC wall outlet. The device will boot automatically. Note: Based on the model, terminal block connector may be located either on the bottom or on the rear side of the HMI device.
Page 18
EL-Series HMI User Manual 2.2.2 Serial Port Connector The HMI device has one RS-485 serial port connector to connect your device to external devices. Pin assignment and connector description of serial port connector Pin № Signal Name 2.2.3 Ethernet Connector The HMI device supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet.
Chapter 3: Mounting Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.
EL-Series HMI User Manual 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the HMI device. Refer Chapter 2, section 2.1 for the cable installation instruction. Caution/ Attention Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection.
Page 21
Chapter 3: Mounting 3.3.1 Panel Mount Panel mount solution is suitable for many applications where HMI should be embedded in the machine. With this mounting solution flat surface leave no bezel in the front. In addition to elegant design, rear mount solution is making the HMI unit easy to clean and maintain.
Page 22
EL-Series HMI User Manual 3.3.2 VESA Mount VESA mount is a widely used mounting solution suitable for all kinds of industrial applications. Notice that only 7”, 10.1”, 15.6” HMI devices support VESA mounting. Size VESA Dimensions Screw Hole Diameter 7”, 10.1”, 15.6” 75 x 75 mm VESA M4 x 3 mm Mounting Instruction...
Page 23
Chapter 3: Mounting 3.3.3 RAM Mount RAM mount is a mounting solution suitable for in-vehicle device installation. Notice that only 4.3” and 5.6”HMI devices support RAM mounting. The pictures in this section are for demonstration purposes only. RAM mount accessories are not supplied with the HMI device. RAM Base Dimensions: 38.1 x 30 mm Screw: 4 x M5-0.8x10 mm Phillips screws RAM Mount parts may be ordered individually through RAM Mount (www.rammount.com)
Page 24
EL-Series HMI User Manual Drill Solution...
EL-Series HMI User Manual 4.1 Operating System EL-series HMI supports Android 6.0. Important: The watchdog timer is set by default. The system will automatically reboot if it hangs after 30 seconds. If the app hangs, watchdog function will not be activated. 4.2 Multi-Touch The touchpad supports the core gestures for Android.
Chapter 4: Operating the Device 4.3 System Settings This section explains how to adjust main system settings in Android 6.0. 4.3.1 Set up the Device When you first turn on your HMI device, you’ll see a Welcome screen. Choose the language you want and touch Start or the Start icon.
Page 28
EL-Series HMI User Manual Some apps hide these buttons temporarily, or fade them to small dots in the same position. To bring them back, touch the dots, touch the screen in the middle, or swipe up from the bottom. Many screens in apps and Settings include a menu icon at the top right of the screen.
Chapter 4: Operating the Device 4.4 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. 3. Ethernet APP main menu appears...
Page 30
EL-Series HMI User Manual 4.4.1 Configuring Ethernet Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router Static IP Allows to manually set up IP-address, DNS, Network and Gateway...
Page 31
Chapter 4: Operating the Device 4.4.2 Checking Ethernet Settings To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop.
EL-Series HMI User Manual 4.5 Winmate® Home Manager (WHM) Winmate® EL-Series HMI comes with preinstalled APP called Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
Page 33
Chapter 4: Operating the Device Menu Description Home Manager Set which app you want to run up automatically after booting Set the WHM password (Default password is “0000”). Password Manager About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
Page 34
EL-Series HMI User Manual 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key;...
Page 35
Chapter 4: Operating the Device 4.5.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2.
Page 36
EL-Series HMI User Manual Restart the system and you will go back to the normal Launcher. 4.5.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2. The default password is “0000”. Enter a new password in New Password field, and then tap Change Password.
Chapter 5: Software Installation Chapter 5: Software Installation This chapter contains software installation and updates guide. All the programming guides can be found in the driver CD included in the package.
EL-Series HMI User Manual 5.1 Android Debug Bridge (ADB) Driver Installation Important: If your computer is running on Windows Embedded 8 Standard or Windows 8.1 Industry Pro OS system, you need to disable driver signature. For Win XP / Win 7 skip disabling driver signature section, and directly proceed to ADB driver installation.
Page 39
Chapter 5: Software Installation 2. Click Change PC Settings. 3. Click General. 4. Under Advanced Startup, click Restart Now. Note: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery -> Recovery.’...
Page 40
EL-Series HMI User Manual 5. After restarting, click Troubleshoot. 6. Click Advanced Options.
Page 41
Chapter 5: Software Installation 7. Click Windows Startup Settings. 8. Click Restart. 9. After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard.
Page 42
EL-Series HMI User Manual Your computer will restart automatically. 10. After restarting, you will be able to install the ADB drivers normally; however, Windows will display a warning message. When the warning appears, click Install this driver software anyway. If you are unfamiliar with installing drivers, check out our Installing ADB driver tutorial for a step by step guide.
Page 43
Chapter 5: Software Installation 5.1.2 ADB Driver Installation 1. Confirm whether the USB device was found by the system. Device Manager > 120A > Other devices > FA34 > Update Driver Software 2. In the Update Driver Software window choose Browse my computer for driver software. 3.
Page 44
EL-Series HMI User Manual 4. Select from your computer 5. In the Update driver software window, click show All Devices and then click Next. 6. The system is looking for the driver folder. Click Browse. 7. Select the driver for your OS system. Click Open.
Page 45
Chapter 5: Software Installation 8. Windows Security window will pop up. This message is used to confirm whether the user wants to install the driver. Select Install this driver software anyway to continue. 9. When the installation is successfully completed you will see Android ADB Interface driver in the Update Driver Software window.
When the get action stops, press "Ctrl + C" to leave logcat. 5.3 Downloading Image Tool Download OS Image Tool update guide: Winmate Download Center http://www.winmate.com/ > Support > Download Center > Multi-touch PPC > EL-Series HMI > OS Image 5.4 OTA Update Guide...
Page 48
EL-Series HMI User Manual System shows OTA firmware related information.
Page 49
Chapter 5: Software Installation 3. Click Auto-check Update. The system is checking OTA File. It may take some time. 4. Tap Update Image...
Page 50
EL-Series HMI User Manual 5. Make sure the file founded by the system is image update file. Tap OK. 6. Make sure the battery level is at least 50%. Tap OK.
Do not disconnect the power source! Do not remove the battery! 8. After update the system will automatically restart. 5.5 OS Image Update Guide Download OS Image update guide from Winmate Download Center or Winmate File Share. Winmate Download Center: http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=3018...
EL-Series HMI User Manual Chapter 6: Technical Support This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.
To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Winmate provides the following Drivers for EL-Series HMI with Freescale® Cortex® A9 i.MX6 Dual Core 1GHz processor:...
