Summary of Contents for Winmate W05TA3S-PCT3AC

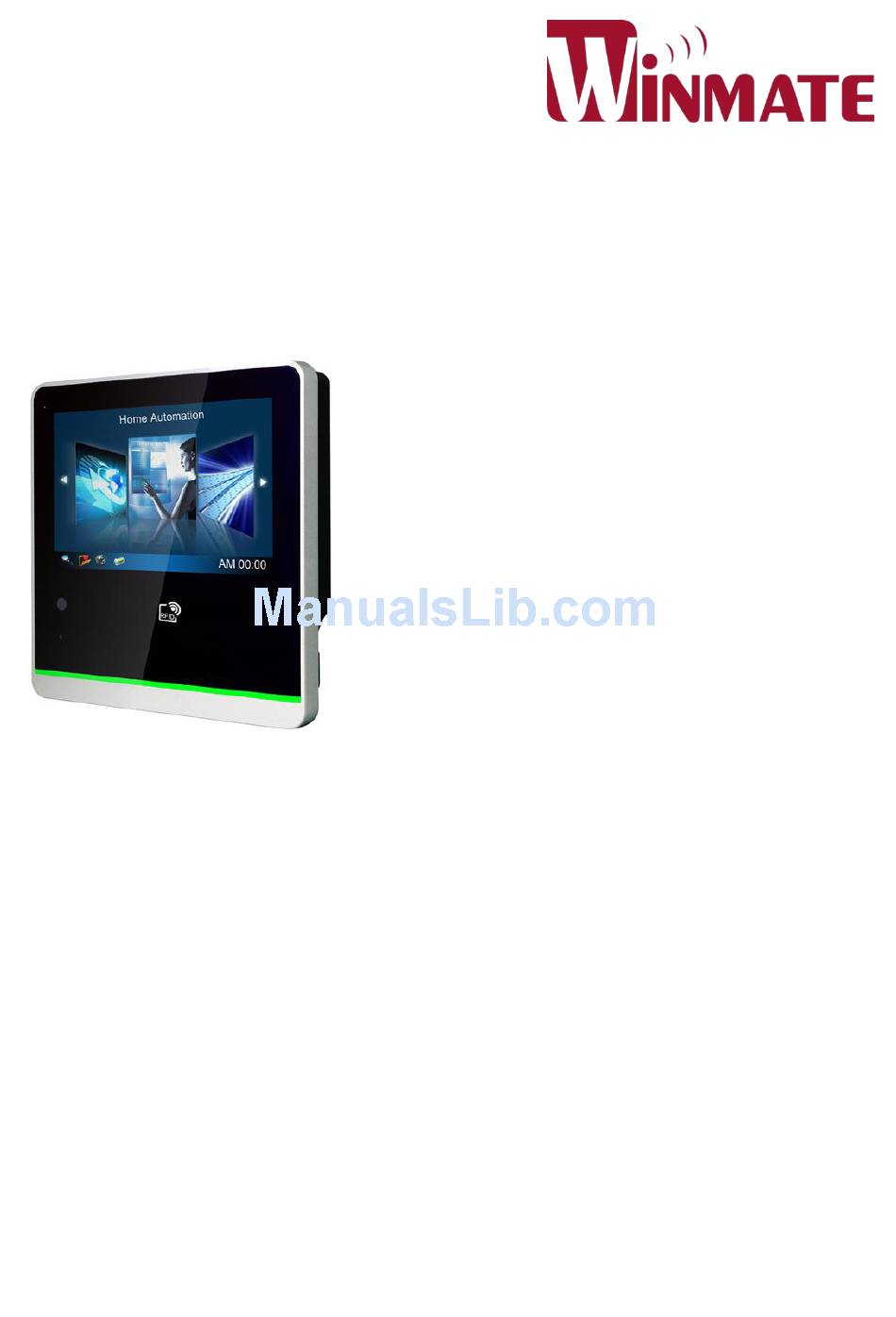

- Page 1 5” S-Series HMI W05TA3S-PCT3AC Quick Start Guide V1.0 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
Location and Interface Testing LED Light Bar Testing HF RFID Reader HF RFID Reader Introduction Scanning HF RFID Tag Testing DIDO Software Developer Support Software System Diagram Winmate Software Development Kit Technical Specifications HMI Device Specifications HF RFID Reader Specifications... -
Page 3: Getting Started
Winmate® 5” S-Series HMI powered by TI Cortex® A8 AM3354 1GHz with DSP processor and support Android 4.4 operating systems. The HMI device features P- Cap touch-screen. In addition, the HMI device model supports an exceptional feature - LED Light Bar. -
Page 4: Unpacking
Unpacking Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Accessories Standard factory shipment list: Quick Start Guide 5”... -
Page 5: Description Of Parts
Description Of Parts Front Side: 5” 800*480 LED panel with PCAP Touch Screen 2MP Camera RFID Reader LED Light bar Rear Side: Speaker Kensington Lock Please read these instructions carefully before using this product, and save this guide for future use. - Page 6 I/O Side: USB A Type SD Card Slot Backlight Switch Button DC 12V in LAN / PoE Digital I/O Dimensions:...
-
Page 7: Connector Description
Connector Description DC Input Connector DC terminal block power source input is a 3-pin terminal block that has to be secured with screws to the HMI device housing Pin No. Symbol Description VIN+ 12V DC Input + VIN- 12V DC Input - Ground Minimum Voltage 11.4V Maximum Voltage 12.6V... -
Page 8: Digital Input / Output Connector
Digital Input / Output Connector Digital Input and Output 2 in / 2 out (one 12V/1A for electromagnetic lock). Name Name № № DO_COM Digital output: Open drain to 40V ; Maximum load 2.0A Digital input: Voltage Level 0: close to GND; Level 1: 2.5~12V Go Refer to Testing DIDO section in this guide to test the DIDO functions. -
Page 9: Turning On Or Off
Turning On or Off Turning ON Follow the following steps to turn on your device: 1. Connect the power cable to AC to DC adapter. 2. Connect the open wire of AC to DC adapter to the terminal block female connector and tighten the screws to secure it to the HMI device. -
Page 10: Turning Off
Turning OFF Remove the power input to shut down the device. Press this button to turn the backlight off, press again to turn the backlight on. Backlight Control Button... -
Page 11: Using Camera
Using Camera Winmate® 5” S-Series HMI has a built-in front camera, which allows you to take photos and record video clips. Using Camera 1. Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video. -
Page 12: Opening The Gallery
4. Tap button to change camera setting such as exposure and so on. Opening the Gallery 1. Tap the launcher and then tap Gallery 2. Tap a folder to view the pictures or video inside in full screen mode. 3. Flick the pictures left or right to view the previous or next pictur... -
Page 13: Tars Test Application
TARS Test Application The HMI device comes with pre-installed application – “TARS Test” for testing main features such as LED Light Bar, DIDO and HF RFID. Location and Interface To open the application, go to all APPS menu, then tap TARS Test icon. -
Page 14: Testing Led Light Bar
The 5” S-Series HMI equipped with LED Light Bar located on the bottom front side of the device. Users can test this feature with TARS Test APP developed by Winmate. 1. Go to all APPS menu, then tap TARS Test icon. -
Page 15: Testing Hf Rfid Reader
Testing HF RFID Reader HF RFID Reader Introduction HF RFID is an initial of Radio Frequency Identification, which is also called electrical tag. The principle of RFID is to tag the target by radio frequency and process the data reading and transporting instead of mechanic and optical contact. -
Page 16: Testing Dido
2. While TARS Test application is open, bring a card close to the RFID icon on the front side of the HMI device. Number Description XXXXXXXXXXXXXABCDEF Displays the information written in the card Testing DIDO 1. Go to all APPS menu, then tap TARS Test icon. -
Page 17: Software Developer Support
Software Developer Support Software System Diagram This diagram describes the software system of Winmate® 5” S-Series HMI. Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for 5” S-Series HMI. Devices... -
Page 18: Technical Specifications
Technical Specifications HMI Device Specifications Model Name W05TA3S-PCT3AC 5” TFT (LED Backlight) Size Pixel Pitch 0.045 (H) x 0.135 (V) Resolution 800 x 480 Luminance Display 300 (typ.) Specification Contrast Ratio 500 : 1 (typ.) Viewing Angle -70~70(H),-50~70(V) Touch PCAP Multi-Touch support 5 points TI Cortex®... - Page 19 Power 10W (w/o DIDO Device) Consumption Mechanical Dimensions 138 x 138 x 29 mm Specifications (W x L x H) Mounting VESA Mount (75 x 75 mm) Cooling System Fanless design Environmental Operating Temp. 0°C ~ +55°C Considerations Humidity 10% ~ 90% (non-condensing, RH) IP Proof IP54 (Front side) Please read these instructions carefully before using this product, and save this guide for future use.
-
Page 21: Hf Rfid Reader Specifications
HF RFID Reader Specifications HF RFID Reader Specifications Part Number RF-521 RF Transmit Frequency 13.56MHz F/W version V1.00B / V1.03 Supported Transponder ISO 15693 (R/W) ISO 14443-A( R/W) ISO 14443-B (Read UID) ISO18092 (R/W) Power Supply DC 5V Power Consumption Operating: 80mA (max) Standby: 4mA Communication Protocol... - Page 22 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: http://www.winmate.com.tw...
