Explanation of Key Attributes

The following table lists the descriptions of key attributes of the WT-BAC-IP Gateway.
Table 2: WT-BAC-IP Key Attributes
Attribute
WT-BAC-IP Version
MAC Address
Port
Device Instance
Point Map
Online Device Count
Wireless Network Info
Connection Mode

Technical Specifications

WT-BAC-IP Gateway
Power Requirements
Communications
Wireless Band
Operating Frequency
Range
Channels
Transmissions
Ambient Conditions
Materials
Description
Version level for the BACnet application software
Unique 12-Digit HEX address for the WT-BAC-IP
UDP Port (default value 47808); editable if changes are necessary
BACnet Instance ID; can be modified
View shows currently mapped BACnet objects. Create maps currently connected devices
and creates a new Point Map.
View shows the Grid View of currently connected devices. Update refreshes the count to
check for newly connected devices.
Shows information about the WT-BAC-IP's GID, DID, and Channel; all three fields are
editable.
Allows the user to switch the WT-BAC-IP between DHCP and Static IP Addressing

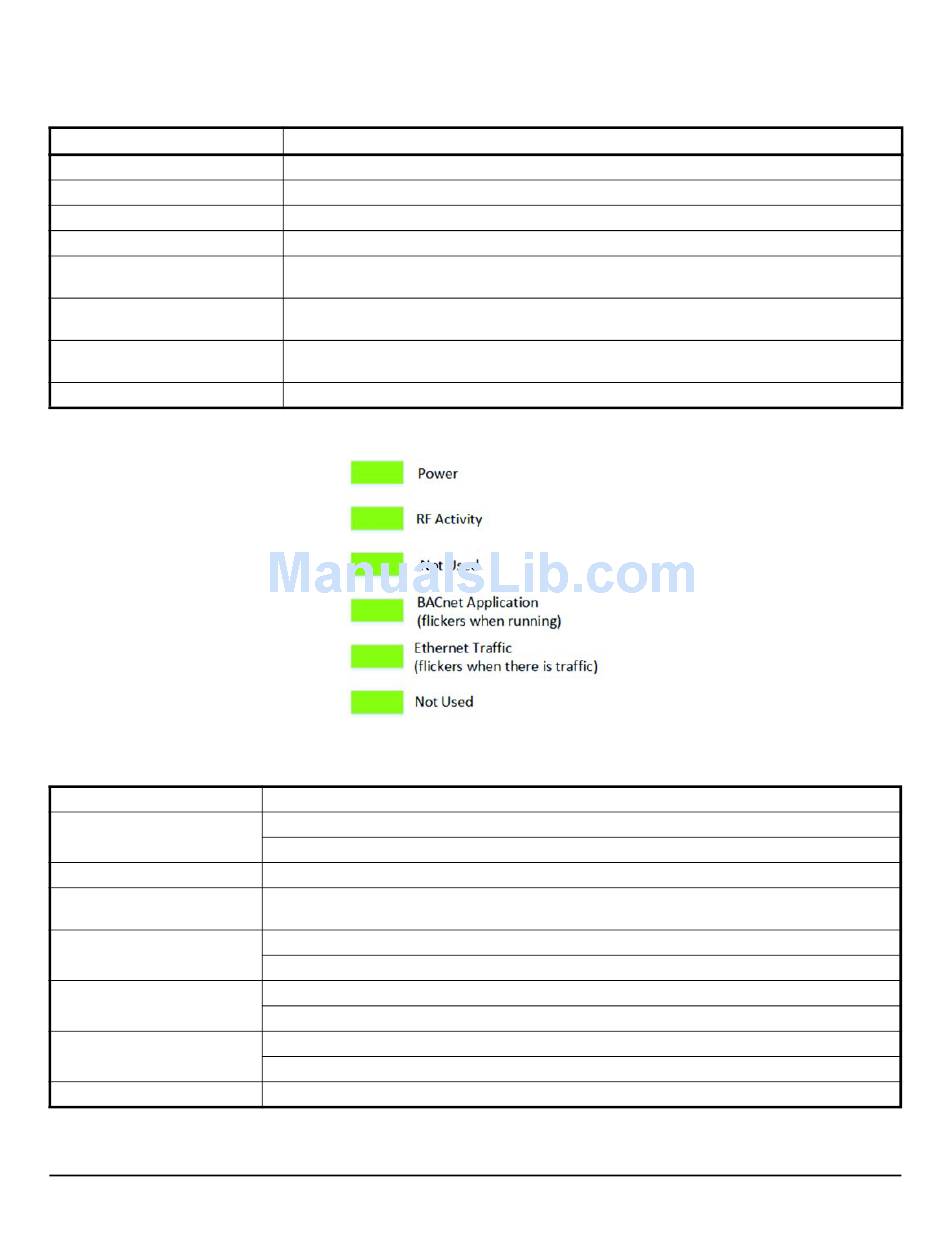

Figure 10: WT-BAC-IP LED Functions
)
(Part 1 of 2
12 VDC external supply
Interface: Ethernet 10Base-T/100Base-TX with RJ-45 Connector
Protocol: BACnet IP
Direct-Sequence, Spread-Spectrum, 2.4 GHz ISM Band
2,405 to 2,480 MHz
Quantity: 15
Spacing: 5 MHz
Power: 18 dBm maximum
Rate: 250 Kbits for each second
Operating: 50 to 104°F (10 to 40°C), 5 to 95% RH, noncondensing
Storage: -4 to 158°F (-20 to 70°C), 5 to 95% RH, noncondensing
Gray ABS plastic housing
WT-BAC-IP Gateway Installation Instructions
