Johnson Controls Airwall Gateway 175 Installation Manual

Introduction
The Airwall Gateway 175 is a five-port gateway that
protects and connects your edge devices. Use this
guide to set up basic network connectivity for an Airwall
Gateway 175 and provision the gateway on the Airwall
Conductor. The Conductor is the central configuration and
management point for your Airwall secure network, and
manages trust between devices and Airwall Gateways on
your network.
Parts
Included:
• Airwall Gateway 175
• Power supply
• DIN rail mounting clips
• Screws
Optional: Two Wi-Fi antennas
•
• Optional: Two cellular antennas
Not included:
• Micro-USB to USB cable
• Network cables
Mounting
About this task:
To mount the Airwall Gateway, complete the following
steps:
1. Remove the Airwall Gateway from the packaging.
2. Optional: If equipped, screw in the two Wi-Fi
antennas to the connectors closest to the front
panel.
3. Optional: If equipped, screw in the two cellular
antennas to the connectors closest to the back
panel.
4. Fit the DIN rail mounting clips on to the side rails
of the Airwall Gateway and mount the Airwall
Gateway on a DIN rail. Alternatively, screw the
Airwall Gateway directly to the wall using the side
flange screw holes.
Note: Allow 250 mm space on DIN rail for the
Airwall Gateway.
Airwall Gateway 175 Installation Guide
Panels

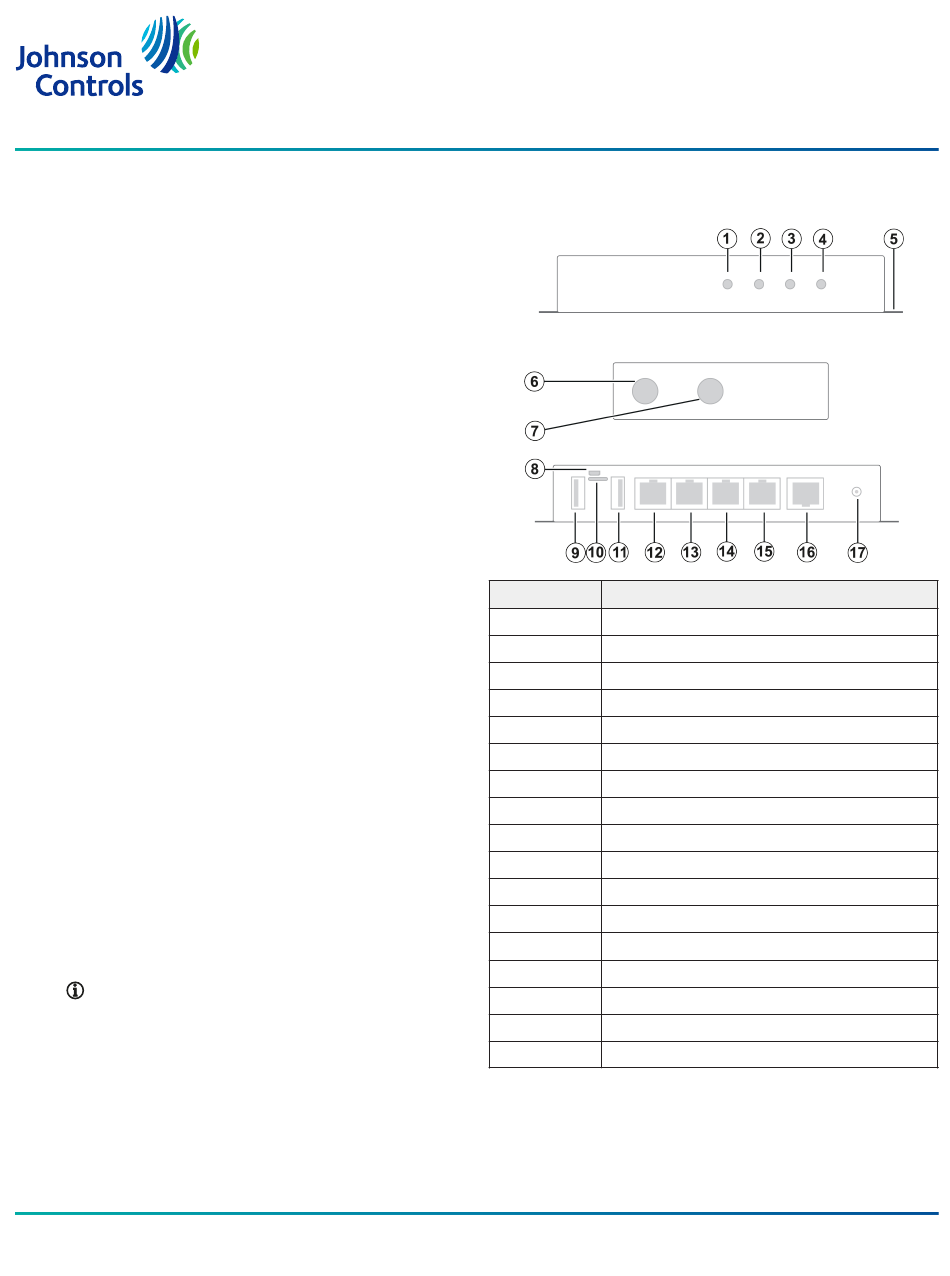

Figure 1: Front, side, and back panels
Callout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Description
Wi-Fi LED, yellow
Fault LED, red
Status LED, green
Cellular LED, blue
Mounting flange with screw holes
Connector for Wi-Fi antenna
Connector for cellular antenna
Micro-USB port
USB port, not supported
SIM drawer
USB port, not supported
Port 1: WAN
Port 2: LAN
Port 3: LAN
Port 4: LAN
Port 5: LAN, PoE (Power over Ethernet)
12 V DC jack
LIT-12001453
Release 3.5.1
2024-07-15
