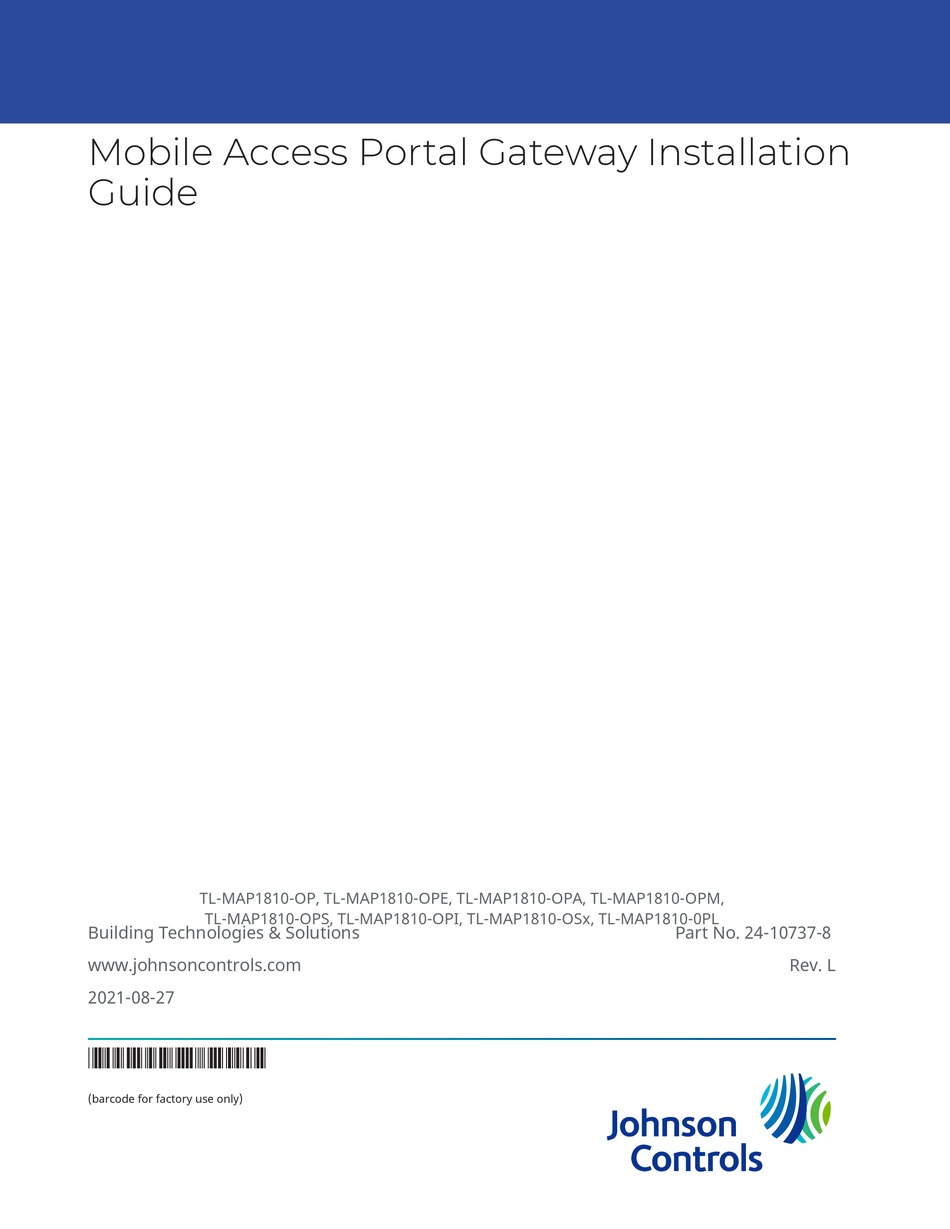

Mobile Access Portal Gateway Installation
Guide
TL-MAP1810-OP, TL-MAP1810-OPE, TL-MAP1810-OPA, TL-MAP1810-OPM,
TL-MAP1810-OPS, TL-MAP1810-OPI, TL-MAP1810-OSx, TL-MAP1810-0PL
Building Technologies & Solutions
Part No. 24-10737-8
www.johnsoncontrols.com
Rev. L
2021-08-27
*24107378L*
(barcode for factory use only)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-MAP1810-OP and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls TL-MAP1810-OP

  • Page 1 Mobile Access Portal Gateway Installation Guide TL-MAP1810-OP, TL-MAP1810-OPE, TL-MAP1810-OPA, TL-MAP1810-OPM, TL-MAP1810-OPS, TL-MAP1810-OPI, TL-MAP1810-OSx, TL-MAP1810-0PL Building Technologies & Solutions Part No. 24-10737-8 www.johnsoncontrols.com Rev. L 2021-08-27 *24107378L* (barcode for factory use only)
  • Page 2 Mobile Access Portal Gateway Installation Guide...
  • Page 3: Table Of Contents

    Contents Introduction..............................5 North American Emissions Compliance......................6 United States............................6 Canada..............................6 Installation................................ 6 Parts Included (Portable Model)......................6 Parts Included............................7 Special Tools Needed..........................7 Portable Use..............................7 Mounting................................9 Permanent Mounting..........................9 Location Considerations........................9 Locking Screw (Stationary Unit Only)....................9 Permanent Mounting Locations......................
  • Page 4 Mobile Access Portal Gateway Installation Guide...
  • Page 5: Introduction

    Introduction The Mobile Access Portal (MAP) Gateway is an alternate local display solution or a temporary portable commissioning device that enables you to leverage the power of mobility using smart phones, tablets, or laptop computers to interact with building automation equipment controls. The MAP Gateway serves up web pages through a built-in Wi-Fi access point or a tethered Ethernet connection, which allows users to view and edit equipment controller configuration parameters, setpoints, schedules, and alarms through a browser.
  • Page 6: North American Emissions Compliance

    North American Emissions Compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
  • Page 7: Parts Included

    • Installation Instructions • Mobile Access Portal Gateway Quick Start Guide (Part No. 24-10737-16) Parts Included • MAP Gateway • Field bus adapter • Mounting bracket (with locking screw) • Mobile Access Portal Gateway Quick Start Guide (Part No. 24-10737-16) Special Tools Needed To use the MAP Gateway, you need a mobile device (tablet or smartphone) or computer (laptop or desktop) that supports Wi-Fi.
  • Page 8 • The MAP Gateway has not been designed for prolonged outdoor use. Leaving it in outdoor environments (such as inside rooftop units) may result in damage. • Objects (including ductwork, cabinets, doors, and glass) can impede the wireless signal. Minimize the number of objects between the connected computer or mobile device and the MAP Gateway.
  • Page 9: Mounting

    Mounting Permanent Mounting When used in a stationary configuration, the MAP Gateway is permanently mounted using the provided bracket with the stationary MAP Gateway. We recommend the following three ways to mount the unit: vertically (upright and flush), horizontally (sideways and flush), or perpendicularly (perpendicular to the wall).
  • Page 10: Permanent Mounting Locations

    Permanent Mounting Locations The mounting bracket can be attached to a 35 mm (1-1/8 in.) DIN rail or a flat, vertical surface. Mounting the unit on a ceiling or in a way that positions the front of the unit facing down is not recommended.
  • Page 11 Figure 4: Sample Permanent Mounting, Back-side Screws Figure 5: Sample Permanent Mounting, Side Screws Figure 6: Sample Permanent Mounting, DIN Rail Screw Holes To mount the bracket on a flat surface (such as a wall): Pull the bottom mounting clip outward to the extended position. Mark mounting hole locations on the wall using the dimensions shown in Figure 7, Figure 8, or Figure 9;...
  • Page 12 Note: The position of the location holes depends on whether the bracket is mounted horizontally or vertically. Figure 7: Mounting Holes, Flat Mounting Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Mobile Access Portal Gateway Installation Guide...
  • Page 13 Figure 8: Mounting Holes, Side Mounting Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Mobile Access Portal Gateway Installation Guide...
  • Page 14: Wiring

    Figure 9: Mounting Holes, Flat Mounting, DIN Rail Screws Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Drill holes in the wall based on the locations marked in the preceding step, and insert wall anchors for each hole (if necessary).
  • Page 15: Sa/Fc Port

    • Provide some slack in the cable between the MAP Gateway and the controller or other device to which you are connecting. SA/FC Port The MAP Gateway has one RS-485 FC/SA bus port that connects through a supplied 6-pin modular jack and cable assembly.
  • Page 16: Ethernet Port

    Table 1: USB Port Pin Designations Pin Number (Both Signal Name Ends of Cable) +5 VDC Data - Data + No Connection Ground Ethernet Port The Ethernet port on the MAP Gateway is an 8-pin RJ-45 jack. The maximum allowable cable length is 100 m (328 ft).
  • Page 17: Operation

    WARNING Risk of Electric Shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnection or isolation may be required to completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death.
  • Page 18 If the MAP Gateway is connected through the FC bus (point B on Figure 12), it has access to SE devices on that FC bus only when the FC bus protocol is BACnet MSTP. For individual units connected to the FC bus network, the FcBusMode is set to Wired Field Bus (BACnet MSTP) in the UCB display menu.
  • Page 19: Connecting To The Map Gateway Wi-Fi Network

    Connecting to the MAP Gateway Wi-Fi Network Important: If you are going to use the MAP Gateway on Ethernet, you must plug it into external power before you attach the field bus adapter. Connect the FC/SA port of the MAP Gateway to the sensor bus or field busport of the equipment controllerusing the supplied RJ-12 cable (portable model) or field bus adapter (stationary model) (Figure 13).
  • Page 20: Reset Button Operation And Descriptions

    Network Reset function that resets Wi-Fi and Ethernet settings, and a Reset to Factory Defaults function that resets all unit settings (including user profiles). Reset to Factory Defaults also resets your SSL certificate to the Johnson Controls self-signed certificate that ®...
  • Page 21 Figure 14: Using the Reset Button Mobile Access Portal Gateway Installation Guide...
  • Page 22: Status Indication Leds

    Table 2: Reset Button Operation and Descriptions Reset Function Reset Operation Reset Wi-Fi and Press and hold the reset button for 2 seconds. The Fault LED Ethernet Settings displays Slow Flicker behavior. (Network Reset) Release the reset button within 3 seconds. The Fault LED continues Slow Flicker behavior.
  • Page 23: Map Gateway Led Designations And Descriptions

    MAP Gateway LED Designations and Descriptions Table 3: LED Designations and Descriptions LED Name Color Normal Descriptions/Other Conditions Power Green On Steady (no Off = No power flashing) On Steady = Power supplied by primary voltage Fault Off = No faults/normal operation On Steady = Missing hardware, missing software, operating system has not yet initialized, or reset is in...
  • Page 24: Repair Information

    If the MAP Gateway fails to operate within its specifications, replace it. The MAP Gateway is not a serviceable product; however, it does support software updates to enable feature enhancements. For a replacement unit, software updates, or accessories, contact the nearest Johnson Controls representative.
  • Page 25: Accessories (Order Separately)

    Table 4: Launch Issues Troubleshooting Information Problem Resolution Reason When I install the SSL key or certificate, I receive the When an SSL key or certificate is very corrupted, the SSL page message Error Saving SSL detects it and alerts you to the corrupted key or certificate. Settings.
  • Page 26: Technical Specifications

    Technical Specifications Table 6: MAP Gateway Specification Description Product Code TL-MAP1810-OP, TL-MAP1810-OPE, TL-MAP1810-OPA:,TL-MAP1810- OPL, TL-MAP1810-0PM, TL-MAP1810-0PS, TL-MAP1810-0PI: Portable MAP Gateway - includes MAP Gateway, RJ-12 cable, bumper guard, and lanyard. TL-MAP1810-0Sx: Stationary MAP Gateway - includes MAP Gateway, field bus adapter, mounting bracket, and AC power supply. (Adapters for the power supply may vary by country.)
  • Page 27 SELV; Class 2 or LPS (Limited Power Source) ITE Equipment Power if module is provided/ Supply shipped with power Terminal J1: supply) Intended for connection to Johnson Controls field controllers supporting the standard JCI SA Bus implementation Mobile Access Portal Gateway Installation Guide...
  • Page 28 IC: RSS-210 cUL Listed File E107041, CAN/CSA E60730-1, Automatic Electrical Controls Europe: CE Mark—Johnson Controls declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Directive (RED), LVD Directive, and the EMC Directive.
  • Page 29: Product Warranty

    The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
  • Page 30 © 2021 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice.
