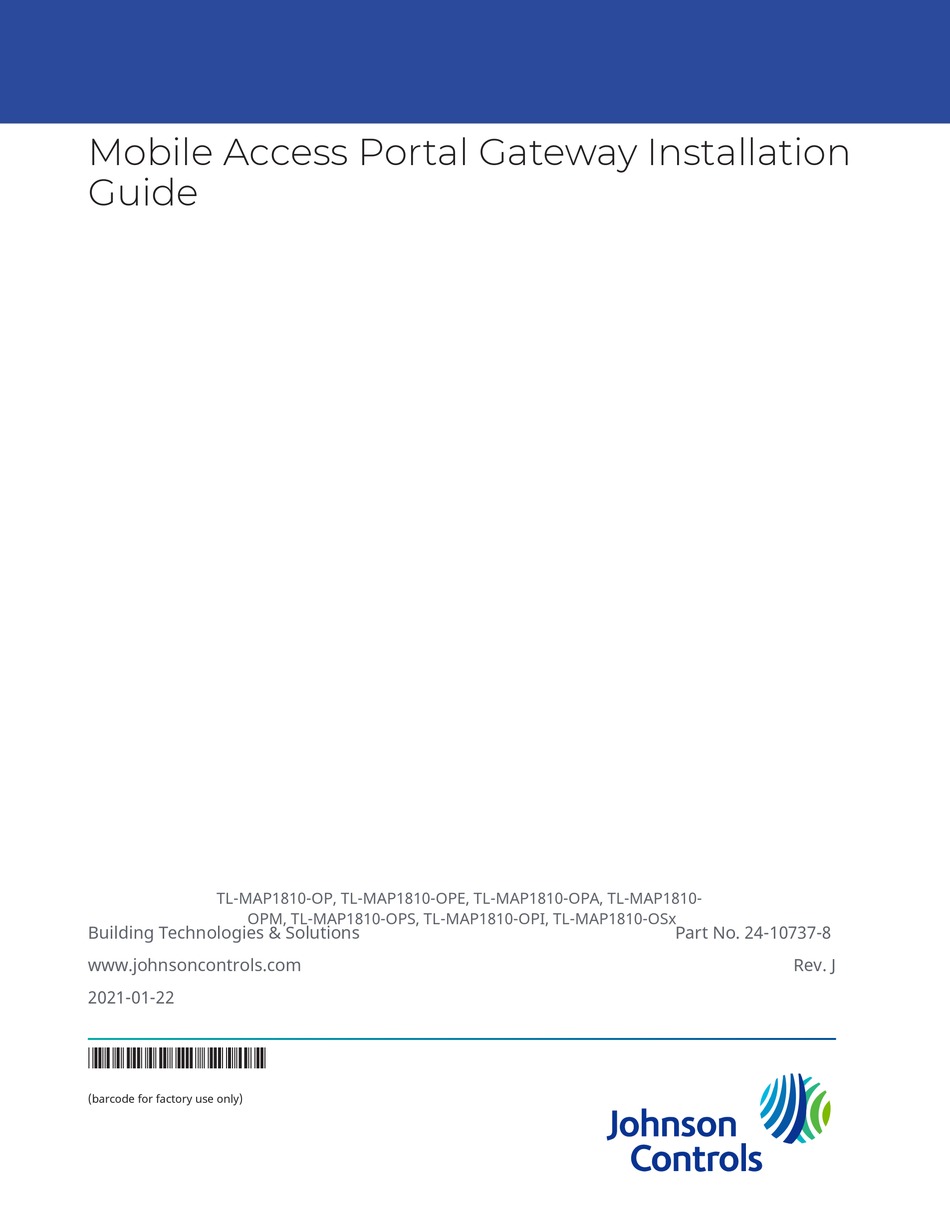

- Page 1 Mobile Access Portal Gateway Installation Guide TL-MAP1810-OP, TL-MAP1810-OPE, TL-MAP1810-OPA, TL-MAP1810- OPM, TL-MAP1810-OPS, TL-MAP1810-OPI, TL-MAP1810-OSx Building Technologies & Solutions Part No. 24-10737-8 www.johnsoncontrols.com Rev. J 2021-01-22 *24107378J* (barcode for factory use only)
- Page 2 Mobile Access Portal Gateway Installation Guide...
-
Page 3: Table Of Contents
Contents Introduction..............................5 North American Emissions Compliance...................... 6 United States............................6 Canada..............................6 Installation..............................6 Parts Included (Portable Model)....................... 6 Parts Included............................7 Special Tools Needed.......................... 7 Portable Use..............................7 Mounting................................. 9 Permanent Mounting.......................... 9 Location Considerations........................9 Locking Screw (Stationary Unit Only)..................... 10 Permanent Mounting Locations...................... - Page 4 Mobile Access Portal Gateway Installation Guide...
-
Page 5: Introduction
Introduction The Mobile Access Portal (MAP) Gateway is an alternate local display solution or a temporary portable commissioning device that enables you to leverage the power of mobility using smart phones, tablets, or laptop computers to interact with building automation equipment controls. The MAP Gateway serves up web pages through a built-in Wi-Fi access point or a tethered Ethernet connection, which allows users to view and edit equipment controller configuration parameters, setpoints, schedules, and alarms through a browser. -
Page 6: North American Emissions Compliance
North American Emissions Compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. -
Page 7: Parts Included
• Protective shell • 6-pin RJ-12 connector cable • Lanyard • Installation Instructions • Mobile Access Portal Gateway Quick Start Guide (Part No. 24-10737-16) Parts Included • MAP Gateway • Field bus adapter • Mounting bracket (with locking screw) • Mobile Access Portal Gateway Quick Start Guide (Part No. 24-10737-16) Special Tools Needed To use the MAP Gateway, you need a mobile device (tablet or smartphone) or computer (laptop or desktop) that supports Wi-Fi. - Page 8 Observe the following guidelines when using a portable MAP Gateway: • Do not use the RJ-12 cable to support the weight of the MAP Gateway. Use the lanyard to support it. • Keep the MAP Gateway in the protective shell with which it ships. To insert the MAP Gateway into the shell, stretch the shell edges and slide the MAP Gateway unit into place (Figure 1).
-
Page 9: Mounting
Figure 1: Portable MAP Gateway and Protective Shell Mounting Permanent Mounting When used in a stationary configuration, the MAP Gateway is permanently mounted using the provided bracket with the stationary MAP Gateway. We recommend the following three ways to mount the unit: vertically (upright and flush), horizontally (sideways and flush), or perpendicularly (perpendicular to the wall). -
Page 10: Locking Screw (Stationary Unit Only)
Locking Screw (Stationary Unit Only) Regardless of which mounting configuration is used, a locking screw is used to secure the unit into the mounting bracket. Do not overtighten the locking screw. Figure 2: Stationary Mounting with Locking Screw Permanent Mounting Locations The mounting bracket can be attached to a 35 mm (1-1/8 in.) DIN rail or a flat, vertical surface. - Page 11 Figure 3: Positioning the Bracket on a DIN Rail Hang the bracket on the DIN rail by the hooks at the top of the DIN rail channel (on the back of the bracket), and position the bracket snugly against the DIN rail. Push the bottom DIN (mounting) clip inward to secure the mounting bracket on the DIN rail.
- Page 12 Figure 5: Sample Permanent Mounting, Side Screws Figure 6: Sample Permanent Mounting, DIN Rail Screw Holes To mount the bracket on a flat surface (such as a wall): Pull the bottom mounting clip outward to the extended position. Mark mounting hole locations on the wall using the dimensions shown in Figure 7, Figure 8, or Figure 9;...
- Page 13 Figure 7: Mounting Holes, Flat Mounting Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Mobile Access Portal Gateway Installation Guide...
- Page 14 Figure 8: Mounting Holes, Side Mounting Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Mobile Access Portal Gateway Installation Guide...
- Page 15 Figure 9: Mounting Holes, Flat Mounting, DIN Rail Screws Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws. Drill holes in the wall based on the locations marked in the preceding step, and insert wall anchors for each hole (if necessary). Hold the bracket in place, insert the screws through the mounting clips and into the screw holes, and then carefully tighten all screws.
-
Page 16: Wiring
Wiring Wiring Consideration and Guidelines Observe the following guidelines when wiring the MAP Gateway: • Do not allow the MAP Gateway to hang from a cable connection. • Provide some slack in the cable between the MAP Gateway and the controller or other device to which you are connecting. -
Page 17: Ethernet Port
updates using the USB port. When the MAP Gateway is connected and powered from the USB port, FC/SA bus functions are not available. Note: The USB connection on the MAP Gateway is not designed for constant use. The USB port should be used only when needed. -
Page 18: Operation
WARNING Risk of Electric Shock. Disconnect or isolate all power supplies before making electrical connections. More than one disconnection or isolation may be required to completely de-energize equipment. Contact with components carrying hazardous voltage can cause electric shock and may result in severe personal injury or death. - Page 19 connected to the FC bus network, the FcBusMode is set to Wired Field Bus (BACnet MSTP) in the UCB display menu. The MAP Gateway can be connected to the FC bus through the RJ-12 connector on the Field Bus card of the smart equipment. Or, using an RJ-12 to Terminal Block Adapter (MP- STAFBA-0), you can connect the MAP Gateway directly to the field bus.
-
Page 20: Connecting To The Map Gateway Wi-Fi Network
Connecting to the MAP Gateway Wi-Fi Network Important: If you are going to use the MAP Gateway on Ethernet, you must plug it into external power before you attach the field bus adapter. Connect the FC/SA port of the MAP Gateway to the sensor bus or field busport of the equipment controllerusing the supplied RJ-12 cable (portable model) or field bus adapter (stationary model) (Figure 13). -
Page 21: Reset Button Operation And Descriptions
Network Reset function that resets Wi-Fi and Ethernet settings, and a Reset to Factory Defaults function that resets all unit settings (including user profiles). Reset to Factory Defaults also resets your SSL certificate to the Johnson Controls self-signed certificate that ®... - Page 22 Figure 14: Using the Reset Button Mobile Access Portal Gateway Installation Guide...
-
Page 23: Status Indication Leds
Table 2: Reset Button Operation and Descriptions Reset Function Reset Operation Press and hold the reset button for 2 seconds. The Fault LED displays Slow Flicker behavior. Release the reset button within 3 seconds. The Fault LED continues Slow Flicker behavior. Press and immediately release the reset button to confirm that you Reset Wi-Fi and wish to reset Wi-Fi and Ethernet settings. -
Page 24: Map Gateway Led Designations And Descriptions
MAP Gateway LED Designations and Descriptions Table 3: LED Designations and Descriptions LED Name Color Normal Descriptions/Other Conditions Off = No power On Steady (no Power Green On Steady = Power supplied by flashing) primary voltage Off = No faults/normal operation On Steady = Missing hardware, missing software, operating system has not yet initialized, or reset is in... -
Page 25: Repair Information
If the MAP Gateway fails to operate within its specifications, replace it. The MAP Gateway is not a serviceable product; however, it does support software updates to enable feature enhancements. For a replacement unit, software updates, or accessories, contact the nearest Johnson Controls representative. -
Page 26: Troubleshooting
Troubleshooting Table 4: Launch Issues Troubleshooting Information Problem Resolution Reason Device behavior can vary based on the device and Internet browser You are not directed to the in use. For instance, some devices cache browser information and MAP Gateway login page do not automatically redirect users to the MAP Gateway login page when you launch a web when the browser is launched. -
Page 27: Accessories
Table 4: Launch Issues Troubleshooting Information Problem Resolution Reason The MAP Gateway requires an external power supply. The LC IOM2723, IOM3733, and IOM3723 only have a 4 pin plug terminal that does not provide power. When I connect a MAP Gateway to an LC IOM, it Resolution does not power on. -
Page 28: Technical Specifications
Technical Specifications Table 6: MAP Gateway Specification Description Product Code TL-MAP1810-OP, TL-MAP1810-OPE, TL-MAP1810-OPA:TL-MAP1810- OPA, TL-MAP1810-0PM, TL-MAP1810-0PS, TL-MAP1810-0PI: Portable MAP Gateway - includes MAP Gateway, RJ-12 cable, bumper guard, and lanyard. TL-MAP1810-0Sx: Stationary MAP Gateway - includes MAP Gateway, field bus adapter, mounting bracket, and AC power supply. (Adapters for the power supply may vary by country.) - Page 29 Table 6: MAP Gateway Specification Description Wi-Fi Transmission Wi-Fi Wireless Communication: Range (Typical) 30 m (100 ft) line-of-sight indoors; however, a typical indoor range in an area with obstacles is 15 m (50 ft). 91 m (300 ft) line-of-sight outdoors WLAN Range Performance: 0–50 ft = Excellent 50–100 ft = Good...
- Page 30 IC: RSS-210 cUL Listed File E107041, CAN/CSA E60730-1, Automatic Electrical Controls Europe: CE Mark—Johnson Controls declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Directive (RED), LVD Directive, and the EMC Directive.
-
Page 31: Product Warranty
The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products. -
Page 32: Single Point Of Contact
GERMANY CHINA Contact information Contact your local branch office: www.johnsoncontrols.com/locations Contact Johnson Controls: www.johnsoncontrols.com/contact-us © 2021 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice.
