1. In the Wireless Network Info row of the WT-BAC-IP Configuration Tool, click Edit.
2. Modify the parameters as needed. The DID typically remains at the default 200.247 address.
3. Channels 15, 20, and 25 are recommended as they are between the Wi-Fi communication channels and are
the least susceptible to interference. Check for the best channel before choosing one for the system.

Mapping Connected Devices

Ensure that all WT-4000 Series Thermostats and WT Routers are installed and powered. The GID of devices to be
mapped into the WT-BAC-IP must match.
1. Click View. A grid appears that shows the currently connected devices by their DID. All DIDs in the grid are
currently connected to the gateway.
Note: WT-4000 Series thermostats take up to 5 minutes to appear in the grid.
2. Ensure that the DIDs of all the physically installed devices are present in the grid before proceeding to the next
step.
3. When all devices are connected, you can map their respective BACnet objects by clicking Create.
Note: The Create function creates only BACnet objects for devices that are currently connected. It does not
automatically update the point list when more devices are added. Perform the Create function and the mapping into
the building automation system (BAS) again if more devices are added at a later time.
4. After clicking Create, the dialogue box at the bottom of the tool confirms that the point map has been created.
You can review the point map by clicking View.

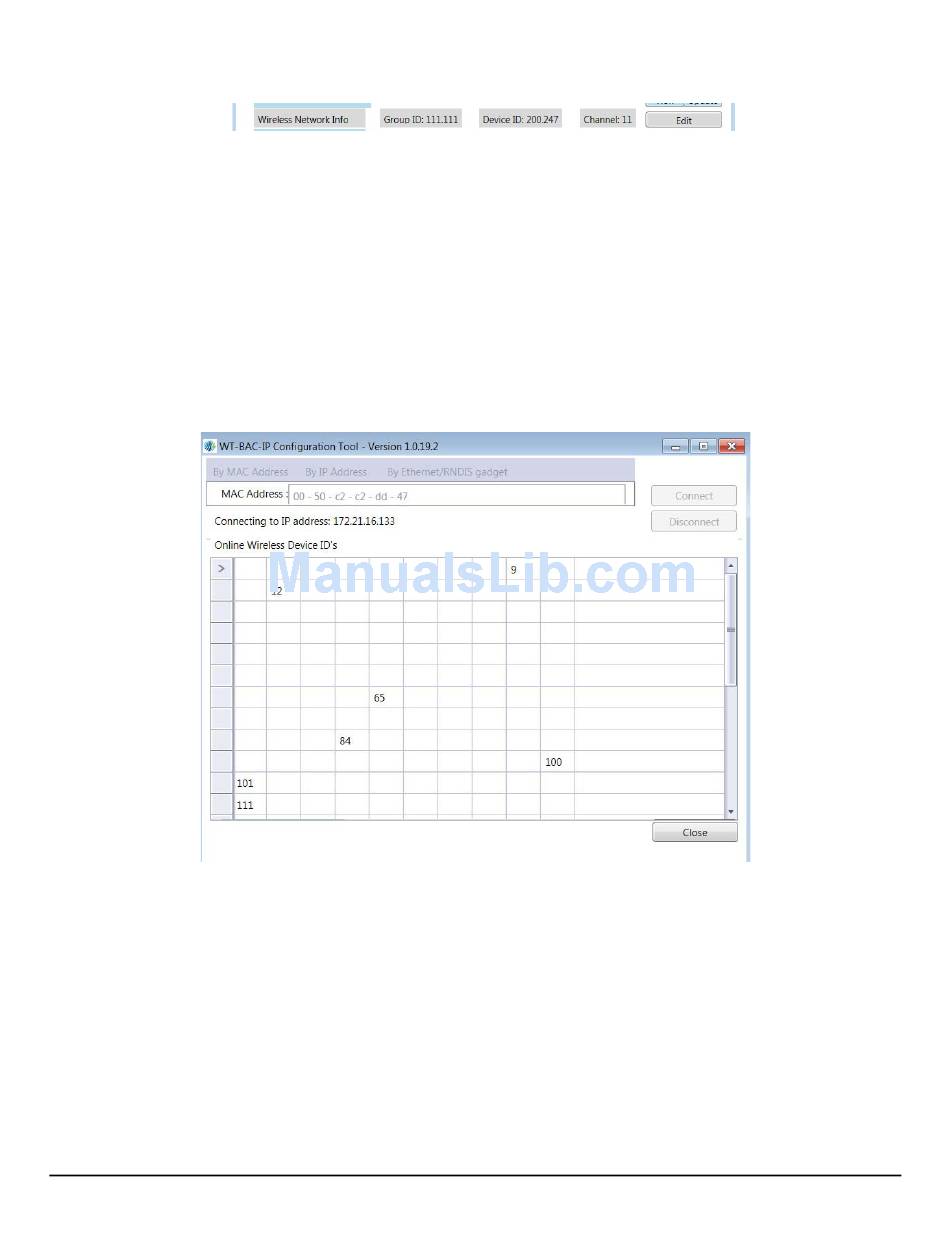

Figure 6: Wireless Network Info
Figure 7: Connected Devices Grid
