Johnson Controls WT-BAC-IP Installation Instructions Manual page 3

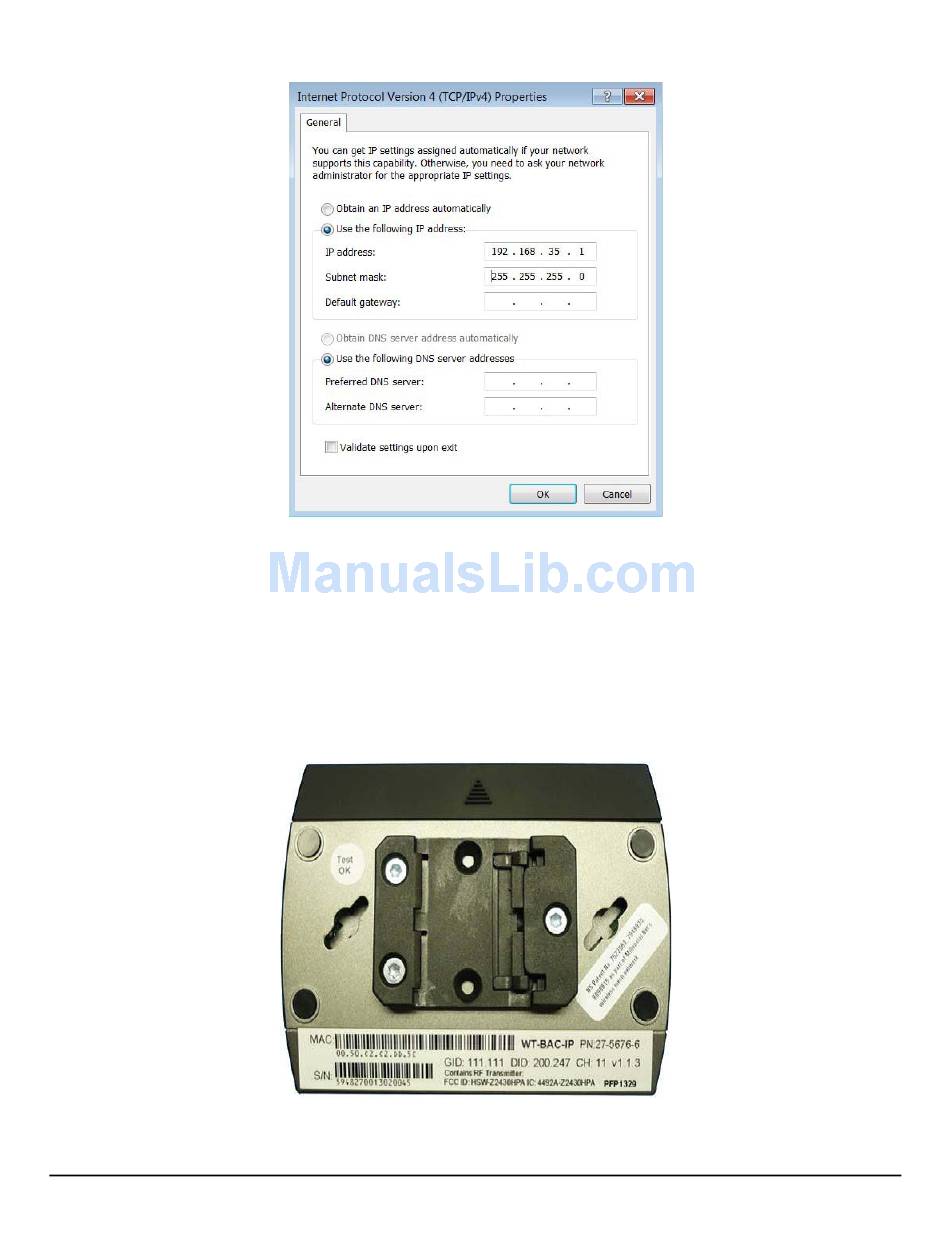

Figure 2: Internet Protocol Version 4 (TCP/IPv4) Properties Dialogue Box
Note: Return to the Internet Protocol Version 4 (TCP/IPv4) Properties dialogue box after the WT-BAC-IP is
installed. Click Obtain an IP address automatically. This option returns your computer back to standard Dynamic
Host Configuration Protocol (DHCP).
5. Connect an Ethernet cable from your computer to the WT-BAC-IP Gateway.
6. Plug the 12 VDC adapter into the WT-BAC-IP.
7. Open the WT-BAC-IP Configuration Tool program.
8. In the By MAC Address tab, type in the MAC address printed on the back of the WT-BAC-IP (in the upper left-
hand corner of the product label).
Figure 3: Back Side of the WT-BAC-IP
9. Click Connect in the upper right-hand corner of the display window.
