Mobile Access Portal Gateway Installation Instructions
Applications

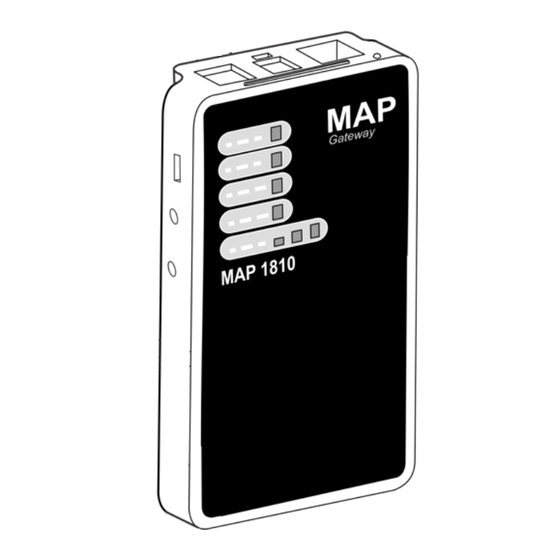

The Mobile Access Portal (MAP) Gateway is a local
display replacement solution that enables users to
leverage the power of mobility using smart phones,
tablets, or laptop computers to interact with building
automation equipment controls. The MAP Gateway serves
up web pages through a built-in Wi-Fi access point, which
allows users to view and in some cases edit equipment
controller configuration parameters, setpoints, schedules,
and alarms through a browser. A mobile application is
not required to use the MAP Gateway with your mobile
device.
The wireless connection on the MAP Gateway allows
users of a supported mobile device to be up to 30 m (100
ft, line of sight) away indoors and up to 91 m (300 ft, line
of sight) away outdoors. Power may be supplied via the
SAB (sensor/actuator bus), the FCB (field controller bus),
or a micro USB port.
When used as a portable device, the MAP Gateway can
be strung using a lanyard. In this configuration, the MAP
Gateway can be carried from site to site, depending on
the needs and workflow of field personnel.
Mobile Access Portal Gateway Installation Instructions
Refer to the QuickLIT website
North American Emissions
Compliance
United States
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area may cause harmful interference, in which
case the users will be required to correct the interference
at their own expense.
RF Transmitters: Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
RF Exposure (OET Bulletin 65)
To comply with FCC RF exposure requirements for
mobile transmitting devices, this transmitter should only
be used or installed at locations where there is at least
20 cm separation distance between the antenna and all
persons.

Industry Canada Statement

The term IC before the certification/registration number
only signifies that the Industry Canada technical
specifications were met.
Le terme « IC » précédant le numéro
d'accréditation/inscription signifie simplement que le
produit est conforme aux spécifications techniques
d'Industry Canada.
Part No. 24-10737-8, Rev. B
Software Release 2.0
Issued September 1, 2014
for the most up-to-date version of this document.
